AB-6546
11

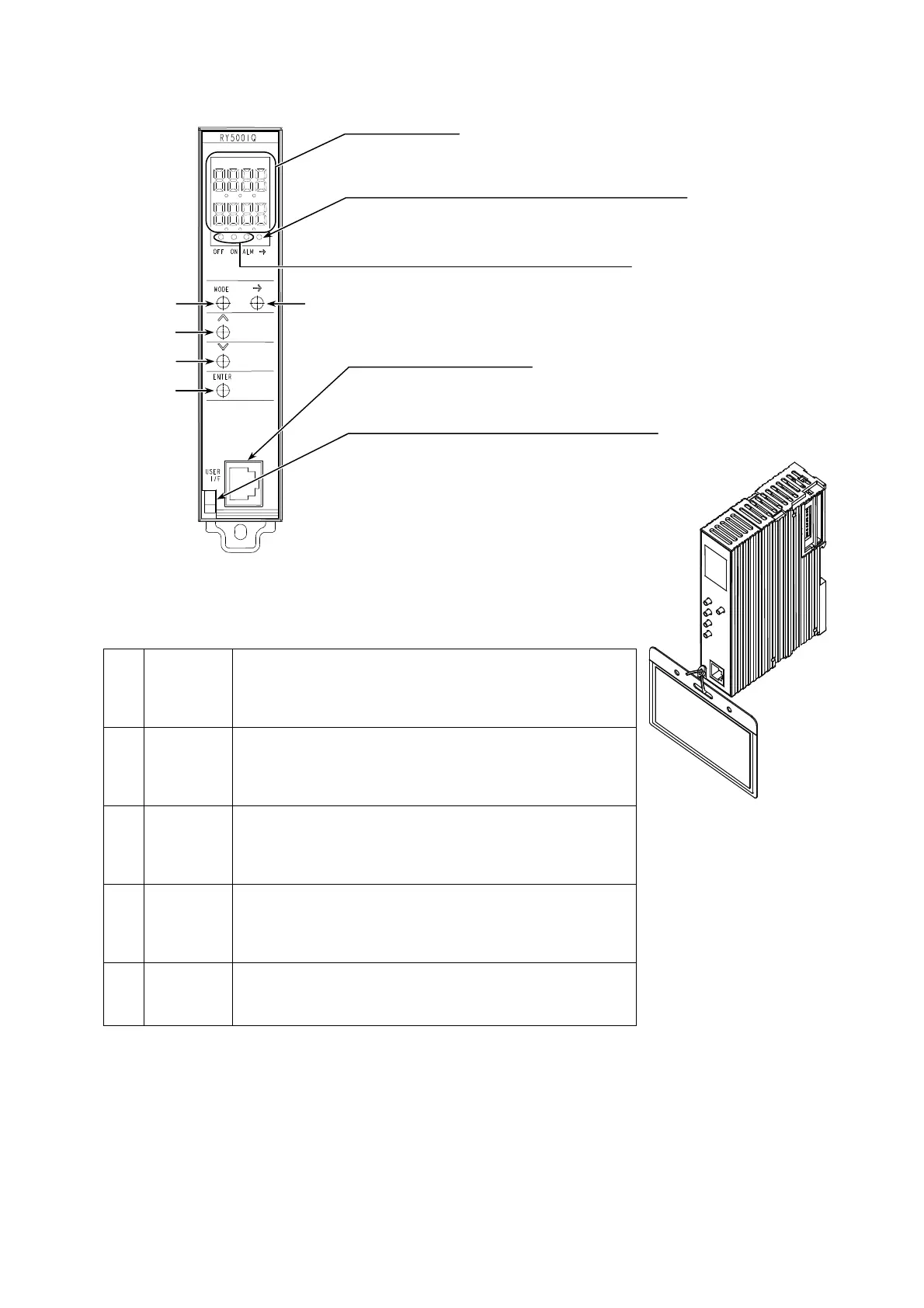

Parts Identification: Model RY5001Q0000 (Integral Type)
Figure 6. Parts identification: Model RY5001Q0000
(1) [MODE] key Changes over the point display modes (group-points modes (groups 1
to 4) and all-points mode).
When the Operator Panel is connected to a standalone remote unit,
changes over the schedule display/setting, and current day/time setting
modes.
(2) [∧] key Changes to display the point data to the previous point data.
For numeric data configuration, increases the selected numeric digit.
(The digit (0 to 9) ascends one by one. After 9, the digit returns to 0.)
For ON/OFF operation, switches OFF to ON.
For positive/negative numeric data configuration, changes - to +.
(3) [∨] key Changes to display the point data to the next point data.
For numeric data configuration, decreases the selected numeric digit.
(The digit (9 to 0) descends one by one. After 0, the digit returns to 9.)
For ON/OFF operation, switches ON to OFF.
For positive/negative numeric data configuration, changes + to -.
(4) [ENTER] key Fixes the configured point data.
When the [ENTER] and [MODE] keys are concurrently kept pressed for
an extended period of time, the normal display mode (or a mode unique
to the Operator Panel connected to a standalone remote unit) is
changed to the operation restriction mode.
(5) [→] key For a configuration changeable point, switches the normal display
(display only) to the configuration change display.
In the configuration change display, selects a digit of the point data to
change.
Attachment hole for the point assignment list holder
(1)
(2)
(3)
(4)
5
∗ Note:
Point assignment list holder (Part No. 83167015-001)
is optional requiring separate order.
For a poing assignment list, photocopy the blank point
assignment list included in AB-6642 operation manual
of Model RY5001Q0000 and fill out the list.
Also, digital data (in spreadsheet format) of point
assignment list is available. Ask Azbil Corporation’s
sales personnel for details.
Holds the point assignment list holder* indicating point names and their engineering
units/status.
Displays the point data, schedule, operation restriction, etc.
Data display panel
Indicates that the currently displayed point data is changeable.
Point data displayed without the indicator is unchangeable.
Confi
uration chan
eable/unchan
eable status indicator
Operation status display / Alarm status display
Displays the operation status and/or alarm status of the selected point.
Indicates the start-up time with ON LED and the shut-down time with OFF LED when
schedule is displayed.
Port for Remote Controller bus
Connects to Neopanel
or Neoplate with LAN cable.
Ask Azbil Corporation’s sales personnel for details regarding Neopanel and
To Next Page
