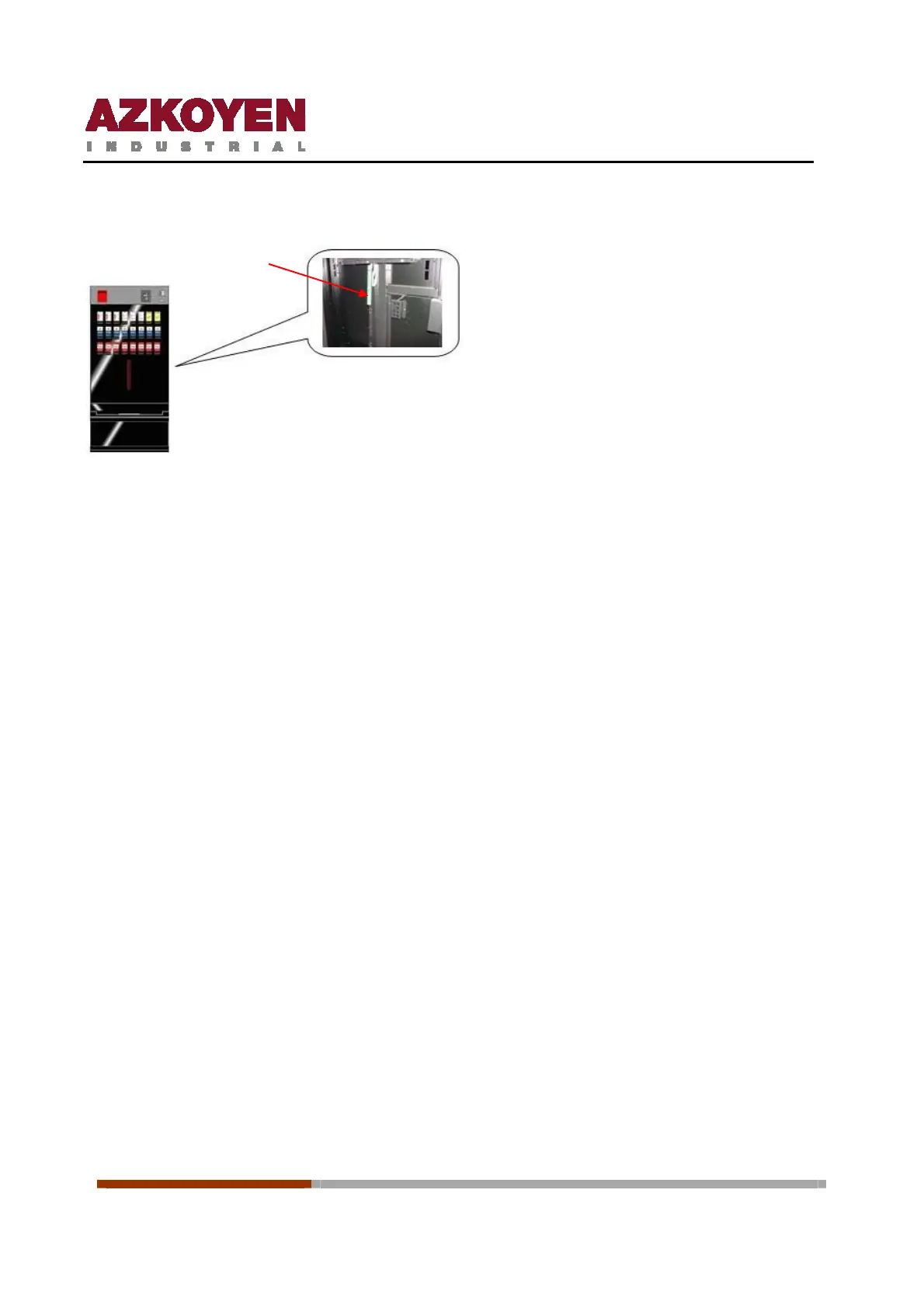

4. Column of LED diodes
The front panel of the machine has a column
of LED diodes (green) that illuminate when the
user of the machine purchases a product. The
LED diodes illuminate at the same time as the
extraction of the product and its delivery to
the product collection tray.
5. Product collection tray
This is the area at the front of the machine where the product is delivered to the user. The
collection tray has a row of LED diodes (white) that illuminate when the user of the machine
collects the product and change. The objective is to facilitate the collection of the product and
change if it is required.
6. Coin entry front plate and reject button
The front plate is located on the upper part of the door of the machine. The users of the machine
insert the coins here. Next to the coin slot is the reject button that allows the user to cancel the
purchase and recuperate the coin/s that were inserted into the machine.
