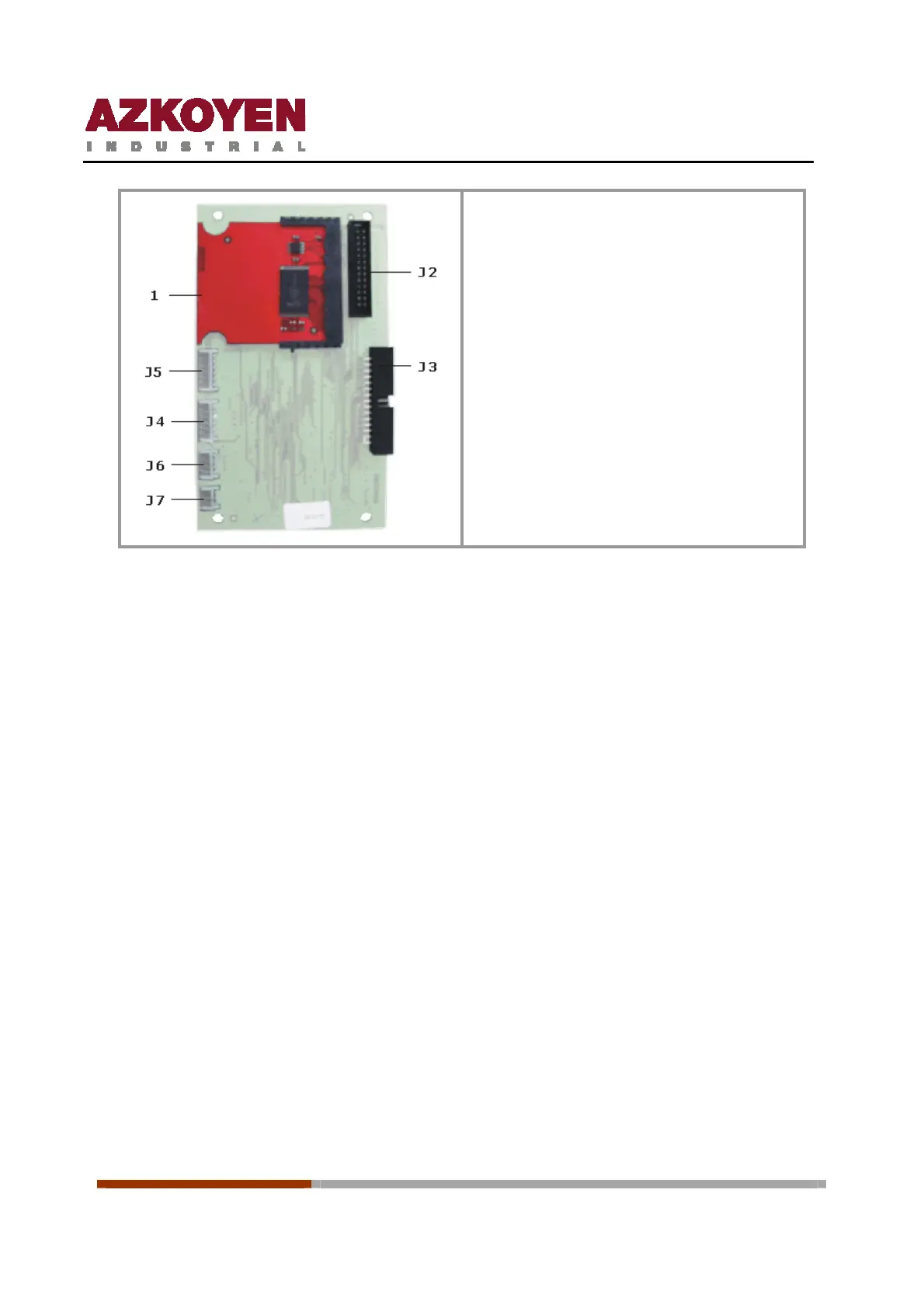

1: Flash board.
J2: not used
J3: connection to the Rack. Corresponds to
the data bus and addresses.
J4: UART 1 for re-programming of the
memory flash.
J5: UART 2 port of communication.
J6: connection protocol EXECUTIVE.
J7: connection protocol MDB.
The saving of programmes can be done in three different ways:
15.5.1 Updating the control board of the machine from a PC
The following items are needed:
¾ PC with Windows 95 or above. The connection is made with the serial port, so the PC
must have one.
¾ Programme: LOADER version 2.5 installed on the PC.
¾ Files with the programmes, extension .S19 installed in the PC.
¾ Connection cable between the serial port of the PC and the control board of the
machine to the connector UAR1.
