IR-B02 Page 7
equipment and facility engineering
3. Installation

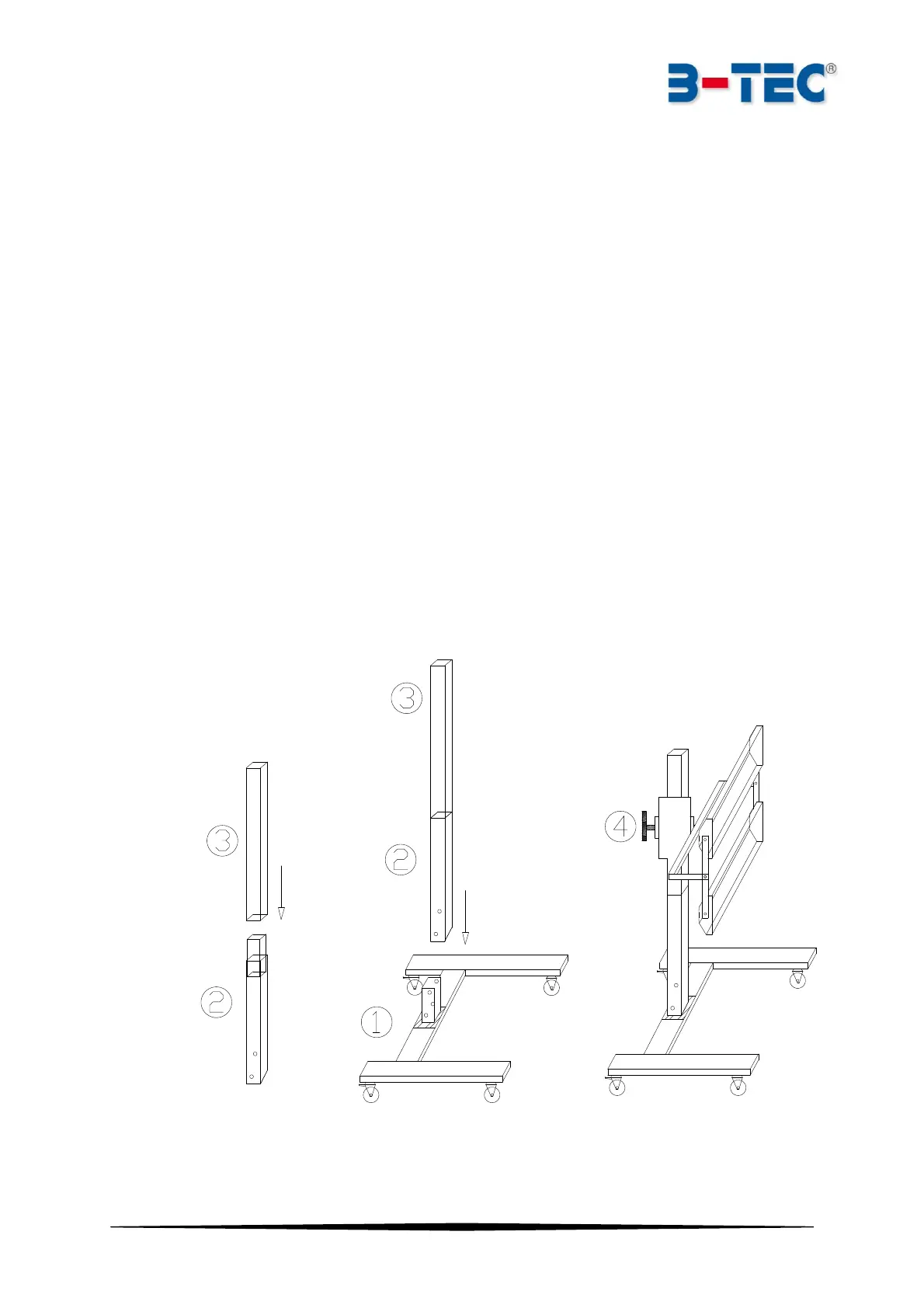

1. Insert the upper section ③ of the vertical bar into the lower section ②.
2. Take out the pedestal ①, insert the well-installed vertical bar into the pedestal ① and fasten
the screws.
3. Fix the locking ring ④ onto the vertical bar, allowing the emitter side in the front and fasten
the handle.
4. Attach the power wire.
5. Remove the red plastic films from the emitter tubes and the stickers from the protection
covers.
6. Take out the red foam cubes behind the tubes.
Notes:
Power supply: 11Amp, 1 PH 230V/50Hz
When adjusting the height of lamp cap, use your left hand to support the lamp bracket and
your right hand to loosen the handle of the locking ring ④ for two circles, and then move the
bracket with your two hands supporting the two ends of the lamp bracket. It is not allowed
to operate it by using one hand so as to avoid any damage to the lamp tube caused by lamp
cap falling down.
