3. Technical description of the machine
The short- wave infrared Paint Dryer is special for baking finish of automobile, which is featured with
high penetrability, short baking period, long service life, high cost efficiency, convenient and flexible
use without site limit.
1. Every emitter is controlled by a separate switch.
2. Every emitter can be swinged 360° and the whole baking lamp can be swinged 300°.
3. The height is adjustable from 40cm to 200cm.
4. An electronic timer is adopted to time the baking.
5. An ultrasonic distance measuring device is provided.
2.1 Technical information

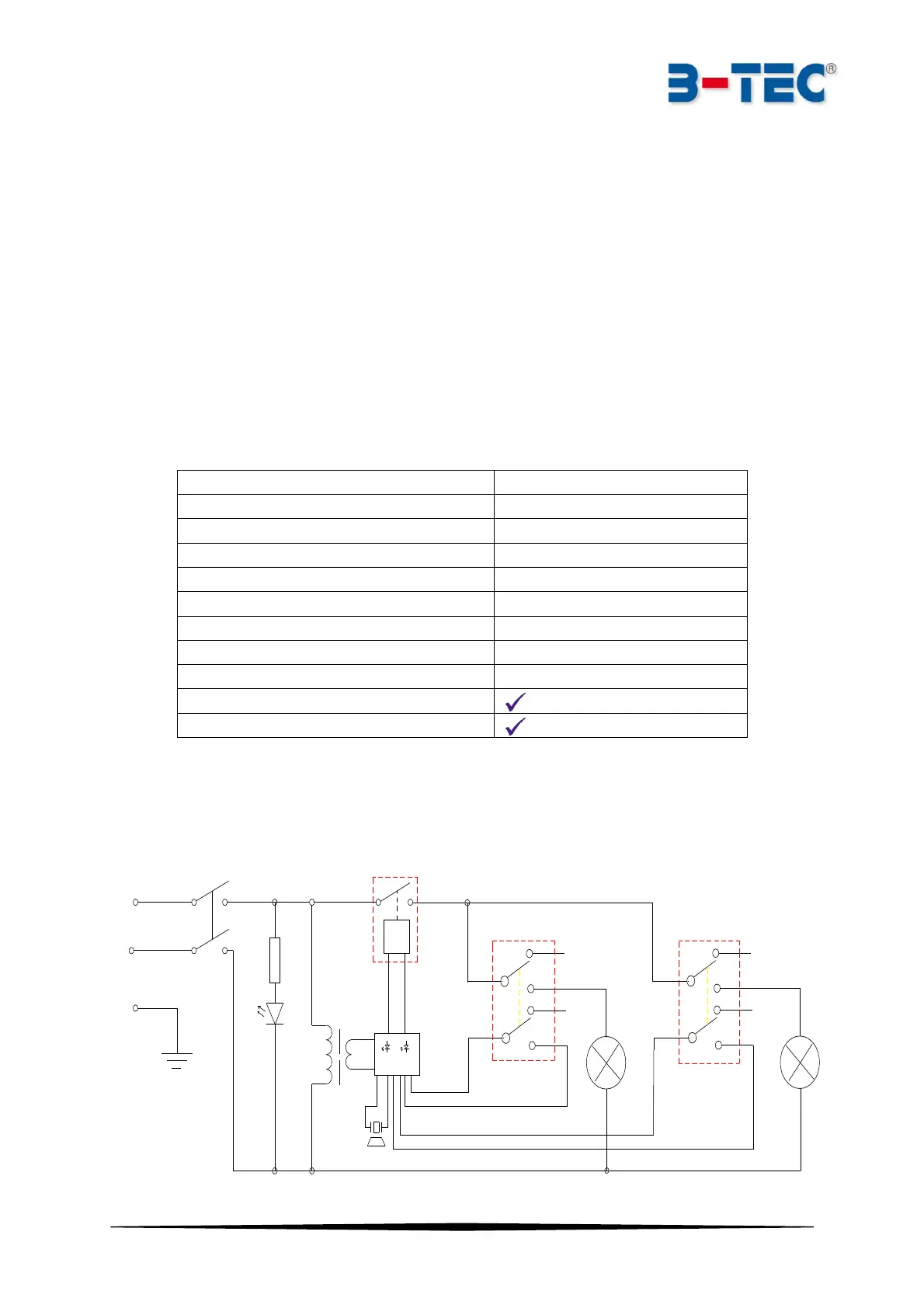

2.2 Wiring diagram
Input current
11 A
Input voltage
220/230 V - 50/60 Hz (1PH)
Short-wave quartz halogen infrared tube
2 x 1020 W
Max. power
2100 W
Range of time
2 x 35 min
Baking area
600 x 800 mm
Baking time
1 - 35 min
Temperature
60°C - 70°C
Dimension: (W x H x L)
700 x 1550 x 580 mm
Digital display
Ultrasonic distance measurement
Control
Board
J
Diagram
ON
ON
OFF
OFF
S2
S3
D3D2
IR1 IR2
L
E
N
T1
Main Switch
S1
D1
R
ultrasonic
emitter
- Technical changes and errors reserved. All pictures similar -
