WWW.BALTIMOREAIRCOIL.COM
7
Rigging & Assembly
Multi-Cell Installation
Multi-Cell Unit Assembly
Flume Box Installation
Install
Backing
Plate Here

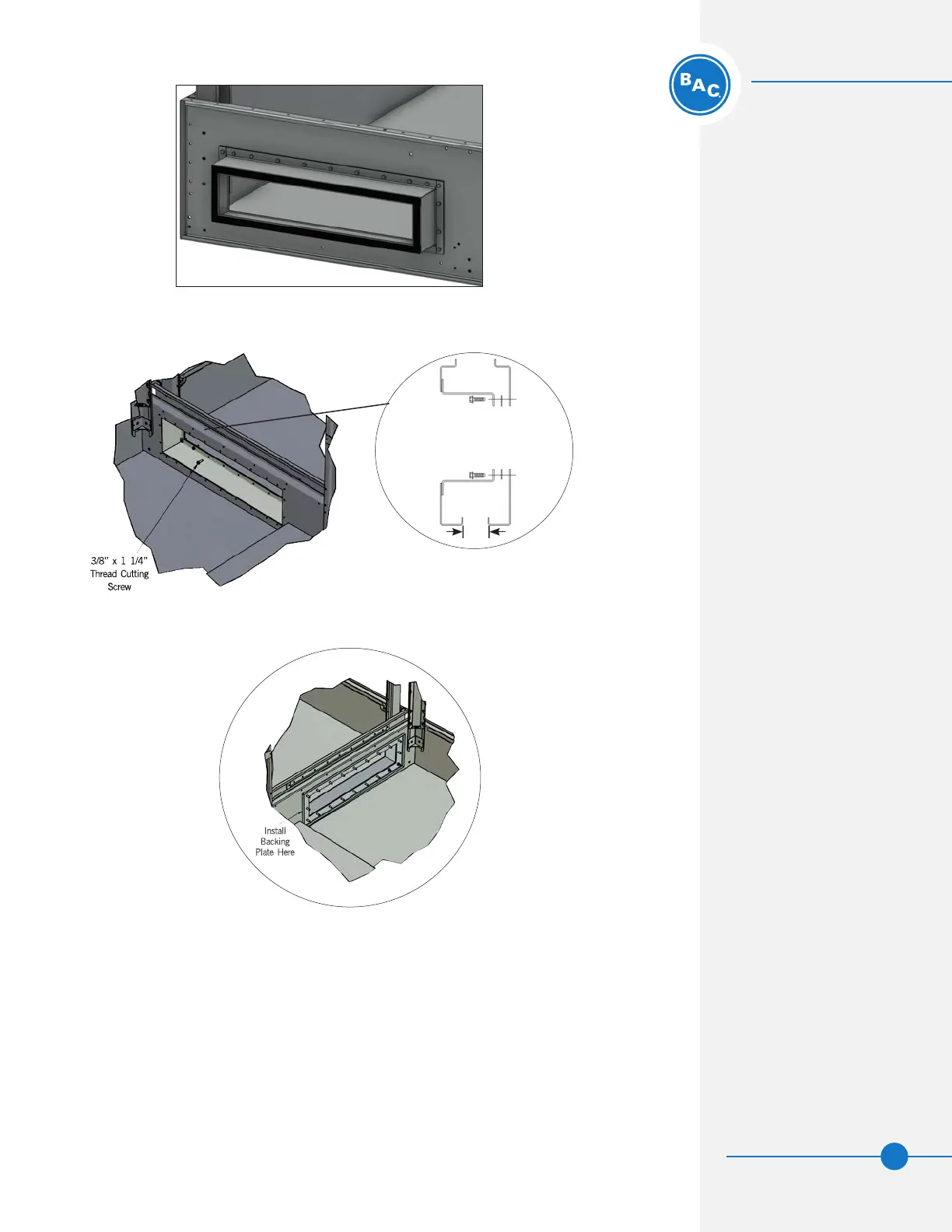

Figure 7. Backing Plate Installation
3/8 x 1 1/4
Thread Cutting
Screw
Figure 6. Thread Cutting Screw Pattern for Flume Box
Detail A
Figure 5. Flume Box Butyl Sealer Tape Application
2 1/2”
