BAC S15E-1285-07 Series User Manual

WWW.BALTIMOREAIRCOIL.COM
21
Optional Accessory
Installation
Louver Face External Access
Platform With End Ladder
Hot Water Basin Handrail
Detail A

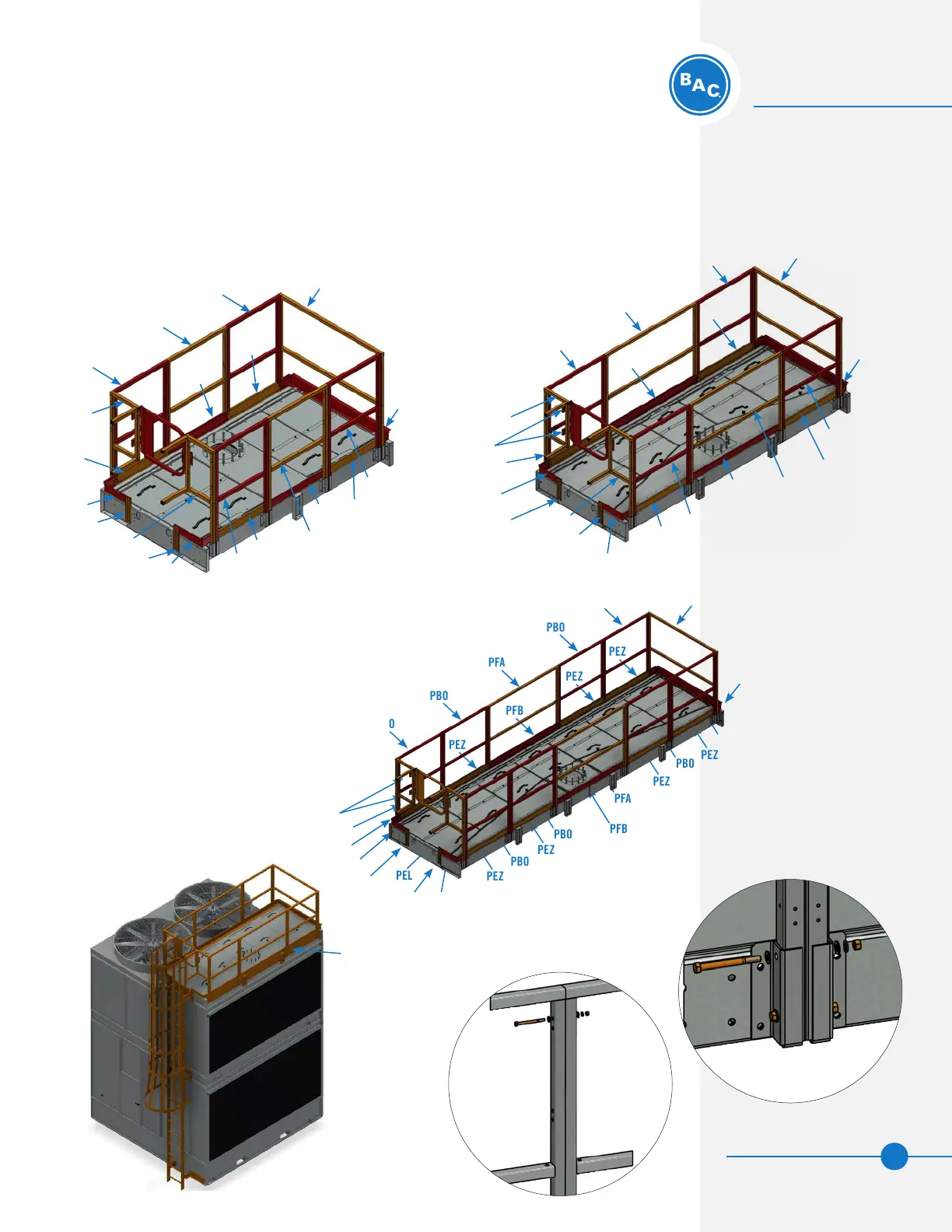

Figure 29a. S15E/X15E-1285-x
Figure 29b. S15E/X15E-1212-x
Figure 30. Hot Water Basin Handrail
Detail A
Detail B
PEK
PBP
PEI
PBP
PEJ
PDX
PBP
PBL
PEO
PEI
PBL
PBP
PDY
PEM
PEL
PEM
PDZ
PBL
PEO
PBL
PBO
PCU
PBO
PEJ
PDX
PCO
PEZ
PBO
PEZ
PCU
PCO
PBO
PEZ
PDY
PEM
PEL
PEM
PDZ
PEK
PAA
PEZ
Hot Water Basin Handrail (Optional)
1. The welded handrail assemblies drop into pre-installed sockets in a specific
configuration depending on the size of the unit. See Figures 29a - 29c below for the
configuration type depending on the model number.
2. Secure the vertical handrail posts in each slot using the 3/8” bolts provided. See
Figure 30, Detail A.
3. Connect the vertical handrail posts to each other using the 5/16” bolts proved. See
Detail B.
Figure 29c. S15E/X15E-1218-x
PBO
PBO
PBO
PBO
PFA
PEZ
PEZ
PEZ
PFB
PAA
PEK
PEZ
PDZ
PEM
PEL
PEM
PDY
PEZ
PEZ
PEZ
PEZ
PBO
PBO
PBO
PFB
PFA
PBO
PEJ
PDX
