Ladder Safety Cage (Optional)
1. If the safety cage is shipped in multiple pieces, reassemble the safety cage.
2. Bolt the safety cage to the ladder using flatwashers and locknuts. Orient all fasteners
with bolt heads inside safety cage. See Figure 26, Detail A through D and refer to
Table 3 for the quantity of bolting locations for different safety cage heights.
Share two lower
fasteners on
upper ladder
bracket
Upper ladder
bracket
Hoop
Detail D

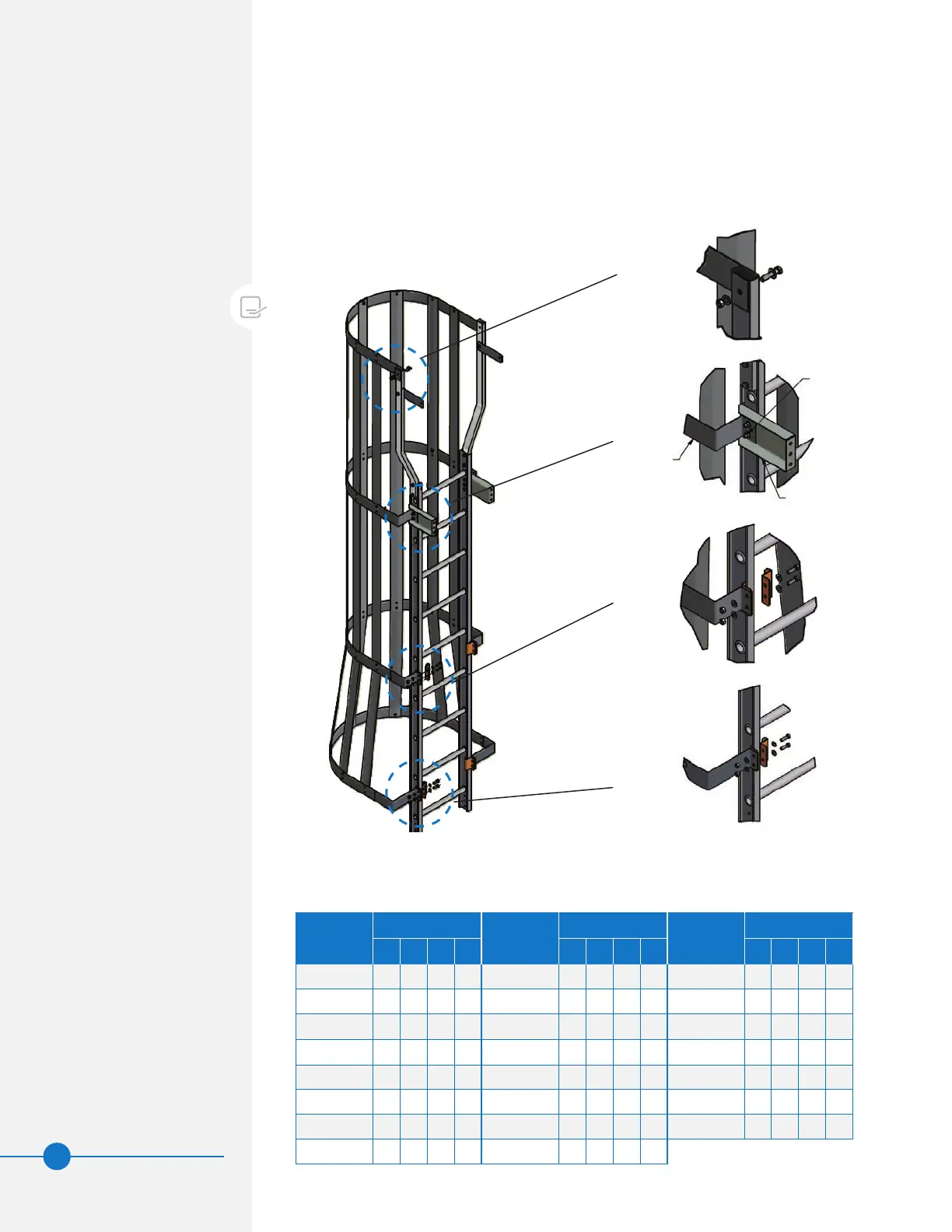

Figure 26. Safety Cage
Detail A
Detail B
Detail C
Cage
Height (ft)
Bolting Location
Cage
Height (ft)
Bolting Location
Cage
Height (ft)
Bolting Location
A B C D A B C D A B C D
4 1 – – 1 12 1 1 2 1 20 1 1 4 1
5 1 1 – 1 13 1 1 2 1 21 1 1 4 1
6 1 1 – 1 14 1 1 2 1 22 1 1 4 1
7 1 1 – 1 15 1 1 2 1 23 1 1 4 1
8 1 1 – 1 16 1 1 2 1 24 1 1 4 1
9 1 1 1 1 17 1 1 3 1 25 1 1 5 1
10 1 1 1 1 18 1 1 3 1 27 1 1 5 1
11 1 1 1 1 19 1 1
3 1
Table 3. Ladder Safety Cage Bolting Location and Quantities
NOTE: Safety gates are provided
for all handrail openings, and all
components are designed to meet
OSHA requirements.
