1 Construction Details

W W W . B A L T I M O R E A I R C O I L . E U

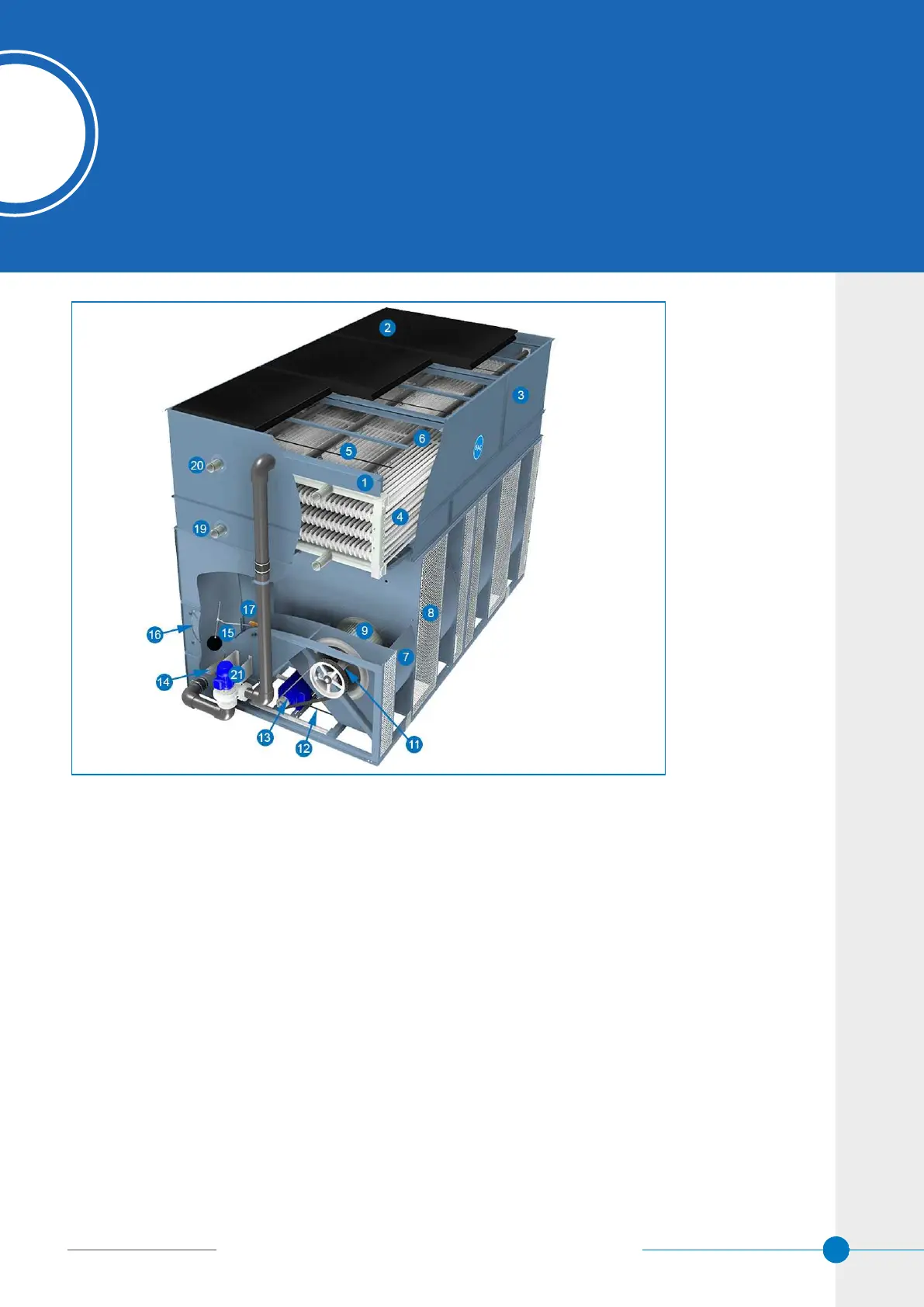

CONSTRUCTION DETAILS

1. Spray header

2. High efficiency drift eliminators

3. Casing

4. Coil

5. Spray nozzles

6. Spray branches

7. Fan housing

8. Fan screen

9. Forward curved centrifugal fans

10. Air inlet vanes (not shown)

11. Fan shaft & Bearings

12. Motor base adjusting screw

13. Fan motor & Drive

14. Strainer

15. Adjustable float

16. Man size access door

17. Water make-up valve

18. Fan discharge cowl (not shown)

19. Coil outlet connection

20. Coil inlet connection

21. Spray water pump

VXC
