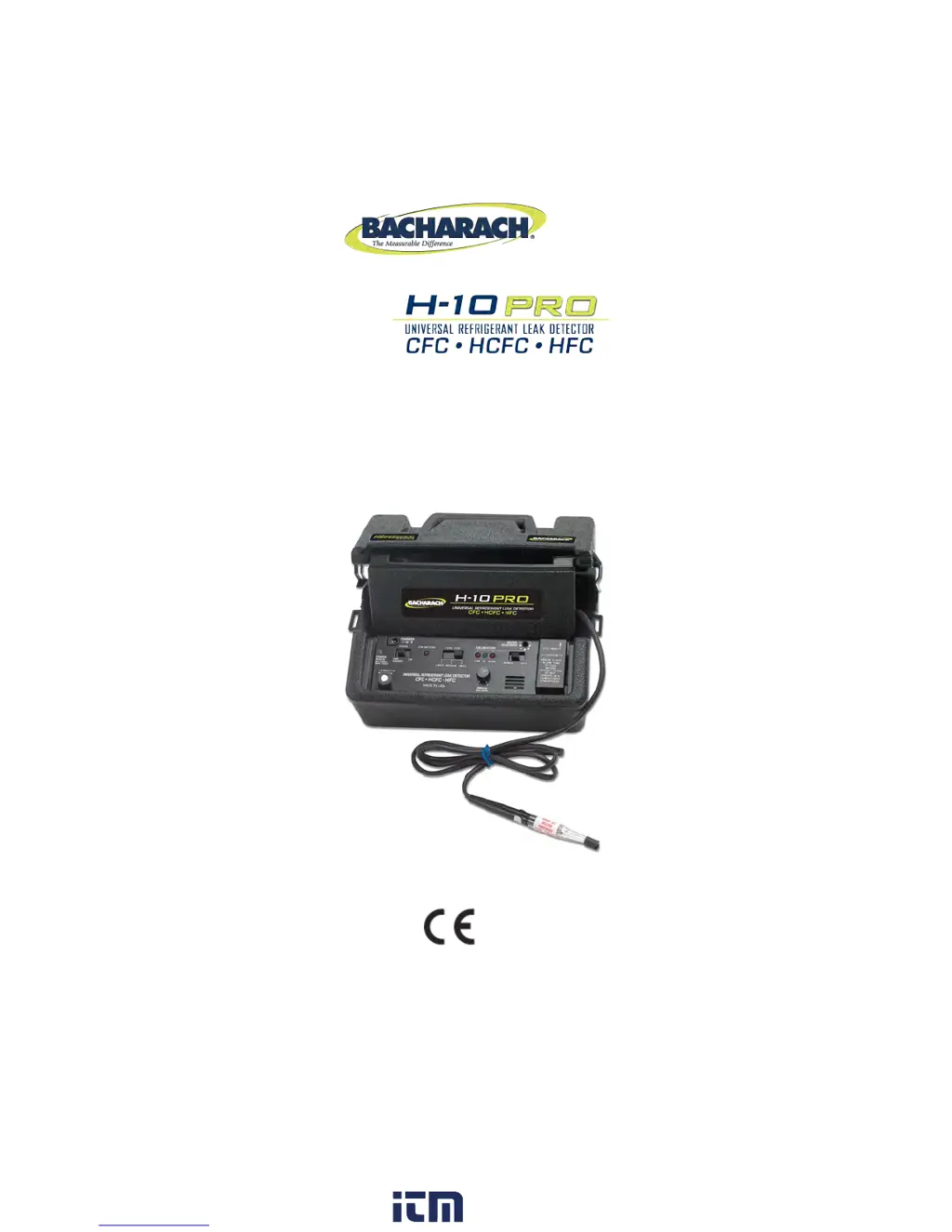

Bacharach H-10 PRO - User Manual

Questions and Answers

E
Elizabeth DavisJul 27, 2025
What to do if Bacharach Security Sensors show erratic response in all leak positions?
- M
  moorejamesJul 27, 2025
  If your Bacharach Security Sensors exhibit erratic responses in all leak positions, several factors could be at play. First, the filter might be clogged, in which case you should replace it with a new one (3015-0784). Another potential cause is dirt inside the sensor; try removing the sensor and gently blowing it out with clean air (not exceeding 10 psi); if this doesn't resolve the issue, replace the sensor (3015-0486) and replace the filter (3015-0784). A short circuit in the sensor could also be responsible, requiring a sensor replacement (3015-0486). Finally, the surrounding atmosphere may be contaminated with excessive refrigerant gas, so ventilate the area.
L
Leah CummingsAug 16, 2025
Why Bacharach H-10 PRO response is continuous?
- M
  Megan MitchellAug 16, 2025
  If the response of your Bacharach Security Sensors is continuous, particularly in the SMALL leak switch position, it's likely that the detector sensitivity is too high. Readjust the heater (see "Heater Adjustment" section).
S
sarah99Nov 5, 2025
What to do if Bacharach Security Sensors have no response to calibration reference bottle?
- A
  Andrea SmithNov 5, 2025
  If your Bacharach Security Sensors aren't responding to the calibration reference bottle, consider these possibilities: * The heat adjustment might be set too low, or the bottle could be empty. Readjust the heater (see "Heater Adjustment" section) or replace the bottle (3015-0864). * The filter in the probe tip may need replacement (3015-0784), and it is important to check for proper pump operation. * The sensor may have been exposed to excessive amounts of halogen gas. If so, move the probe to a clean atmosphere for several minutes to allow the sensor to purge itself. * Water might be present in the probe. Turn off the unit, disconnect the probe from the chassis, remove the screws, and take out the chassis. Locate the hose connecting the probe to the pump on the underside of the ...

Summary

Product Overview

Introduction

Details the H-10 Pro as a versatile, high-performance leak detector for refrigerants.

Safety Warnings

Provides critical warnings regarding use with flammable gases and hazardous locations.

General Warnings

Warns against misuse, exceeding specifications, and continuous operation.

Specifications

Details technical specifications including battery, sensor, probe, response, flow rate, and detected refrigerants.

Operating the H-10 Pro

Operation Overview

Explains the H-10 Pro's positive ion emission technology (heated diode) for refrigerant leak detection.

Panel Controls

Identifies and explains the various controls and indicators on the H-10 Pro unit.

Initial Setup

Provides instructions for initial setup, including preparing the calibration bottle and charging the battery.

Adjusting Sensitivity

Explains how to set the leak size switch for different sensitivity levels and refrigerants.

Auto vs. Manual Mode

Compares Auto and Manual modes, explaining their effects on background levels and sensitivity.

Setup Procedure

Provides step-by-step instructions for the initial setup and operation of the H-10 Pro.

Checking for Leaks

Outlines procedures for detecting refrigerant leaks, including safety warnings and progression.

Calibration and Performance

Heater Adjustments

Details how to adjust the sensor heater for optimal sensitivity and performance using calibration LEDs.

Maintenance and Care

Replacing the Filter

Provides instructions on how to replace the filter in the probe tip to protect the pump from damage.

Replacing the Airflow Indicator

Details the steps for removing and replacing the airflow indicator ball in the probe tip.

Replacing the Sensor

Explains when and how to replace the sensor, including safety precautions and adjustment steps.

Troubleshooting, Warranty, and Repair

Diagnosing Issues

Lists common problems, their causes, and solutions, such as no response or no airflow.

Limited Warranty

Outlines the 3-year limited warranty, what it covers, and exclusions for parts and user damage.

Repair Information

Provides guidance on how to obtain repair services for the H-10 Pro unit.

Spare Parts

Spare Parts List

Lists available spare parts for the H-10 Pro with their corresponding part numbers and descriptions.

Service and Support

Authorized Service Centers

Provides information on how to contact Bacharach Service Centers for parts and service.
