Bacharach HGM300 Installation & Operation

Instruction 3015-4149 9

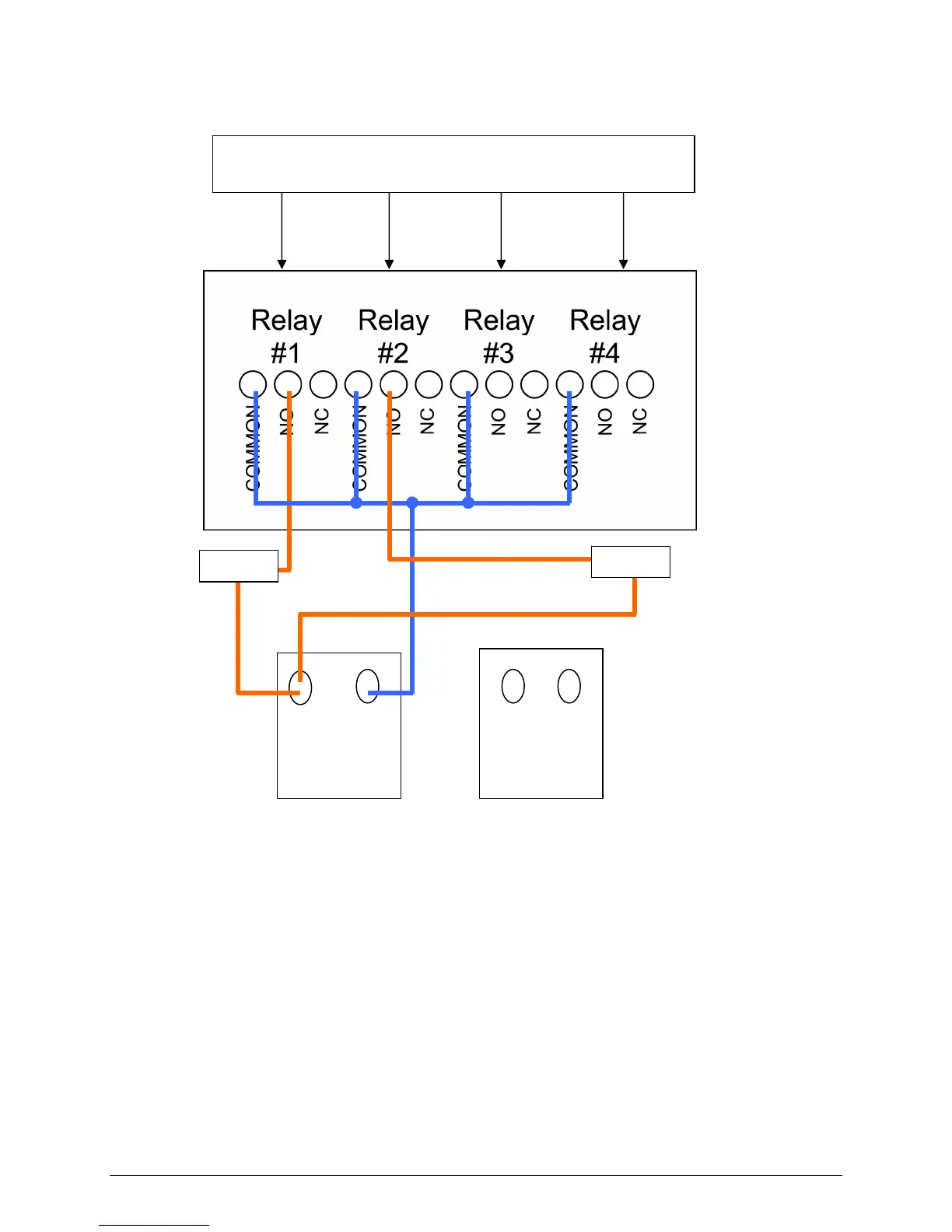

Typical HGM300 Relay 1 and Relay 2 Wiring
Jumper the ‘Neutral’ of the auxiliary power connector to the ‘Common’ on the relay block.
Connect one end of strobe or horn to the ‘NO’ of whichever level of alarm is appropriate for application.
The other end of strobe or horn is connected to the ‘Line’ of the auxiliary power connector (5 A max.).
Aux. Power
LEAK SPILL EVACUATE FAULT
Line Neutral
Line Neutral
Horn
Strobe
Main AC Input
