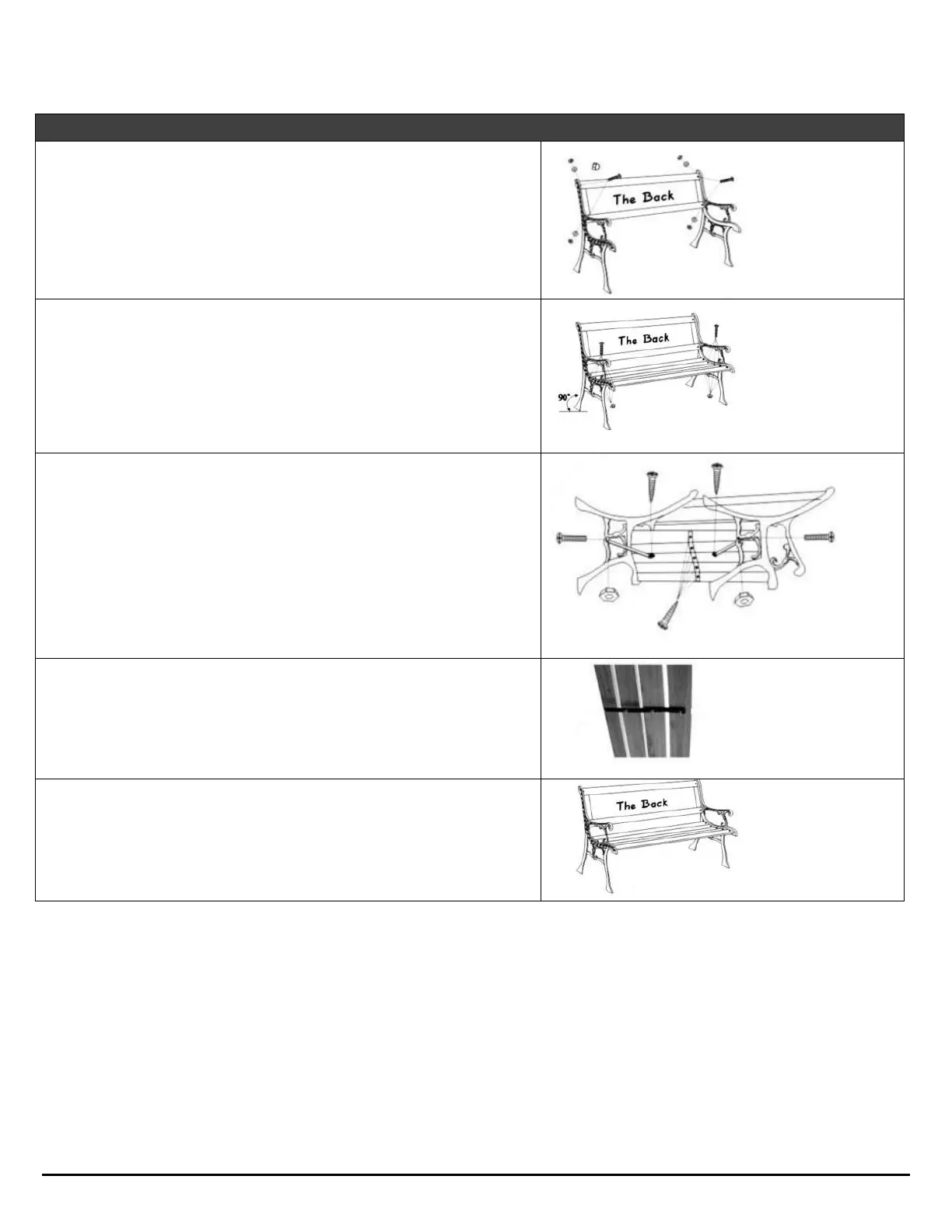

STEP ONE:
With help of one other person, carefully hold Back (C) in place
Insert a M6*30mm Screw (G) through both the top and bottom hole of
the Back (C), Right Leg (A), then secure using 12mm Washer (I), Nut (K).
Place Plastic Cap (M) over Nut (K).
Repeat for Left Leg (B)
STEP TWO:
Using 2 M6*30mm Screws (G), insert through both ends of Seat Slat (D)
and into the backmost holes of Legs (A,B)
Secure with 12mm Washers (I) and Nut (K).
Repeat for remaining 4 Seat Slats (D), working from back to front.
STEP THREE:
With the help of one other person, place the bench on its side.
Secure Side Brace (E) to underside of Right Leg (A). Insert a M6*20mm
Screw (H) through 16mm Washer (J), Right Leg (A), Side Brace (E), and
secure using Nut (K).
Secure Side Brace (E) to underside of Seat Slat (D) using M5*15 Screw (L)
Repeat for Left Leg (B)
STEP FOUR:
Secure Seat Brace (F) to underside of Seat Slat (D) using M5*15 Screws
(L)
STEP FIVE:
Make sure all screws are securely tightened.
With the help of one other person, flip the bench upright.
Now your bench is ready to use!
