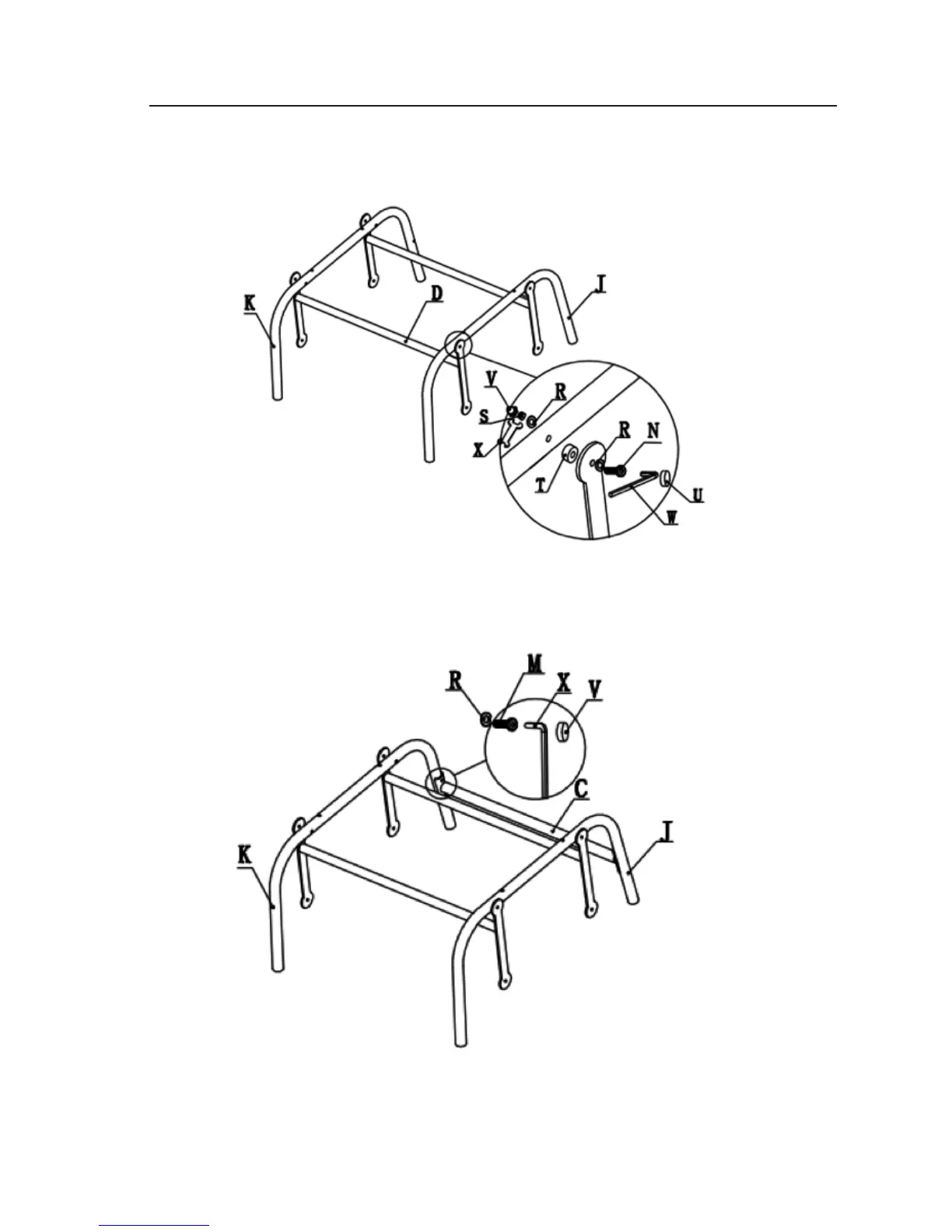

Step 1: Attach swing pole (D) to left leg (J) and right leg (K) with M6*45 Bolt (N), plastic washer
(T), steel washer (R) and M6 nut (S), as shown above. Do not overtighten the bolts.
Step 2: Attach back leg connecting tube (C) to left leg (J) and right leg (K) with M6*15 bolt (M),
steel washer (R) as shown above. Do not overtighten the bolts.
CAUTION: Do not use sharp equipment such as a knife and scissors when removing the
protective material, as it may damage the product..
* Place all glider parts and hardware on a soft & clean level surface.
ASSEMBLY INSTRUCTIONS
