Backyard Creations Conley - Page 15

15 of 19

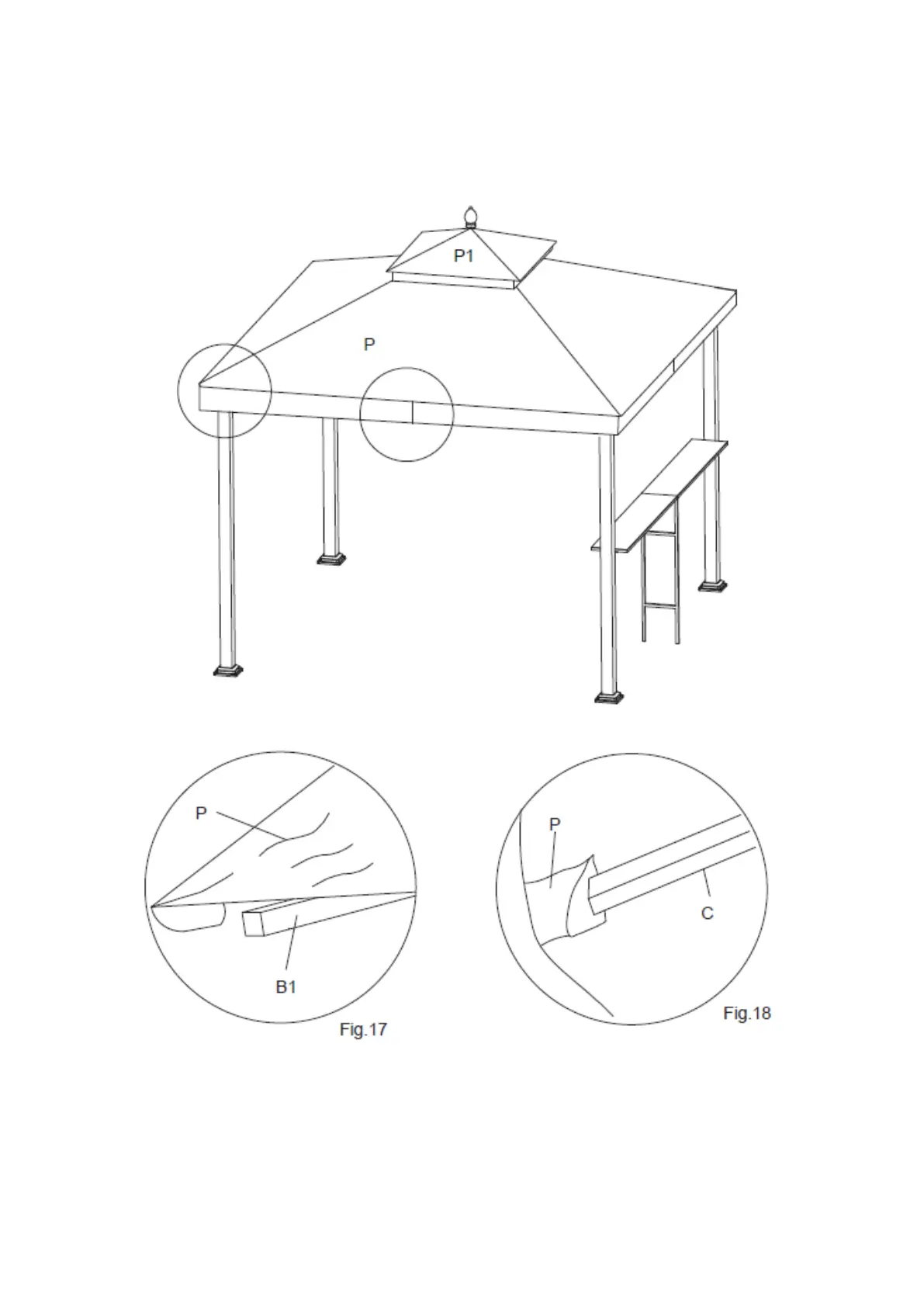

Step 11A: Secure the Main Roof Canopy (P) to the four Main Roof Corner Support Extensions (B1). See
Figure 17.
Step 11B: Secure the Main Roof Canopy (P) to the four Main Roof Side Supports (C). See Figure 18.
Note: Canopy will be tight once secured to the roof frame.
