4 of 11
Assembly Instructions
10’ x 10’ Brunson Pergola
Note: For video instructions please visit:
https://insideout.store/video-assembly-instructions/
Important:
⚫ Read all the instructions before assembly. Failure to do so may result in faulty assembly and
potential injury.
⚫ Before assembling the product, remove all protective materials, hardware kit(s), and identify all
parts packed in the carton are present. (Note: If any part is missing or damaged, do not attempt to
assemble). Contact InSide Out Customer Support. See page 11.
⚫ Assemble on a stable level surface to avoid damage to gazebo and possible injury.
⚫ Two people are required to assemble this product.
⚫ Pergola dimensions are measured from end of corner post base covers.
WARNING: TIGHTEN BOLTS AFTER EACH STEP ONCE PARTS ARE ALIGNED!

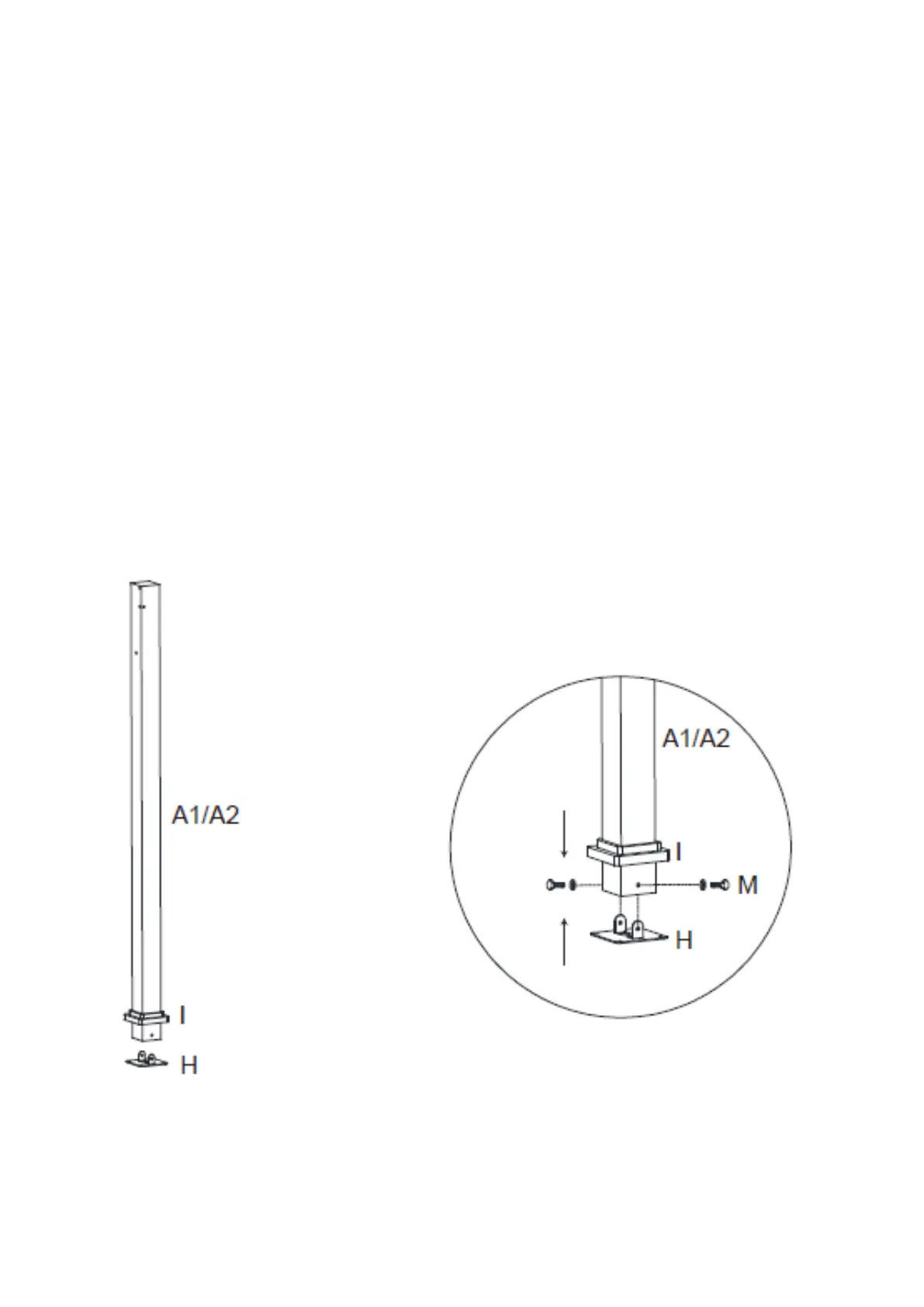

Step 1: Insert Corner Posts (A1 & A2) into Base Cover (I). Attach Base Plate (H) to Corner Posts (A1 & A2)
using Bolt (M). See Figure 1.
Figure 1
To Next Page
