4' Rock Ladder
Phase 1
Phase Notes

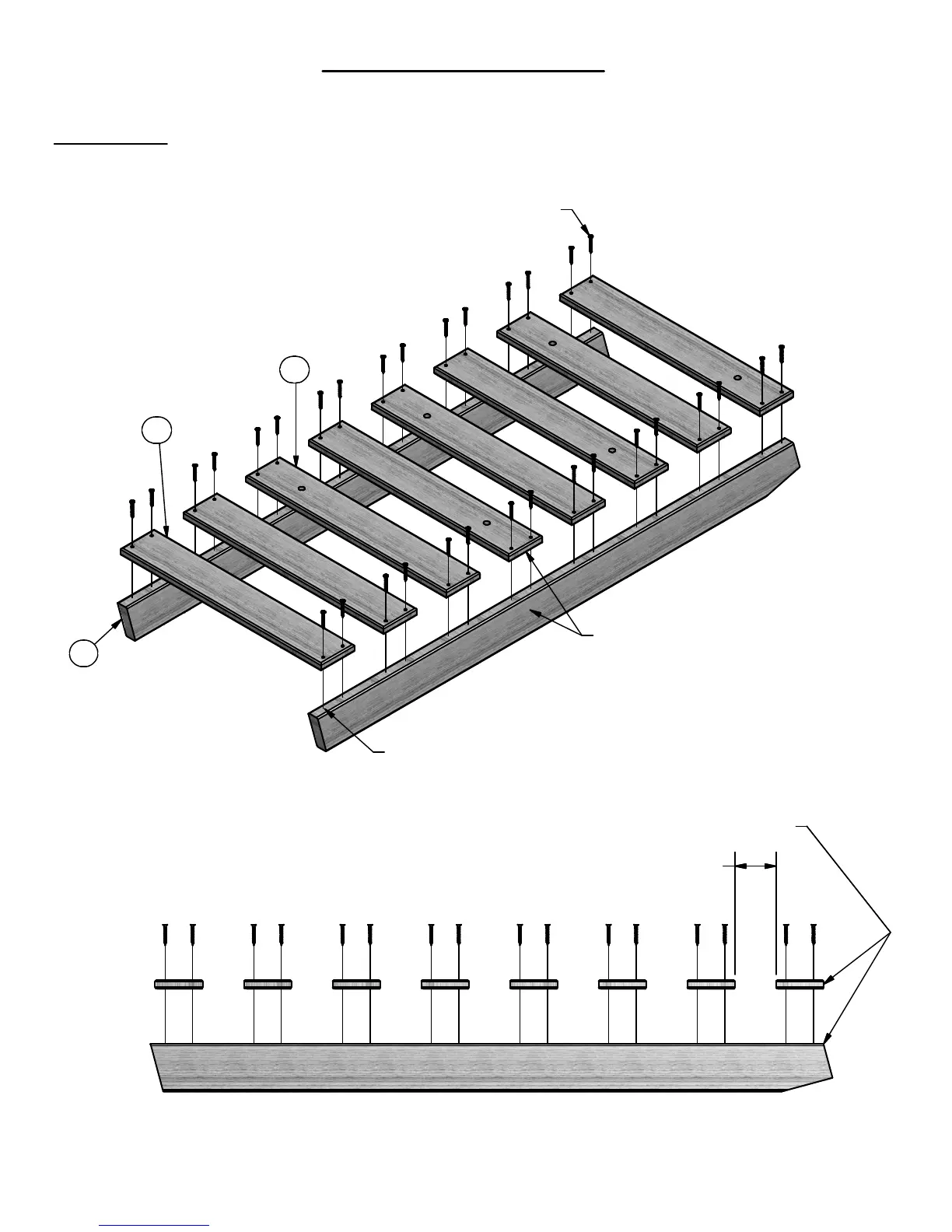

• Assemble slats to rails as shown.
• Note oreintation of slats, be sure to arrange as shown.
• See drawing below for slat spacing on rails.
• Using slats as a guide, pre-drill top edges of rails
with a 1/8" drill bit. Failure to pre-drill may result in
board splitting.
TOP
TOP
M72
M71
SCREW PFH 8x1-1/2
H73
THESE SURFACES FLUSH BOTH SIDES
PRE-DRILL TOP EDGE OF RAILS
2 15/16
TYPICAL SLAT SPACING
7 SPACES
ALIGN FRONT EDGE OF SLAT WITH TOP OF RAIL
QTY.
DESCRIPTION
2 ROCK WALL RAIL
6 ROCK BOARD
2 ROCK WALL SLAT
32 SCREW PFH 8x1-1/2
