Backyard Discovery 55006 - Page 22

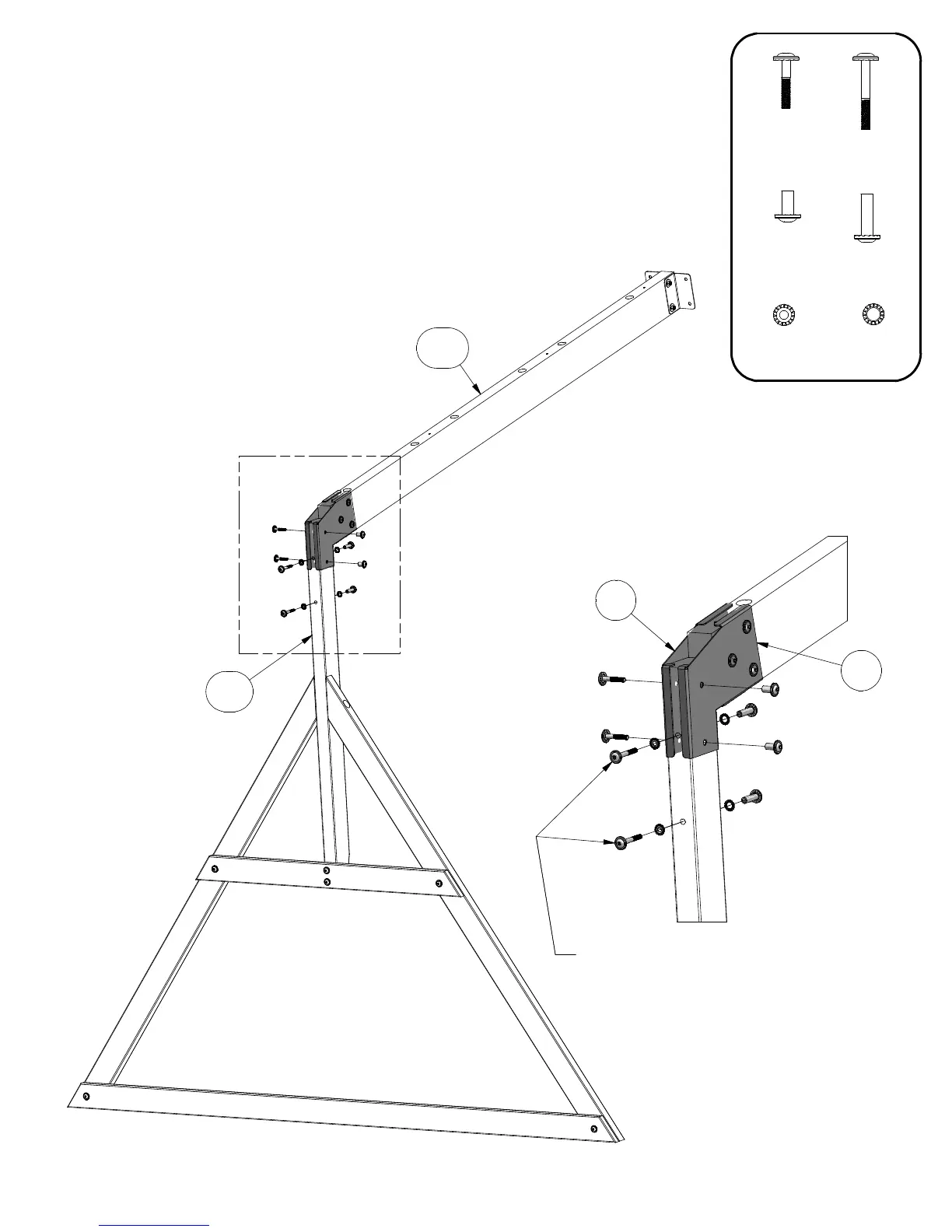

STEP 3
INSERT W71 BOARD INTO TB AND TC BRACKET OPENING AND SECURE USING (2) 1-3/4"
BOLTS AND 7/8" BARREL NUTS, AS SHOWN.
INSERT (2) 2-1/2" BOLTS, LOCK WASHERS AND 1-1/2" BARREL NUTS INTO THE EDGE OF
W71 BOARD, AS SHOWN.
TB
TC
SB74
W71
WASHER
LOCK EXT
12x19
(2)
WASHER
LOCK EXT
8x19
(2)
NUT BARREL
WH 5/16x7/8
(2)
NUT BARREL
WH 5/16x1-1/2
(2)
BOLT WH
5/16x1-3/4
(2)
BOLT WH
5/16x2-1/2
(2)
THESE BOLTS ARE REQUIRED
FOR IMPROVED STRUCTUAL
STRENGHT OF W71 SUPPORT
AND MUST BE INSTALLED.
