QTY DESCRIPTION
1 SLIDE BRACE
3 BOLT WH 5/16x1/2
3 NUT BARREL WH 5/16x5/8
3 WASHER LOCK EXT 12x19
1 SLIDE BED 8' YELLOW
NUT BARREL WH 5/16x5/8
WASHER LOCK EXT 12x19
M77 SLIDE BRACE
BOLT WH 5/16x1/2
SLIDE BED 8' YELLOW
8 FOOT SLIDE ASSEMBLY
PHASE 1
STEP 1

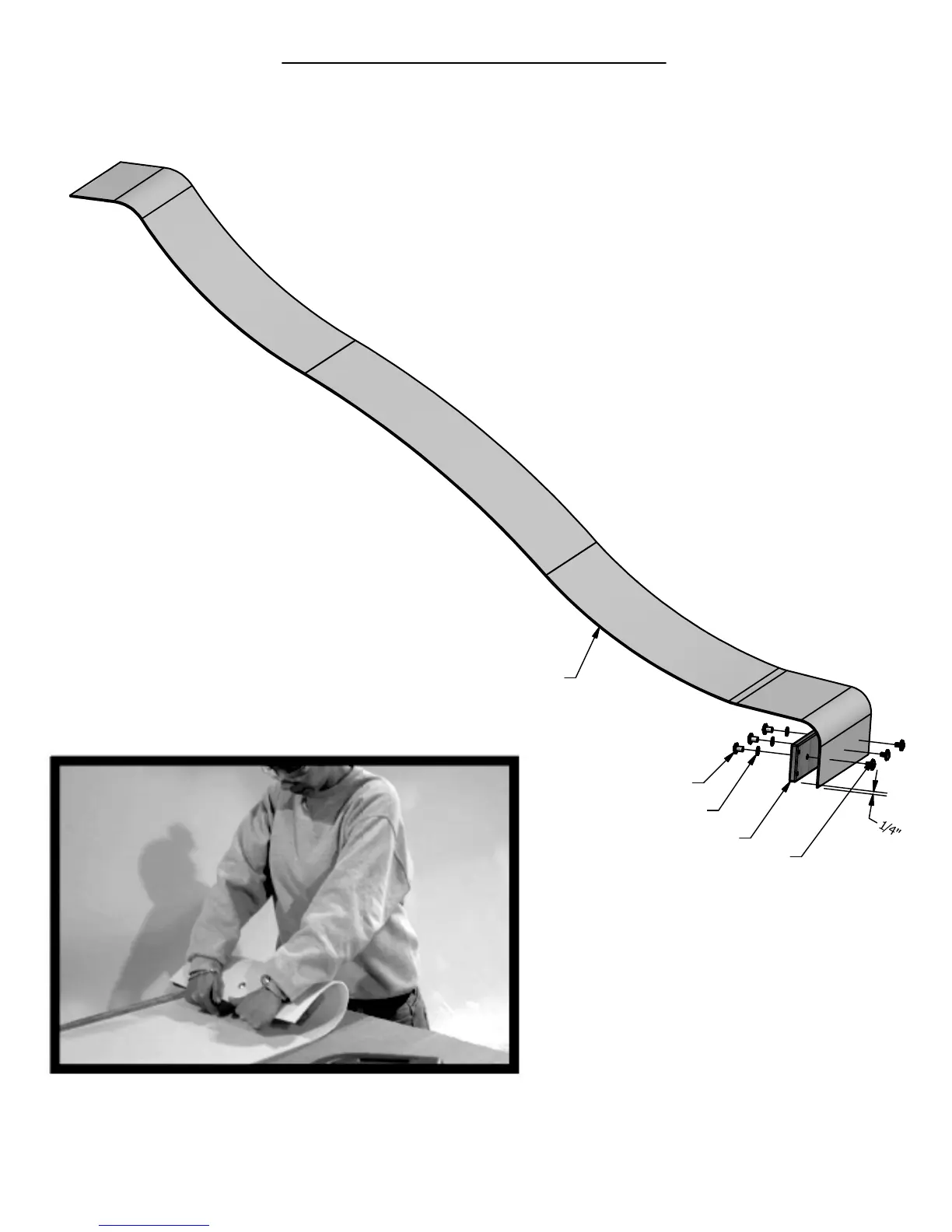

● PLACE SLIDE BRACE CENTERED ON THE BOTTOM 1/4" FROM THE EDGE. TRANSFER HOLES
ON THE BOARD THROUGH THE SLIDE BED AS SHOWN BELOW. USE A 3/8" DRILL BIT.
● ATTACH SLIDE BRACE TO SLIDE USING HARDWARE SHOWN.
TOP
BOTTOM
TIP: PREBENDING THE ENDS WILL EASE ASSEMBLY.
REV 8/02/11 BRS
(SEE SLIDE ASSEMBLY
INSTALLATION STEP FOR
TOP MOUNTING HOLE
DRILLING LOCATIONS).
USE M77 SLIDE BRACE AS A TEMPLATE
FOR DRILLING BOTTOM HOLE PATTERN
IN SLIDE BED. BE SURE TO PLACE
SLIDE BRACE UP 1/4" FROM BOTTOM
EDGE OF SLIDE BED BEFORE MARKING
HOLE PATTERN.
