STEP 27

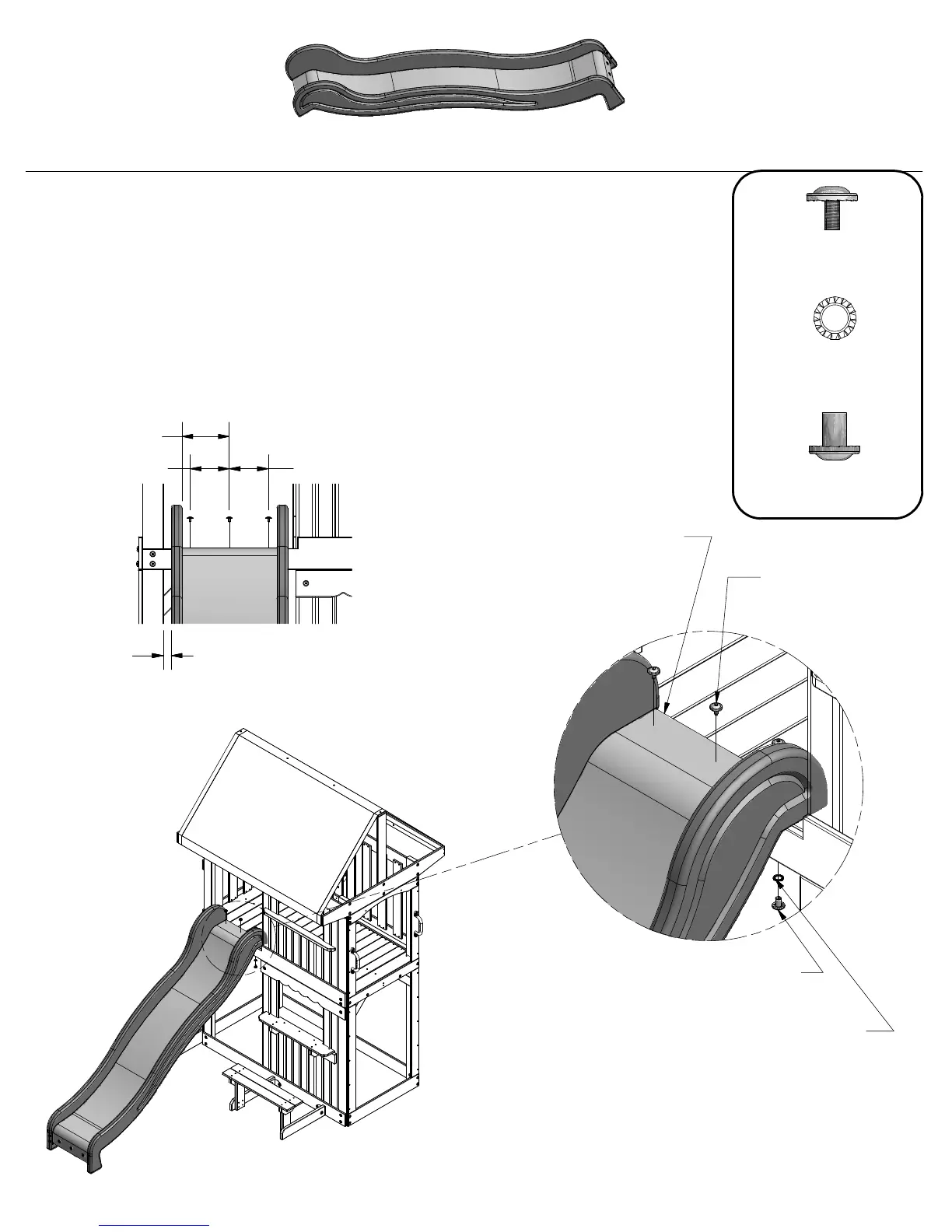

CENTER THE WAVE SLIDE ASSEMBLY IN OPENING, AS SHOWN.
USING A 3/8" DRILL BIT, DRILL THREE THROUGH HOLES INTO THE SLIDE BED AND
DECK BOARDS, AS SHOWN BELOW.
ATTACH THE SLIDE ASSEMBLY TO THE DECK USING (3) 1/2" BOLTS, LOCK WASHERS
AND 5/8" BARREL NUTS, AS SHOWN.
BOLT WH
5/16x1/2
(3)
WASHER
LOCK EXT
12x19
(3)
NUT BARREL
WH 5/16x5/8
(3)
(1) - SLIDE ASSEMBLY
HOLES SHOULD BE APPX
1-1/2" FROM BACK OF SLIDE
6 5/16" 6 5/16"
7 5/8"
1 1/4"
NUT BARREL WH 5/16x5/8
(3 PLCS)
BOLT WH 5/16x1/2
(3 PLCS)
WASHER LOCK EXT 12x19
(3 PLCS)
To Next Page
