Backyard Discovery 55006 - Page 61

FB - SWING SEAT YELLOW - A100070
(2)
EZ - CHAIN GREEN 51.25" - A100068
(4)
QUICK LINK
(8)
BOLT WH
5/16x5 3/4
(2)
NUT LOCK
5/16
(2)
WASHER
FLAT 8x27
(2)
EZ
FB
DN - GLIDER SEAT DARK GREEN - A100025
(1)
DO - CAPTAINS GLIDER ARM YELLOW - A100026
(2)
STEP 31

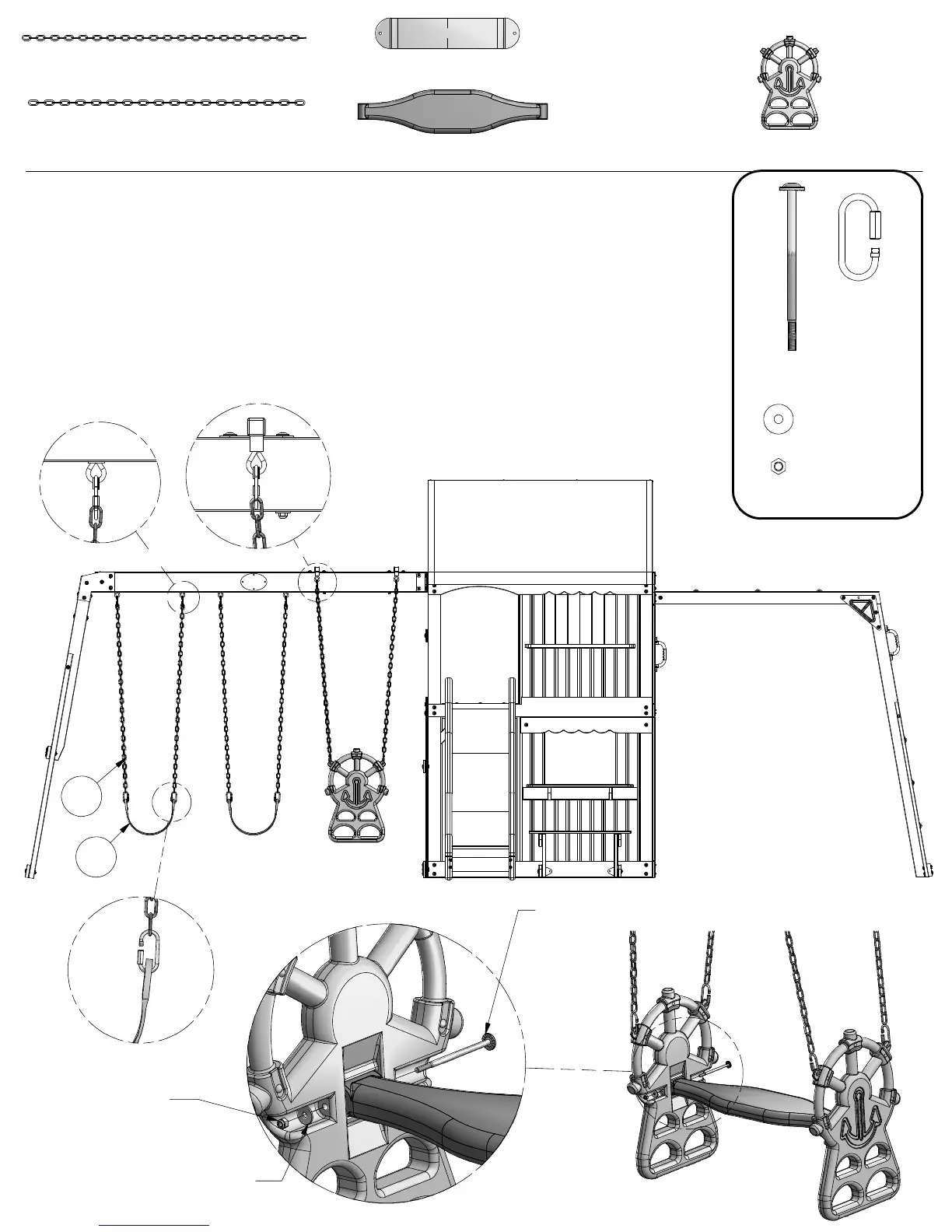

ATTACH FB SWING SEAT TO (2) EZ CHAINS USING (2) FA QUICK LINKS, AS SHOWN.
REPEAT PROCESS TO ASSEMBLE SECOND SWING ASSEMBLY. NOW, ATTACH EZ
CHAINS TO SWING HANGER QUICK LINKS ALREADY ASSEMBLED TO THE SWING
BEAM.
ATTACH (2) DO CAPTAINS GLIDER ARMS TO DN GLIDER SEAT USING 5 3/4 BOLTS
WITH FLAT WASHERS AND LOCK NUTS AS SHOWN
ATTACH (4) JD CHAINS TO SWING HANGER QUICKLINKS ALREADY ASSEMBLED TO
THE SWING BEAM AND ATTACH CAPTAINS GLIDER.
JD - CHAIN GREEN 45" - A100092
(4)
WASHER FLAT 8x27
(2 PLCS)
NUT LOCK 5/16
(2 PLCS)
BOLT WH 5/16x5 3/4
(2 PLCS)
