TIP:
BOLT WH BLK
5/16x1/2
(2)
H100396
T-NUT BLK
5/16
(2)
H100379

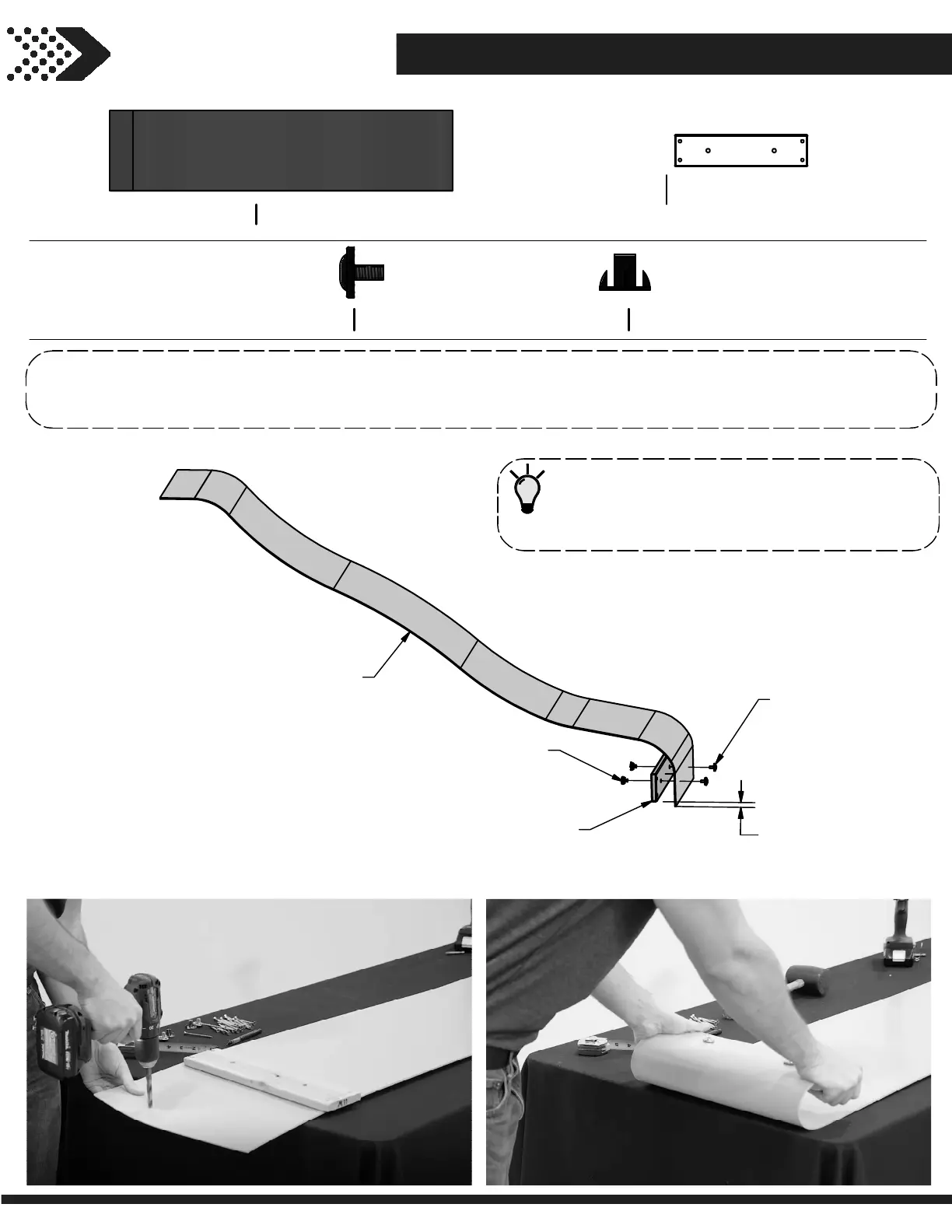

STEP 1
PLACE 'M77' SLIDE BRACE BOARD 1/2" FROM THE BOTTOM EDGE OF THE SLIDE BED. USING THE BOARD AS A TEMPLATE,
MARK
WHERE THE PILOT HOLES WILL BE DRILLED. USE A 3/8" DRILL BIT TO DRILL THE PILOT HOLES INTO THE SLIDE BED.
ATTACH THE SLIDE BED SUPPORT BOARD USING THE HARDWARE PROVIDED.
391
(x1)
6 FT SLIDE BED
396
(x2)
BOLT - 1/2"
379
(x2)
T-NUT - 5/16"
SLIDE ASSEMBLY
M77
(x1)
SLIDE BRACE
6 FT SLIDE BED
(1)
A6P00391
1/2"
SLIDE BRACE - W4L13297
5/8"x3 3/8"x14 1/4" (16x86x362)
M77
(1)
PRE-BENDING THE ENDS WILL EASE ASSEMBLY.
PLA
CING THE SLIDE BED OUT IN THE SUN
MAKES IT EASIER TO BEND.
