Backyard Play Systems 5027 - Page 22

18

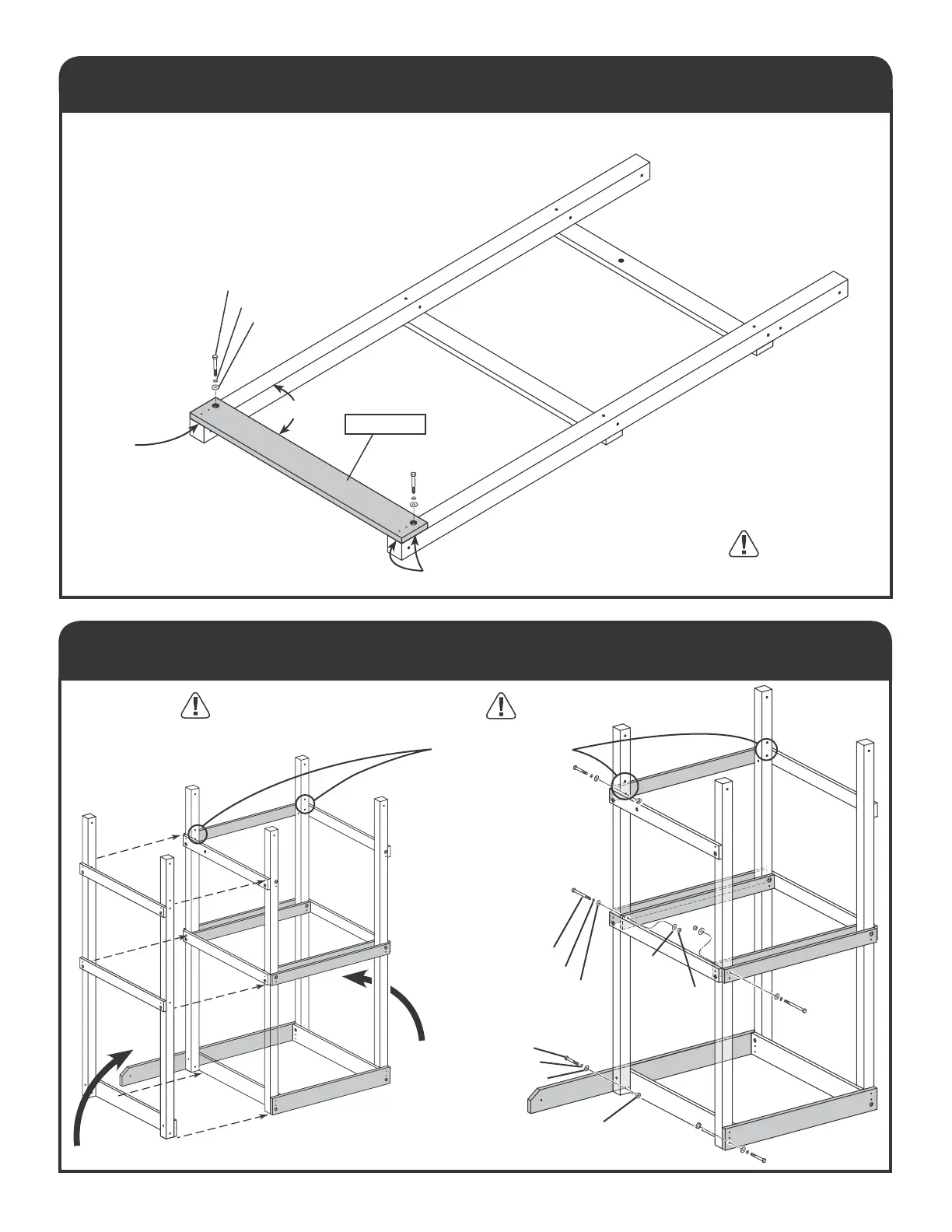

FORT
BASE
Align braces with pre-drilled holes.
FLIP ASSEMBLY OVER TO INSTALL BOTTOM BRACE.
Flush
Flush
3-3/4" Hex Bolt
Lock Washer
Flat Washer
x2
x1
2507-CC
1 x 5-1/2 x 45-1/8”
90°
FORT
CONNECT FRAME SECTIONS
3-3/4" Hex Bolt
Lock Washer
Flat Washer
5" Hex Bolt
Lock Washer
Flat Washer
Align braces with pre-drilled holes.
x3
x2
x2
T-Nut x3
Lock
Nut
Flat
Washer
ENSURE THESE
HOLES ARE ON
THIS SIDE.
