Backyard Play Systems 5027 - Page 21

17

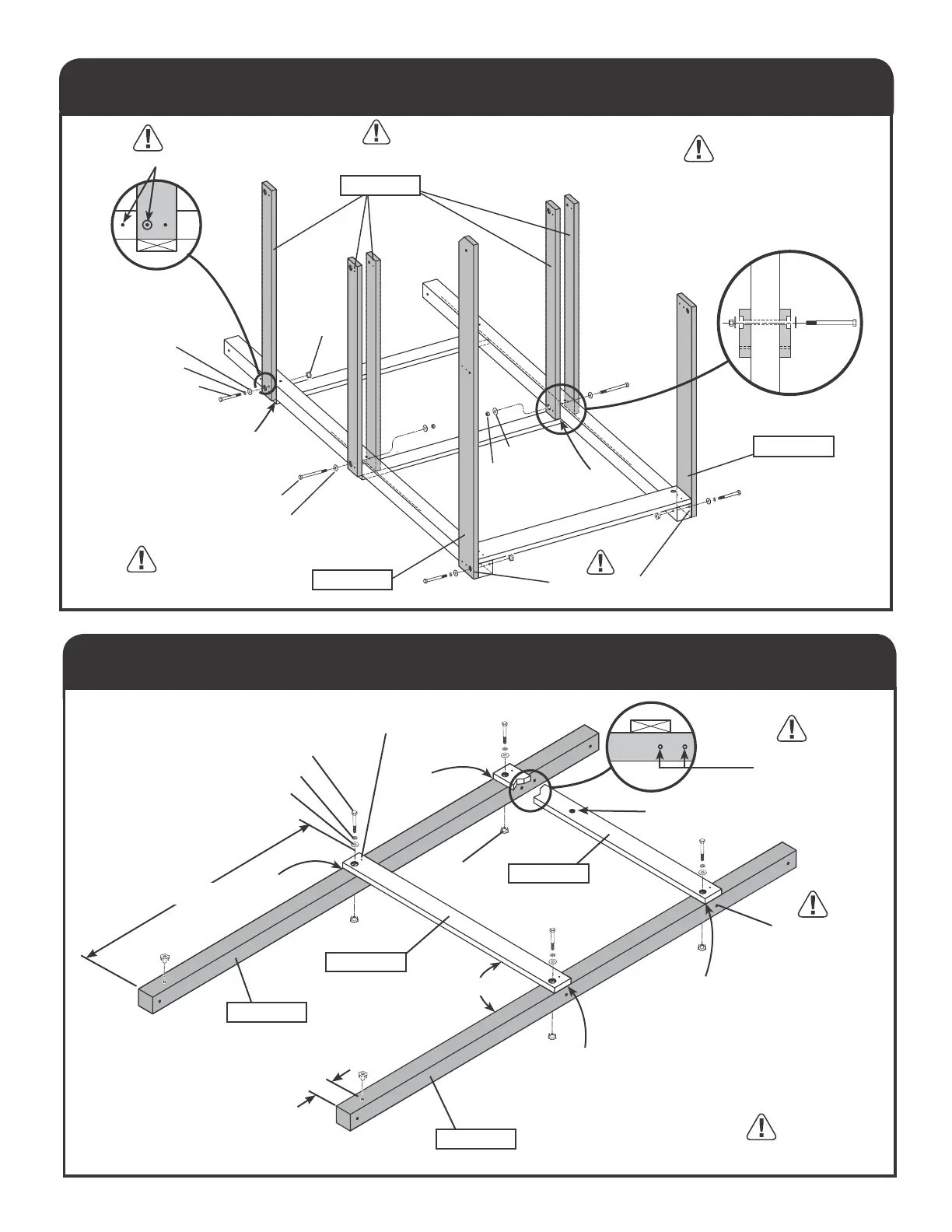

FORT
CORNER POSTS
FORT
CORNER POSTS
x3
Align braces with
pre-drilled holes.
Large holes toward top
Large holes
toward bottom
Flush
Flat Washer
Lock Washer
3-3/4" Hex Bolt
5" Hex Bolt
Flat Washer
x5
1 x 3-1/2 x 45-1/8"
T-Nut
x4
x2
x2
Ensure all bracing is
square before installing
wood screws.
Flush
2501-CC
x1
2508-CC
1 x 5-1/2 x 71-3/4"
x1
1 x 5-1/2 x 45-1/8"
2507-CC
x4
Note 1 hole
location.
Align braces with pre-drilled holes.
Flush
3" Wood Screw
Flush
Flush
Flush
3-3/4" Hex Bolt
Lock Washer
Flat Washer
x1
2543-CC
3 x 3 x 95"
90°
47"
4"
T-Nut
x6
x4
x1
2503-CC
3 x 3 x 95"
x1
1 x 3-1/2 x 45-1/8"
2501-CC
Lock Nut
Flat Washer
Note 2 hole location.
Note 2 hole
location.
Hole for Climbing Rope
x1
1 x 3-1/2 x 45-1/8"
2526-CC
