Backyard Play Systems 5027 - Rock Wall and Ladder Installation

25

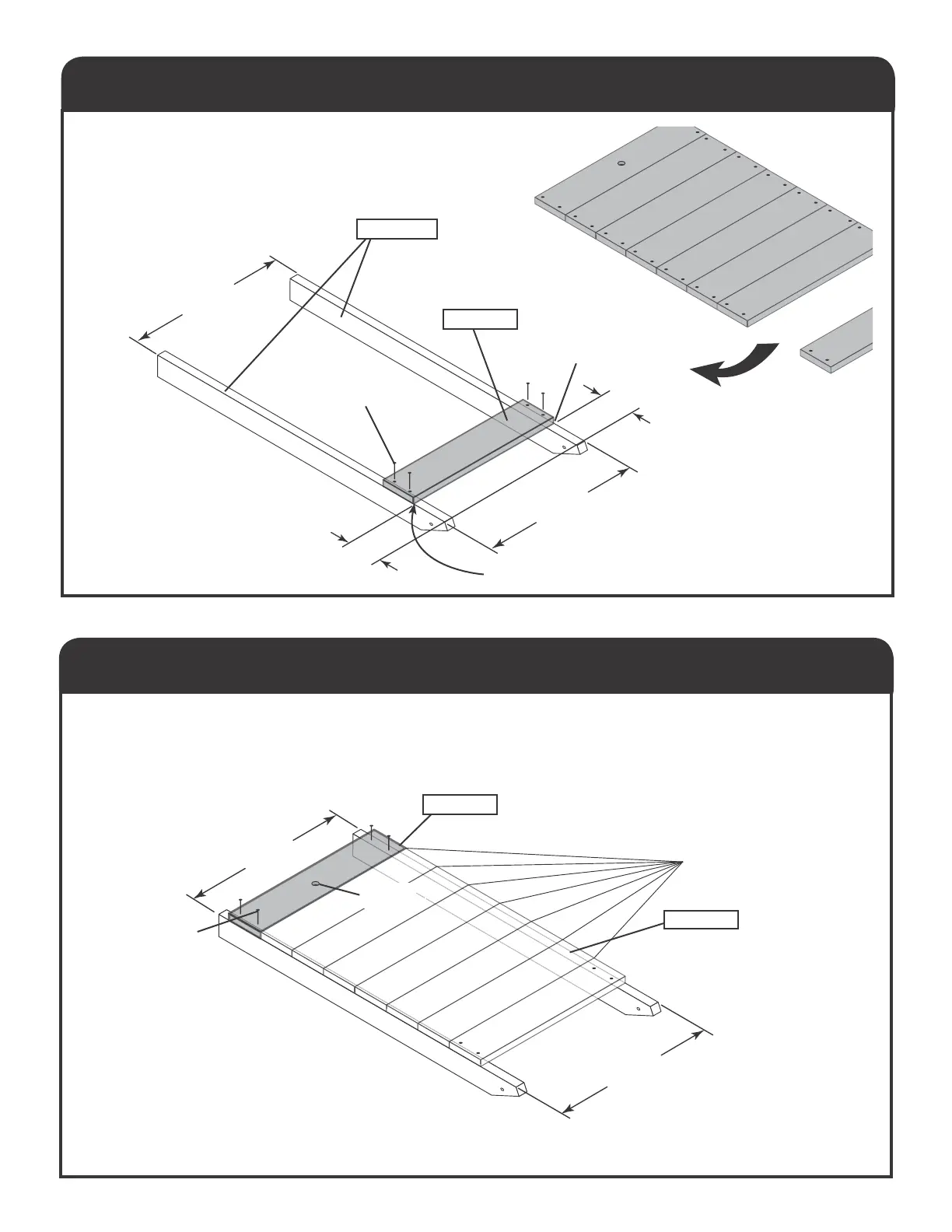

ROCK WALL ASSEMBLE
5-1/4"
23-3/4"
23-3/4"
2-1/2" Wood Screws
x4
Flush
Flush
5-1/4"
Outside
Dimension
Outside
Dimension
ROCK WALL ASSEMBLE
Place planks onto rails as shown, flush to each other.
With all planks flush and snug, secure plank
with hole using screws. Maintain dimension shown.
All flush
2-1/2" Wood
Screws x4
HOLE
23-3/4"
23-3/4"
3/4 x 3-1/2 x 23-3/4"
x1
3/4 x 5-1/2 x 23-3/4"
x6
2519-CC
2527-CC
Align 2520-CC parallel with each other and maintain dimensions as shown.
Position plank 2519-CC as shown and attach to rails with screws.
3/4 x 5-1/2 x 23-3/4"
x1
2519-CC
1-3/8 x 3-3/8 x 51"
x2
2520-CC
