Backyard Play Systems 5027 - Page 31

27

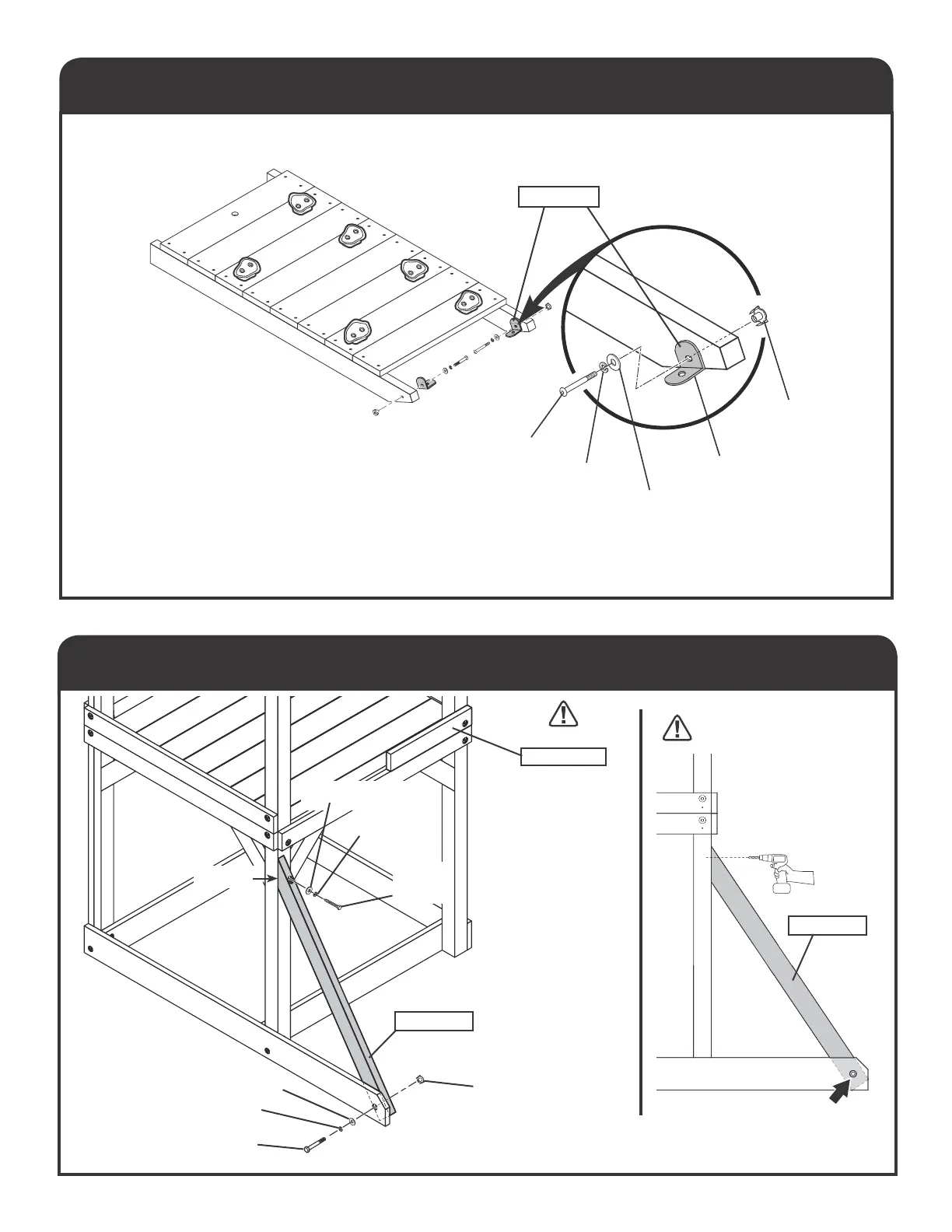

ROCK WALL ASSEMBLE
x2
5/16 x 1-1/2"
Button Head Screw
5/16" Lock Washer
5/16" Flat Washer
L-Bracket
5/16" T-Nut
ANGLE BRACE
INSTALL
2-1/4"
Hex Bolt
Lock Washer
Flat Washer
Align pre-drilled holes.
4"
Lag Bolt
Lock Washer
Flat Washer
x2
2412
Flush
x1
2515-CC
1-3/8 x 3-3/8 x 47-3/4"
x1
1-3/8 x 3-3/8 x 47-3/4"
2515-CC
Pre drill 3/16" pilot holes
2" deep for lag bolt.
1 x 3-1/2 x 19-1/4"
2862-CC
NOTE: 19-1/4"
T-Nut
