Backyard Play Systems 5027 - Page 43

39
Flat Washer
Lock Nut
6-1/4" Carriage Bolt
Torque Washer
x1
x1
x2

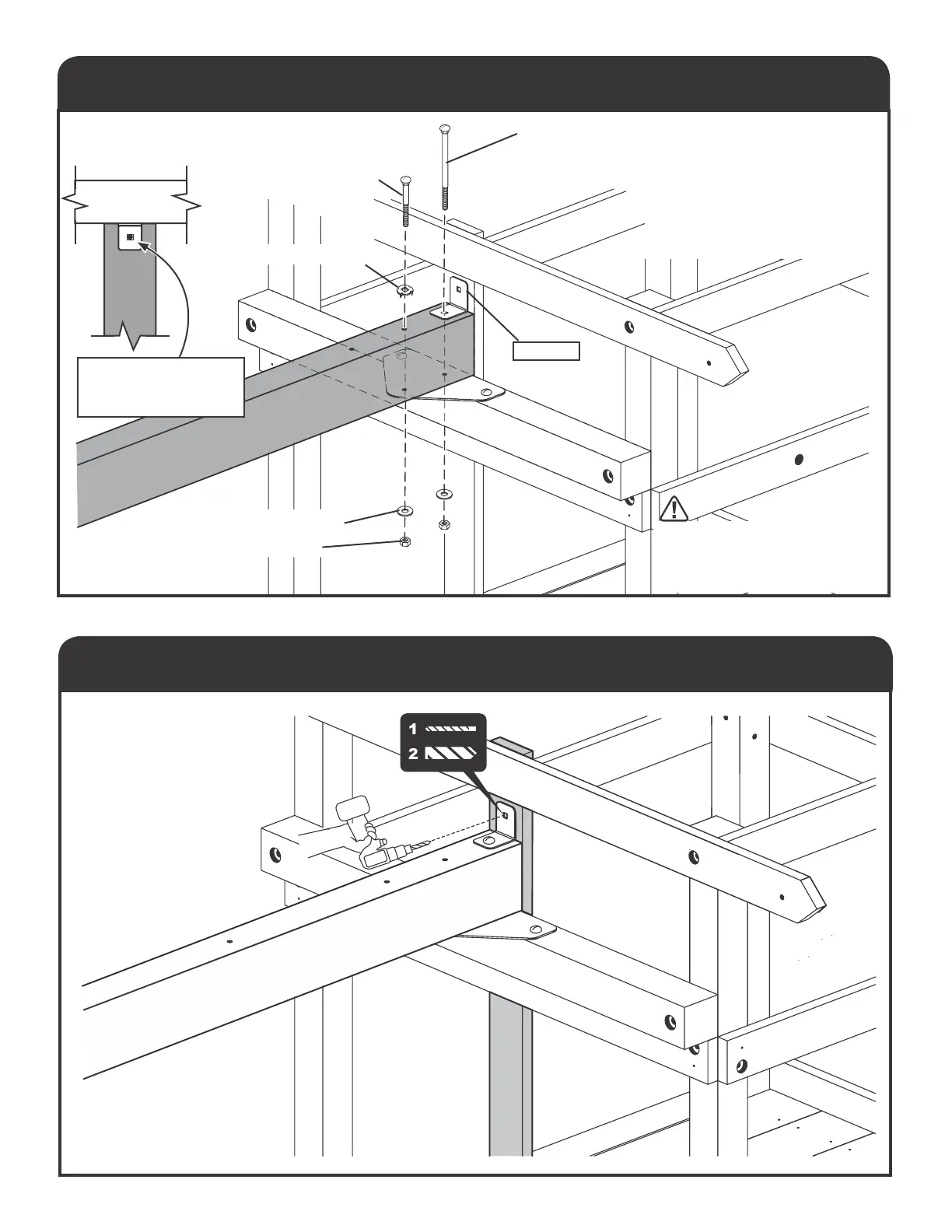

Position swing beam assembly resting
upon plate and align with holes.
2485
x1
NOTE: You may need to tap bolts
with hammer to get though holes.
Clean all debris from bolt threads
before installing lock nuts
NOTE: You may need to tap bolts
with hammer to get through holes.
Clean all debris from bolt threads
before installing lock nuts
Align Square Hole in
Bracket with pre-drilled
hole in swing beam.
SWING BEAM INSTALL
2. Re-drill from opposite
side using 7/16" bit.
1. Pre-drill using 3/16" bit.
SEE PAGE 7
SWING BEAM INSTALL
8-1/2" Carriage Bolt
x1
