38
3-3/4" Carriage Bolt
Flat Washer
Lock Nut
x4
x4
DO NOT FULLY TIGHTEN
CARRIAGE BOLTS AT THIS TIME

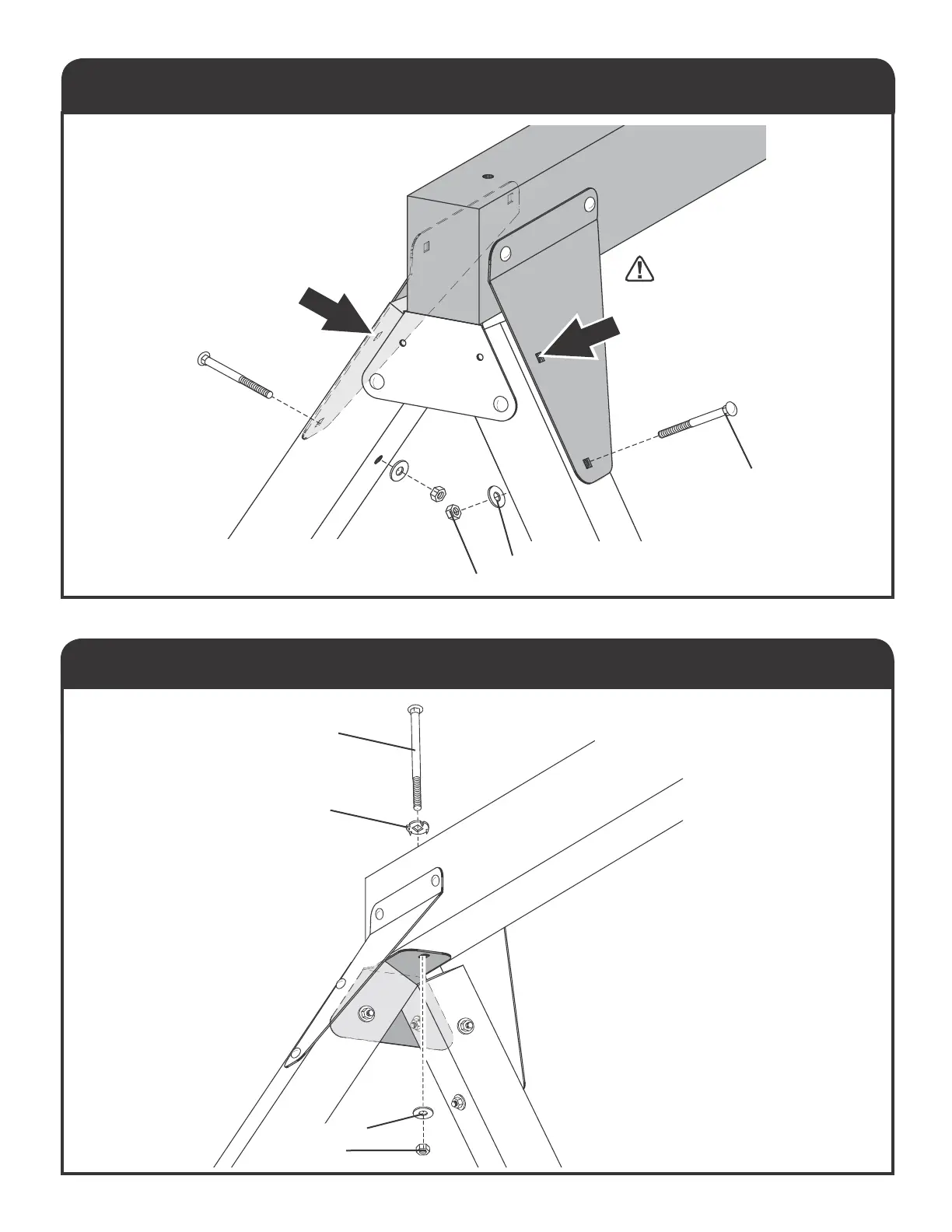

Align holes and insert carriage bolt.
Repeat where arrows are shown.
NOTE: You may need to tap bolts
with hammer to get though holes.
Clean all debris from bolt threads
before installing lock nuts
SWING BEAM ASSEMBLE
Flat Washer
Lock Nut
6-1/4" Carriage Bolt
Torque Washer
You may need to tap with
hammer to get though holes.
SWING BEAM ASSEMBLE
To Next Page
