Backyard Play Systems 5027 - Page 46

42

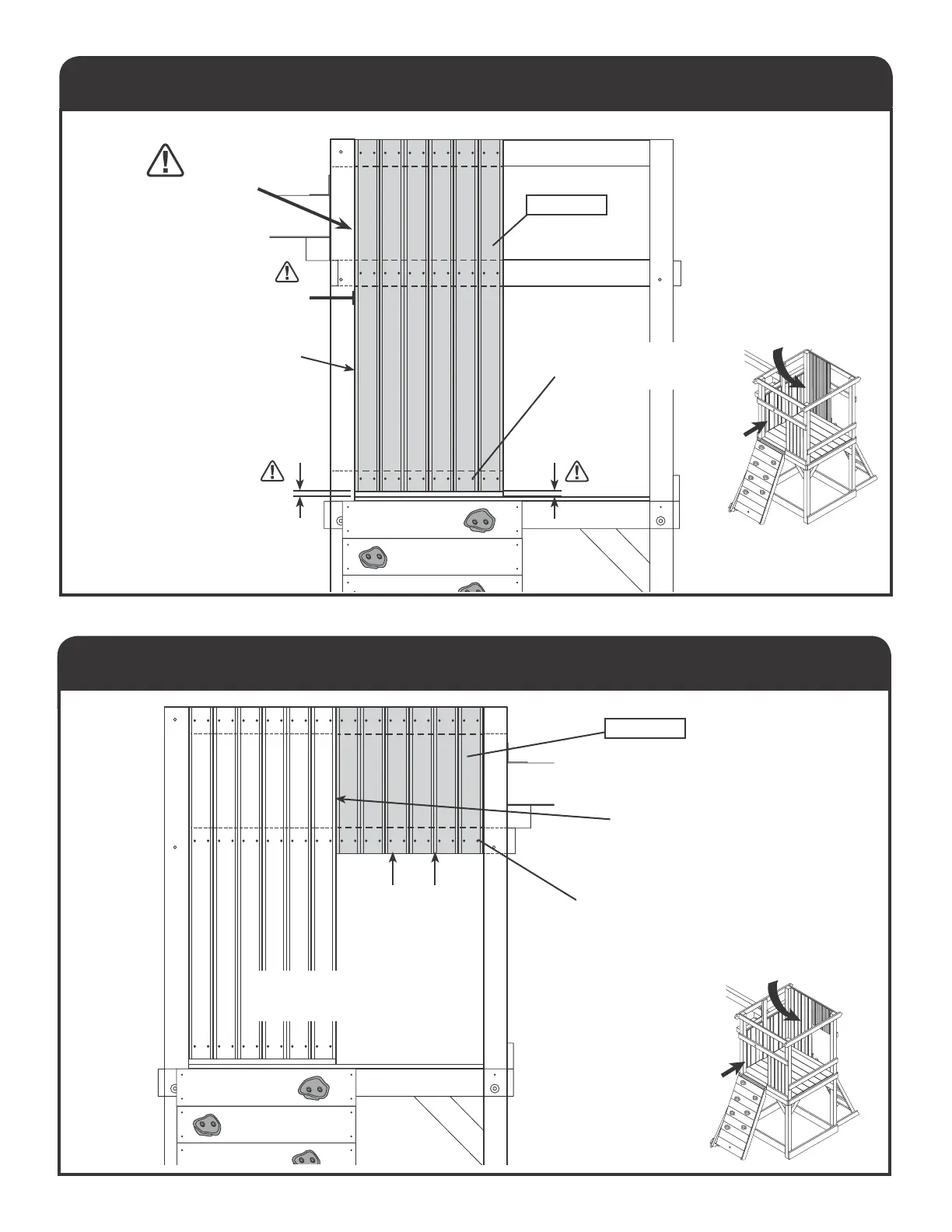

FORT
LADDER-SIDE BALUSTERS 1
FORT
LADDER-SIDE BALUSTERS 2
above deck
boards
1-1/4" Wood Screws
x36
x6
2857-CC
5/8 x 3-1/4 x 46-3/4"
Install end-baluster rst:
Flush tightly against fort
3x3" corner post, 3/4"
above deck boards.
BEGIN
HERE
3/4"
3/4"
Flush
(ALL)
3x3"
INSTALLATION:
FROM INSIDE FORT
INSTALLATION:
FROM INSIDE FORT
VIEW
VIEW
Flush
(ALL)
1-1/4" Wood Screws
x24
x6
2858-CC
5/8 x 3-1/4 x 19-7/16"
Flush along bottom of
Baluster Support
INSIDE VIEW
