52

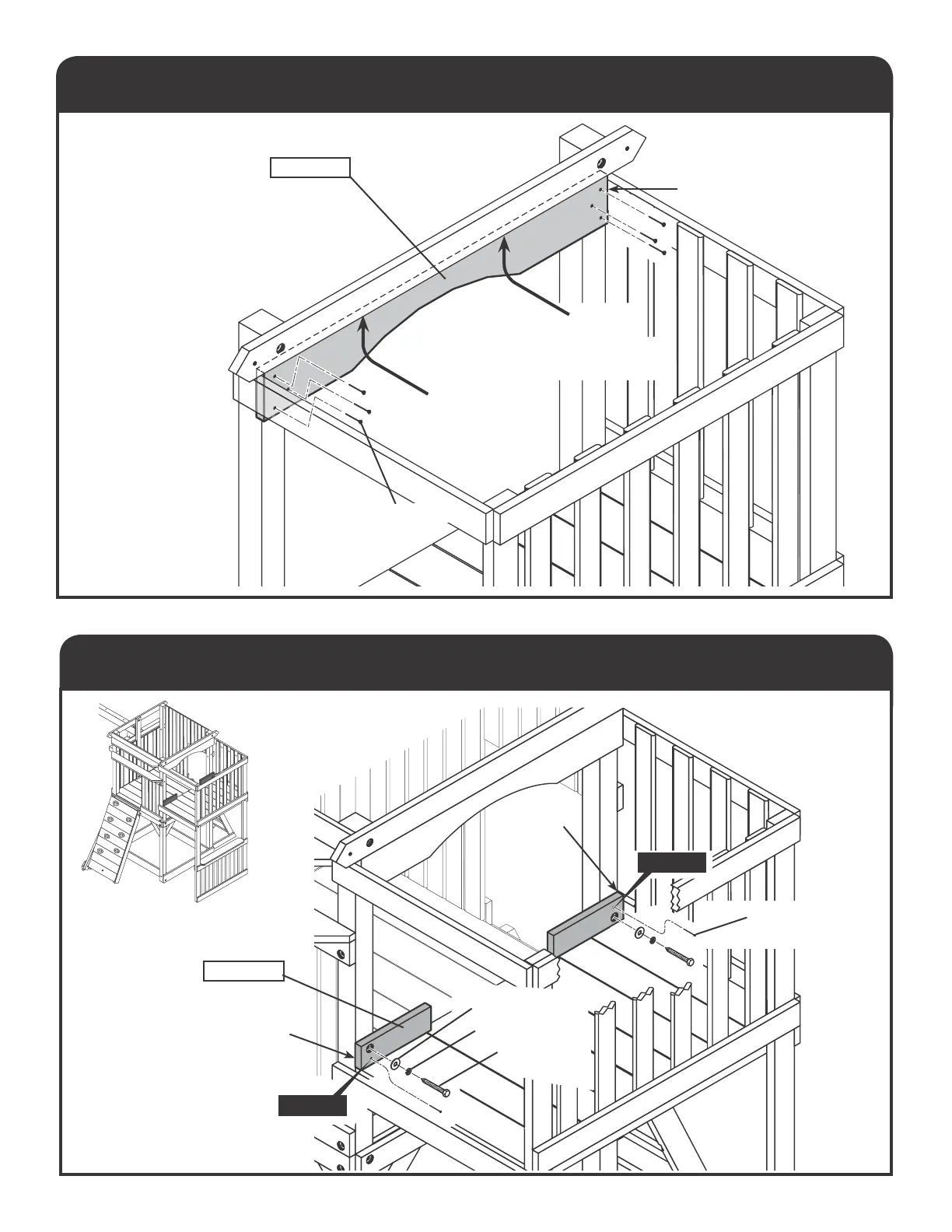

ENTRY ARCH
INSTALL
FORT
BALUSTER SUPPORTS
3" Wood Screws
x6
x1
1 x 5-1/2 x 45-1/8"
2880-CC
Flush
Flush
Flush
Install Entry Arch ush up against
bottom of playset roof rail.
Flush
Flush
3" Wood Screws
x2
x2
3" Lag Bolt
Lock Washer
Flat Washer
x2
2568-CC
1 x 3-1/2 x 12"
Pre Drill 1/8"
Pre Drill 1/8"
