Backyard Play Systems 5027 - Page 55

51

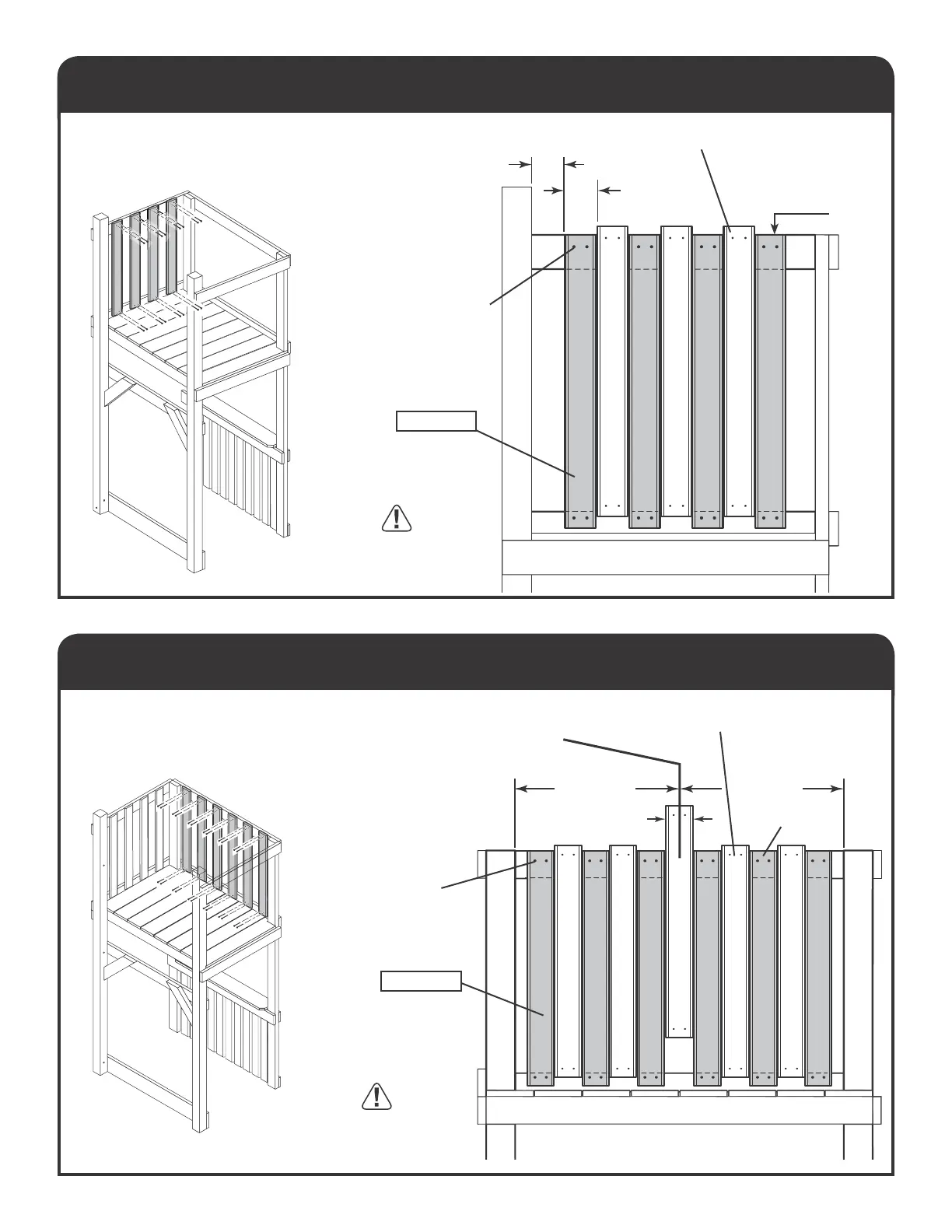

BALUSTERS
INSTALL
BALUSTERS
INSTALL
1-1/4" Wood Screws
x16
Ensure balusters are
spaced evenly before
installing wood screws.
3-1/4" From
Corner Post
3-1/4"
BACK
SIDE
Use a baluster as a spacer to ensure
correct baluster placement.
SPACER SPACER SPACER
Flush
x4
5/8 x 3-1/4 x 29-3/4"
2523-CC
1-1/4"
Wood
Screws
x24
Ensure balusters are
spaced evenly before
installing wood screws.
3-1/4"
RIGHT
SIDE
EQUALEQUAL
Use a baluster as a spacer to
ensure correct baluster placement.
BEGIN MEASURING
AT CENTER SPACER
SPACER SPACER SPACER SPACER
SPACER
Flush
x6
5/8 x 3-1/4 x 29-3/4"
2523-CC
