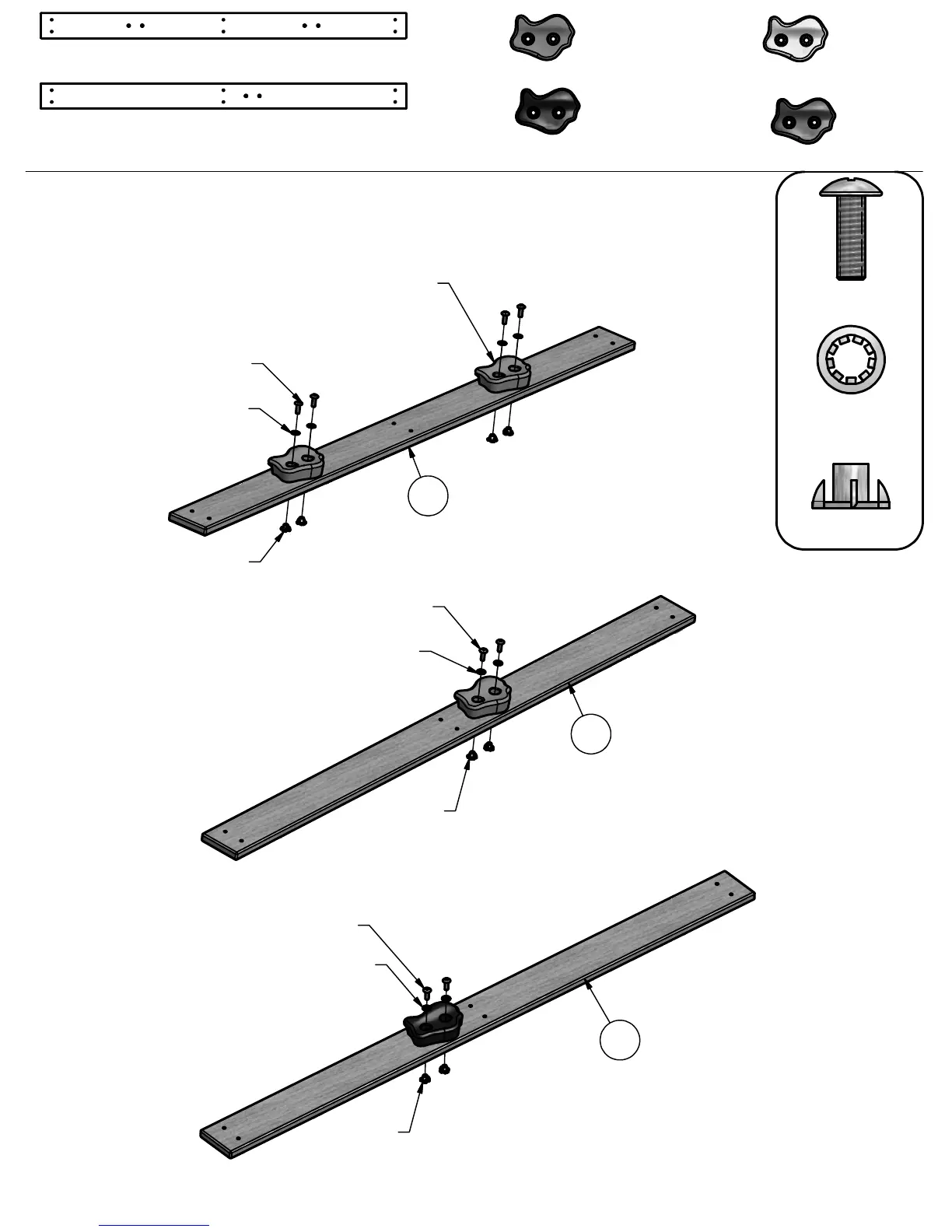

STEP 12
ASSEMBLE T-NUTS INTO BOARDS BEFORE ROCK INSTALLATION.
BOLT PTH 1/4x3/4
(4 PLCS)
WASHER LOCK INT 8x15
(4 PLCS)
T-NUT 1/4
(4 PLCS)
BOLT PTH 1/4x3/4
(2 PLCS)
WASHER LOCK INT 8x15
(2 PLCS)
T-NUT 1/4
(2 PLCS)
- GREEN HC ROCK #2 - A6P00037
(3)
- RED HC ROCK #2 - A6P00039
(2)
- BLUE HC ROCK #1 - A6P00041
(2)
- YELLOW HC ROCK #2 - A6P00043
(2)
M2
M3
M2 - ROCK WALL BOARD - W4L07137
5
/8"x3 3/8"x49" (16x86x1245)
(3)
M3 - ROCK WALL BOARD - W4L07138
5/8"x3 3/8"x49" (16x86x1245)
(3)
ROCK COLOR PLACEMENT IS
CONSUMER CHOICE.
BOLT PTH
1/4x3/4
(18)
WASHER
LOCK INT
8x15
(18)
T-NUT 1/4
(18)
WASHER LOCK INT 8x15
(2 PLCS)
BOLT PTH 1/4x3/4
(2 PLCS)
T-NUT 1/4
(2 PLCS)
M3
QTY. 1
QTY. 2
QTY. 3
