Backyard 1705012 - Final Step

Anchoring Instructions
FINAL STEP
DOUBLE CHECK EVERY BOLT, SCREW AND NUT FOR TIGHTNESS. MAKE SURE EVERY BOARD IS SECURE AND
MAKE SURE THE PLAY SET IS LEVEL.
ENJOY YOUR NEW PLAY SET!
NOTE:
FAILURE TO USE GROUND STAKES CAN VOID WARRANTY & CAUSE INJURY!

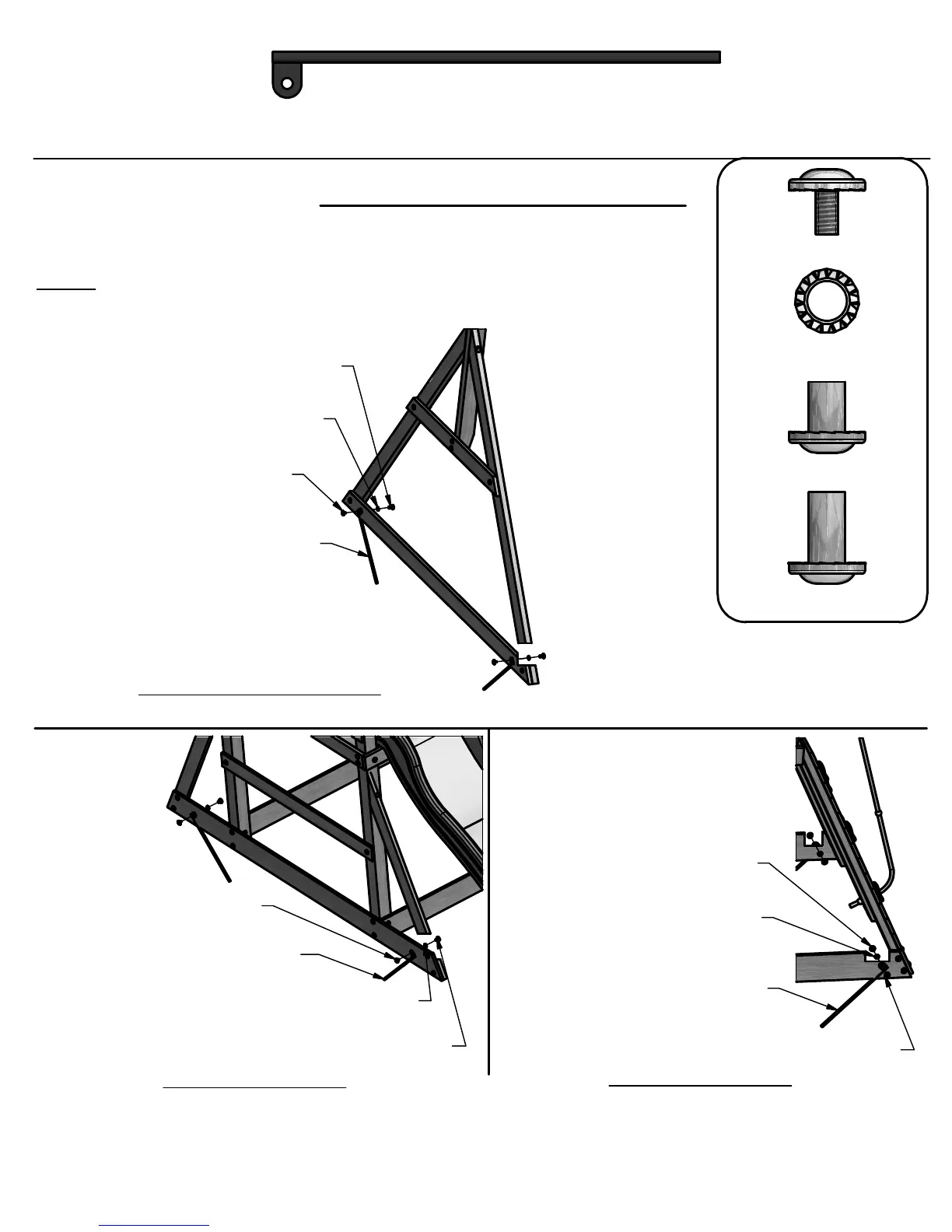

STEP 38
TAP IN GROUND STAKES AT AN APPROXIMATE 45° ANGLE AT THE LOCATIONS SHOWN.
USING GROUND STAKES AS A GUIDE, DRILL 7/16" DIA HOLES.
«
S
P
A
N
I
S
H
BOLT WH 5/16x1/2
(2 PLCS)
GROUND STAKE REBAR
(2 PLCS)
WASHER LOCK EXT 12x19
(2 PLCS)
NUT BARREL WH 5/16x7/8
(2 PLCS)
SWING BEAM GROUND STAKES
GROUND STAKE REBAR
(2 PLCS)
BOLT WH 5/16x1/2
(2 PLCS)
WASHER LOCK EXT 12x19
(2 PLCS)
NUT BARREL WH 5/16x5/8
(2 PLCS)
NUT BARREL WH 5/16x5/8
(2 PLCS)
WASHER LOCK EXT 12x19
(2 PLCS)
GROUND STAKE REBAR
(2 PLCS)
BOLT WH 5/16x1/2
(2 PLCS)
FORT GROUND STAKES
FORT GROUND STAKES
- GROUND STAKE REBAR - A4M00527
(6)
NUT BARREL
W
H 5/16x5/8
(4)
NUT BARREL
WH 5/16x7/8
(2)
WASHER
LOCK EXT
12x19
(6)
BOLT WH
5
/16x1/2
(6)
