Backyard GBC1255W - Exploded View & Hardware

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
For great recipes and tips, visit recipes.uniflame.com
page no.
3
1
Parts List
1
Lid Handle
55-22-326
2
Temperature Gauge
55-09-146
3
Warming Rack
55-10-152
4
Cooking Grid (3)
55-22-327
5
Lid*
55-22-328
6
Heat Plate (5)
55-10-156
7
Grill Body Assembly*
55-22-329
8
Burner (5)*
55-22-330
9
Side Burner Grid
55-10-047
10
Side Burner
55-22-331
11
Control Knob Bezel (6)*
55-09-006
12
Ignitor Button*
55-07-322
13
Control Knob (6)
55-11-013
14
Left Side Shelf
55-22-332
15
Right Side Shelf
Assembly*
55-22-333
16
Regulator/Hose
Assembly*
55-22-334
17
Grease Tray
55-22-335
18
Grease Cup
55-11-018
19
Upper Front Cart
Frame
55-22-336
20
Magnet (2)
55-10-174
21
Left Cart Frame
55-22-337
22
Door Handle (2)
55-08-185
23
Left Door
55-22-338
24
Right Door
55-22-339
25
Rear Cart Frame
55-22-340
26
RIght Cart Frame
55-22-341
27
LP Gas Tank Retainer
Bolt*
55-11-032
28
Base
55-22-342
29
Lighting Hook
55-10-173
30
Locking Wheel (2)
55-07-528
31
Wheel (2)
55-07-506
32
Lower Front Cart
Frame
55-22-343
* Pre assembled

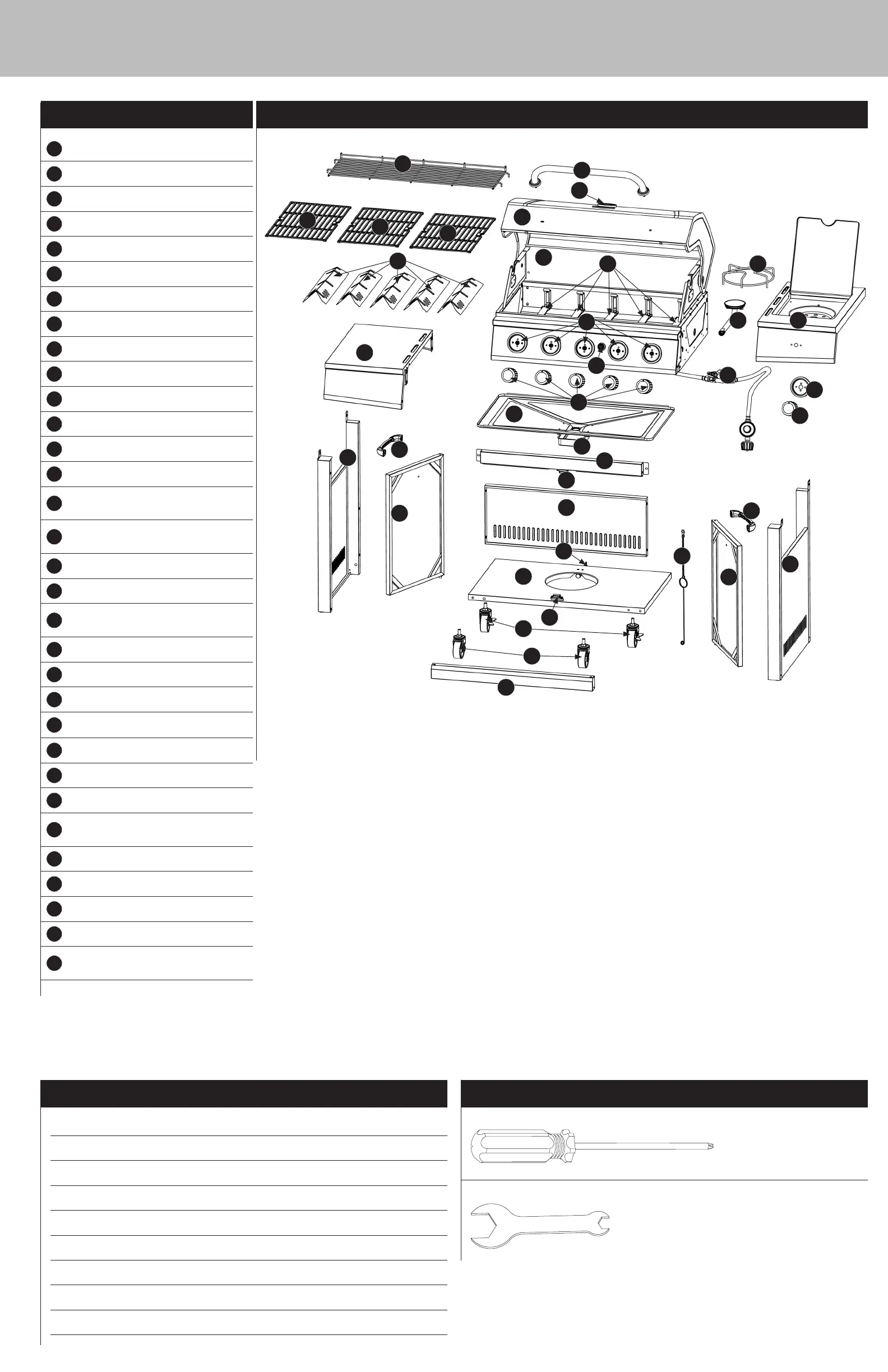

Exploded View
5
3
4
4
4
7
9
10
11
13
14
16
15
17
18
19
20
22
22
21
23
24
26
28
29
25
32
2
6
8
11
12
13
20
30
31
27
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver 1 pc
M10-M6 Wrench 1 pc
Hardware
A
Screw
M4x10 Nickel Plated Phillips Truss Head
10 pcs
B
Screw
M6x16 Nickel Plated Phillips Truss Head
22 pcs
C
Bolt
M6x16 Nickel Plated Phillips Truss Head
8 pcs
D
Wing Nut
M6 Nickel Plated
2 pcs
E
Washer
ø4.2 Nickel Plated
4 pcs
F
Washer
ø6.4 Nickel Plated
20 pcs
G
Lock Washer
ø6.5 Nickel Plated
20 pcs
H
Pin
Chrome Plated
2 pcs
I
AA Battery 1 pc
