Backyard GBC1255W - Page 6

Outdoor LP Gas Barbecue Grill Model No. GBC1255W / BY12-084-029-98

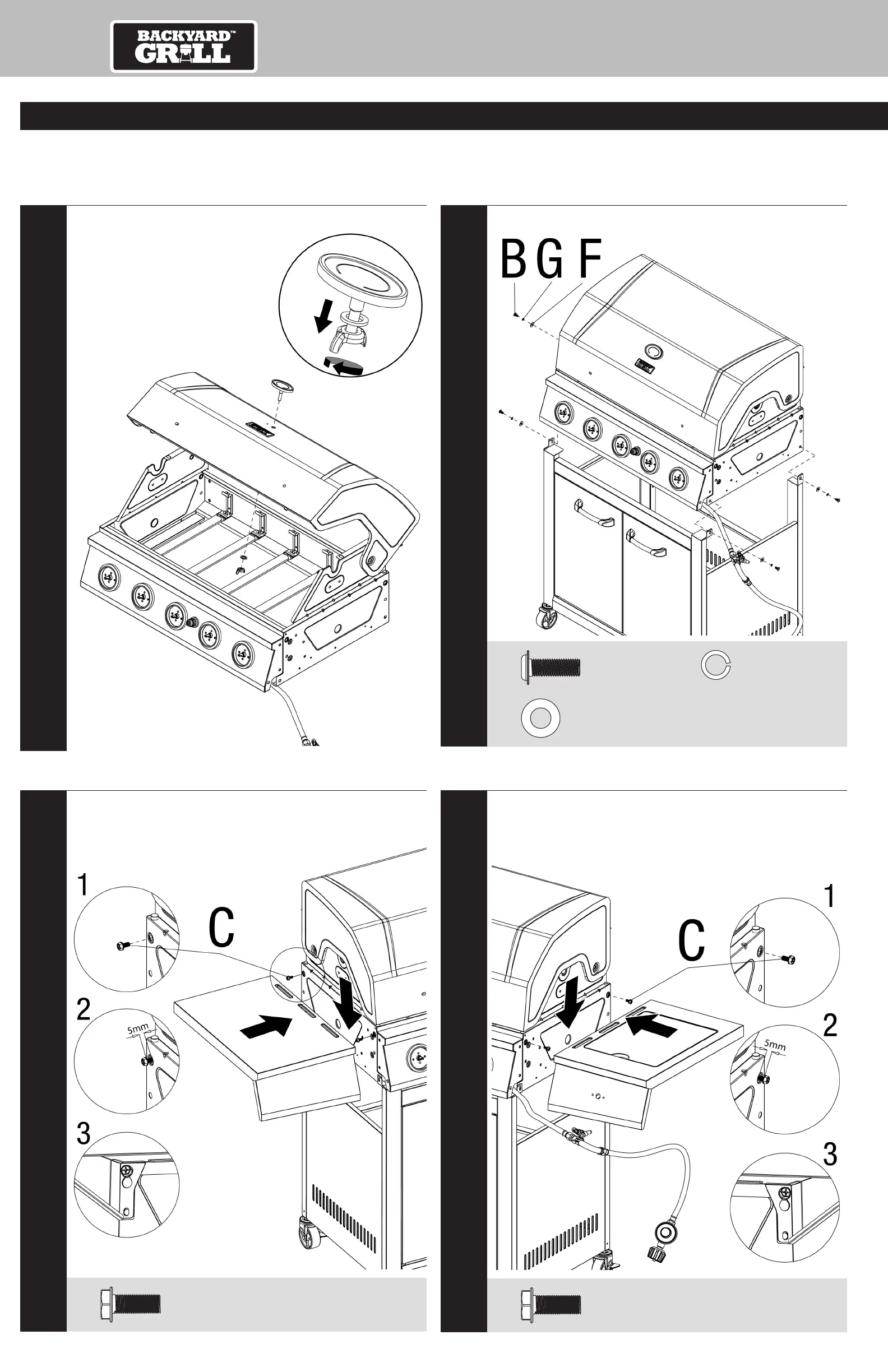

Assembly Instructions (continued)
11
Attach Left Side Shelf Assembly
Note: Leave 5 mm of bolt threads exposed.
C
x 2
12
Attach Right Side Shelf Assembly
Note: Leave 5 mm of bolt threads exposed.
C
x 2
10
Attach Grill Body Boss
B
x 4
F
x 4
G
x 4
9
Attach Temperature Gauge
