Backyard GBC1462W-C Lockport - Page 4

Outdoor LP Gas Barbecue Grill
Model No. GBC1462W-C / LOCKPORT
4
1
16
23
23
22
26
Parts List
1
Warming Rack
55-24-111
2
Temperature Gauge
55-23-049
3
Cooking Grid (3)
55-24-112
4
Brand Plate*
55-22-391
5
Lid*
55-23-051
6
Lid Handle*
55-23-052
7
Heat Plate (4)
55-10-156
8
Burner (4)*
55-23-053
9
Grill Body Assembly*
55-23-054
10
Side Burner Grid
55-10-047
11
Side Burner
55-23-055
12
Towel Bar
55-07-548
13
Tool Hook (4)*
55-07-729
14
Left Side Shelf
55-23-056
15
Control Knob Bezel (5)*
55-09-006
16
Control Knob (5)
55-23-057
17
Regulator/Hose
Assembly*
55-24-113
18
Right Side Shelf
55-23-058
19
Left Side Shelf Front
Panel
55-23-059
20
Right Side Shelf Front
Panel
55-23-060
21
Grease Tray
55-23-061
22
Grease Cup
55-11-018
23
Door Handle (2)
55-23-062
24
Left Door
55-23-063
25
Left Cart Frame
55-23-064
26
Rear Cart Frame
55-23-065
27
Right Cart Frame
55-23-066
28
Lighting Hook
55-07-331
29
Right Door
55-23-107
30
Base
55-23-108
31
LP Gas Tank Retainer
Bolt*
55-11-032
32
Magnet
55-10-174
33
Front Cart Frame
55-23-109
34
Caster (2)
55-07-506
35
Locking Caster (2)
55-07-528
* Pre-assembled

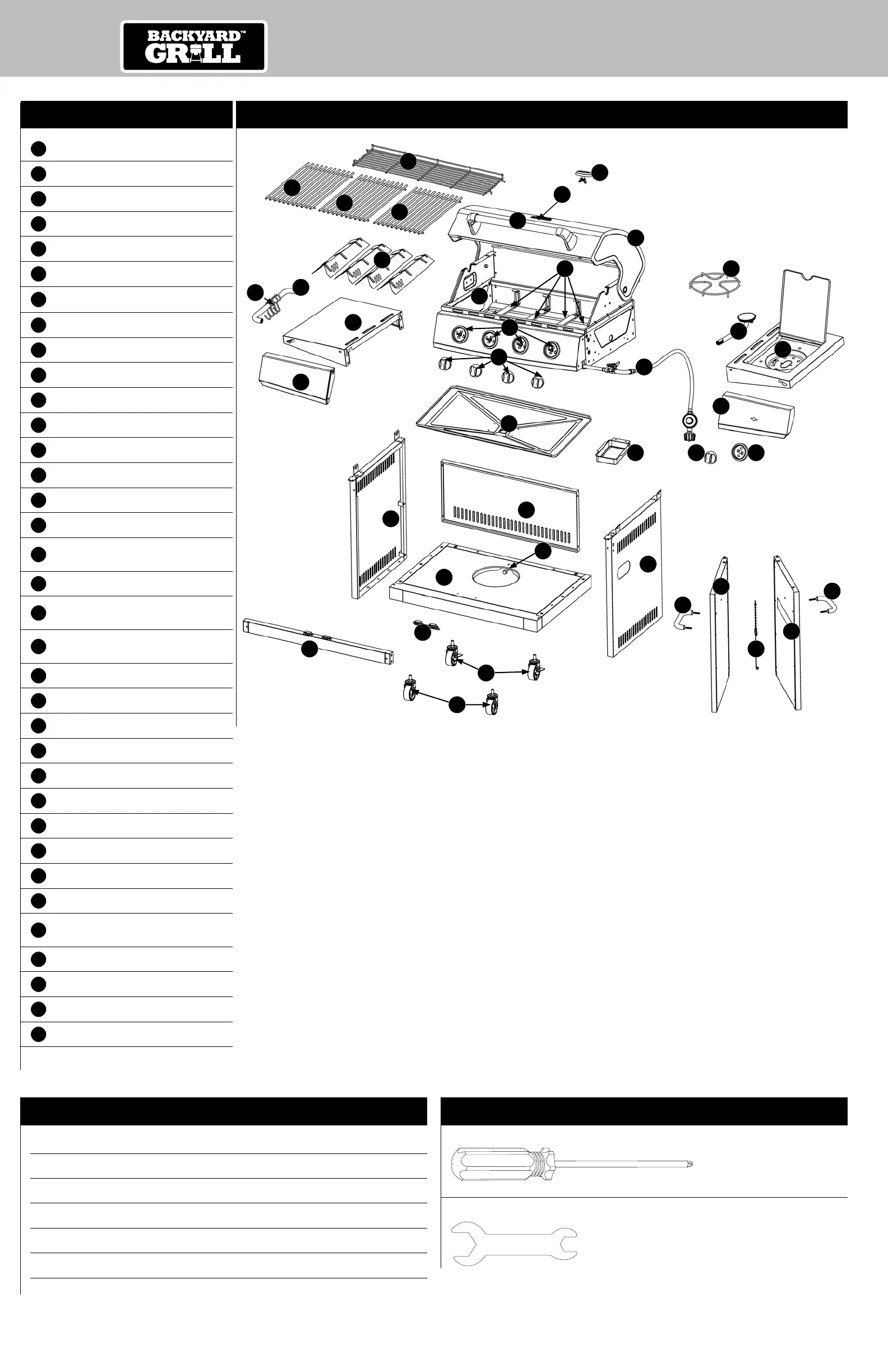

Expanded View
33
27
15
29
19
32
14
9
3
3
3
6
10
5
7
11
20
24
21
4
25
28
30
2
17
18
12
13
8
34
35
31
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver 1 pc
M10-M6 Wrench 1 pc
Hardware
A
Screw
M4x12 Nickel Plated Phillips Truss Head
10 pcs
B
Screw
M6x15 Nickel Plated Phillips Truss Head
20 pcs
C
Screw
M6x15 Nickel Plated Phillips Hex Head
18 pcs
D
Wing Nut
M6 Nickel Plated
4 pcs
E
Washer
ø6.5 Nickel Plated
26 pcs
F
Lock Washer
ø6.5 Nickel Plated
16 pcs
