Backyard GBC1646WRS - Expanded View & Hardware

Outdoor LP Gas Barbecue Grill
Model No. BY16-101-003-05
4
®
1
16
27
Parts List
1
Lid Handle
55-24-831
2
Temperature Gauge
55-24-431
3
Warming Rack
55-24-832
4
Cooking Grid (3)
55-24-833
5
Lid*
55-24-834
6
Heat Plate (4)
55-24-835
7
Burner (4)*
55-24-836
8
Grill Body Assembly*
55-24-837
9
Side Burner Grid
55-10-047
10
Side Burner
55-24-838
11
Right Side Shelf
55-24-839
12
Control Knob
Bezel (5)*
55-09-006
13
Control Knob (5)
55-24-149
14
Regulator/Hose
Assembly*
55-23-033
15
Side Burner Electrode*
55-08-420
16
Grease Cup
55-11-018
17
Left Side Shelf
55-24-840
18
Bottle Opener*
55-23-037
19
Left Cart Frame
55-24-841
20
Grease Tray
55-24-842
21
Rear Cart Frame Support
55-24-843
22
Right Cart Frame
55-24-844
23
Foot (2)
55-23-043
24
Cart Frame Support
Wire (2)
55-24-845
25
Lighting Hook*
55-07-331
26
Wheel (2)
55-07-363
27
LP Gas Tank Retainer
Wire
55-23-040
28
Axle
55-24-846
29
Upper Front Panel
55-24-847
30
Lower Front Panel
55-24-848
* Pre-assembled

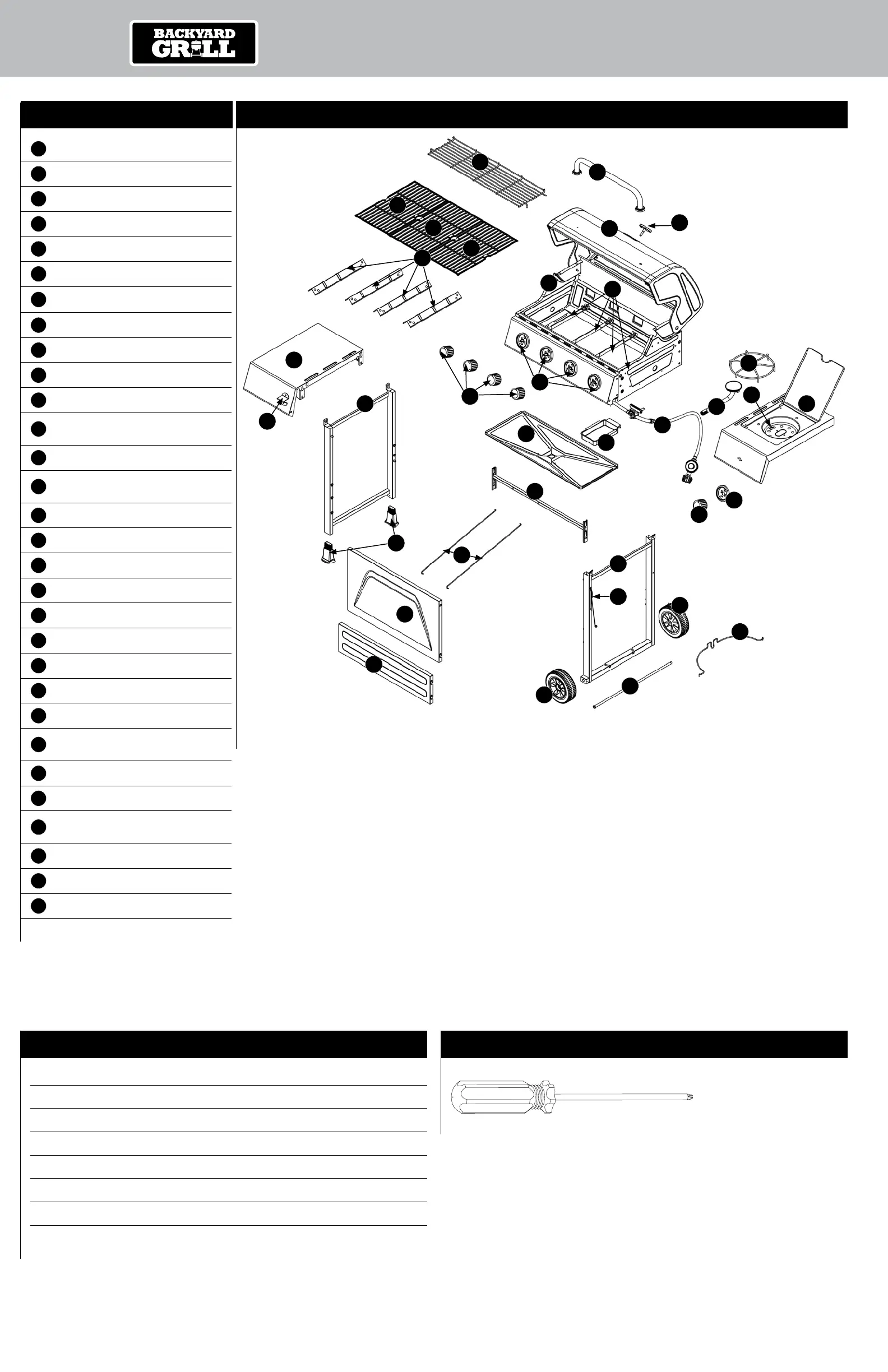

Expanded View
28
17
20
14
3
9
4
4
4
5
10
11
21
25
22
24
8
29
2
18
15
19
23
7
12
12
13
13
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver 1 pc
Hardware
A
Screw
ST4.8x10 Nickel Plated Phillips Truss Head
2 pcs
B
Screw
M4x10 Nickel Plated Phillips Truss Head
4 pcs
C
Screw
M6x20 Nickel Plated Phillips Truss Head
2 pcs
D
Bolt
M6x16 Nickel Plated Phillips Hex Head
14 pcs
E
Washer
ø6.4 Nickel Plated
6 pcs
F
Lock Washer
ø6.5 Nickel Plated
6 pcs
G
Plug
Black
1 pc
6
30
26
26
