Operating Instructions
Checking for Leaks
Burner Connections
1. Make sure the regulator hose and valve connections are securely fastened to the burner and the
tank.
2. Visually check the connection between the burner/venturi tube and orifice.
3. Make sure the burner/venturi tube fits over the orifice.
W WARNING: Failure to inspect this connection or follow these instructions
could cause a fire or an explosion which can cause death, serious bodily
injury or damage to property.
4. Please refer to diagram for proper installation (Figure 1).
5. If the burner/venturi tube does not rest flush to the orifice, as shown, please contact
1.800.694.0013 for assistance.
Tank/Gas Line Connection
1. Make 2-3 oz. of leak detection solution by mixing one part liquid dishwashing soap with three
parts water.
2. Make sure control knobs are in the “
OFF” position (Figure 2).
3. LP: Connect LP gas tank per “Installing LP Gas Tank” section.
NG: Connect NG main line per “Installing Natural Gas Line” section.
4. LP: Turn LP gas tank valve to “OPEN.”
NG: Turn “ON” natural gas main valve.
5. Spoon several drops of solution, or use a squirt bottle, at all “X” locations (Figures 1 and 3).
a. LP: If any bubbles appear, turn LP gas tank valve to “CLOSED,” reconnect and re-test.
NG: If any bubbles appear, turn natural gas main valve “OFF,” reconnect and re-test.
b. LP: If you continue to see bubbles after several attempts, turn LP gas tank valve to “CLOSED”
and disconnect LP gas tank, per “Disconnect LP Gas Tank” section. Contact 1.800.694.0013 for
assistance.
NG: If you continue to see bubbles after several attempts, turn natural gas main valve to “OFF.”
Disconnect natural gas line and contact 1.800.694.0013 for assistance.
c. LP: If no bubbles appear after one minute, turn LP gas tank valve to “CLOSED,” wipe away
solution and proceed.
NG: If no bubbles appear after one minute, turn natural gas main valve to “OFF,” wipe away
solution and proceed.
Figure 3
X
X
X
X
X
Operating Main Burners
Lighting
W CAUTION: Keep outdoor gas cooking appliance area clear and free from combustible materials, gasoline
and other flammable vapors and liquids.
W CAUTION: Do NOT obstruct the flow of combustion and ventilation air.
W CAUTION: Check and clean burner/venturi tubes for insects and insect nests. A clogged tube can lead to a
fire.
W CAUTION: Attempting to light the burner with the lid closed may cause an explosion.
First Use
1. Make sure all labels, packaging and protective films have been removed from the grill.
2. Remove manufacturing oils before cooking on this grill for the first time by operating the grill for at least 15 minutes on
(HIGH) with the lid
closed. This will “heat clean” the internal parts and dissipate odors.
1. Open lid.
2. Check for obstructions of airflow to the burners. Spiders, insects and webs can clog the burner/venturi tube. A clogged burner tube can
lead to a fire.
3. All control knobs must be in the “
OFF” position (Figure 2).
4. LP: Connect LP gas tank per “Installing LP Gas Tank” section.
NG: Connect NG main line per “Installing Natural Gas Line” section.
5. LP: Turn LP gas tank valve to “OPEN.”
NG: Turn natural gas main valve to “ON.”

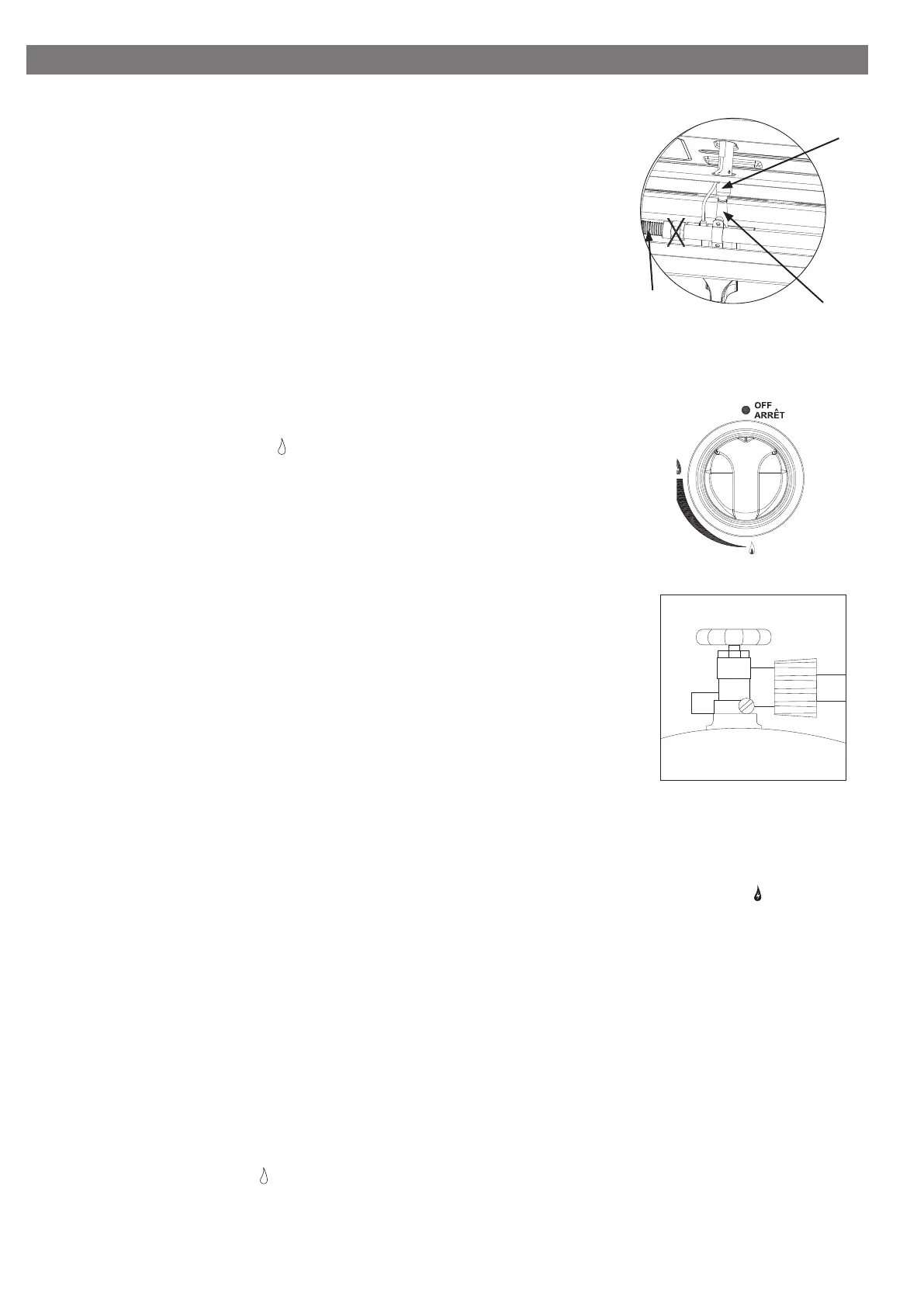

Figure 1：Main Burners
Burner/
Venturi Tube
LP Gas
Valve with
Orifice
LP Gas
Connection
Figure 2
To Next Page
