Backyard GBT1612W - Page 6

Outdoor LP Gas Barbecue Grill
Model No. BY16-103-002-02
6
®
Assembly Instructions (continued)
5

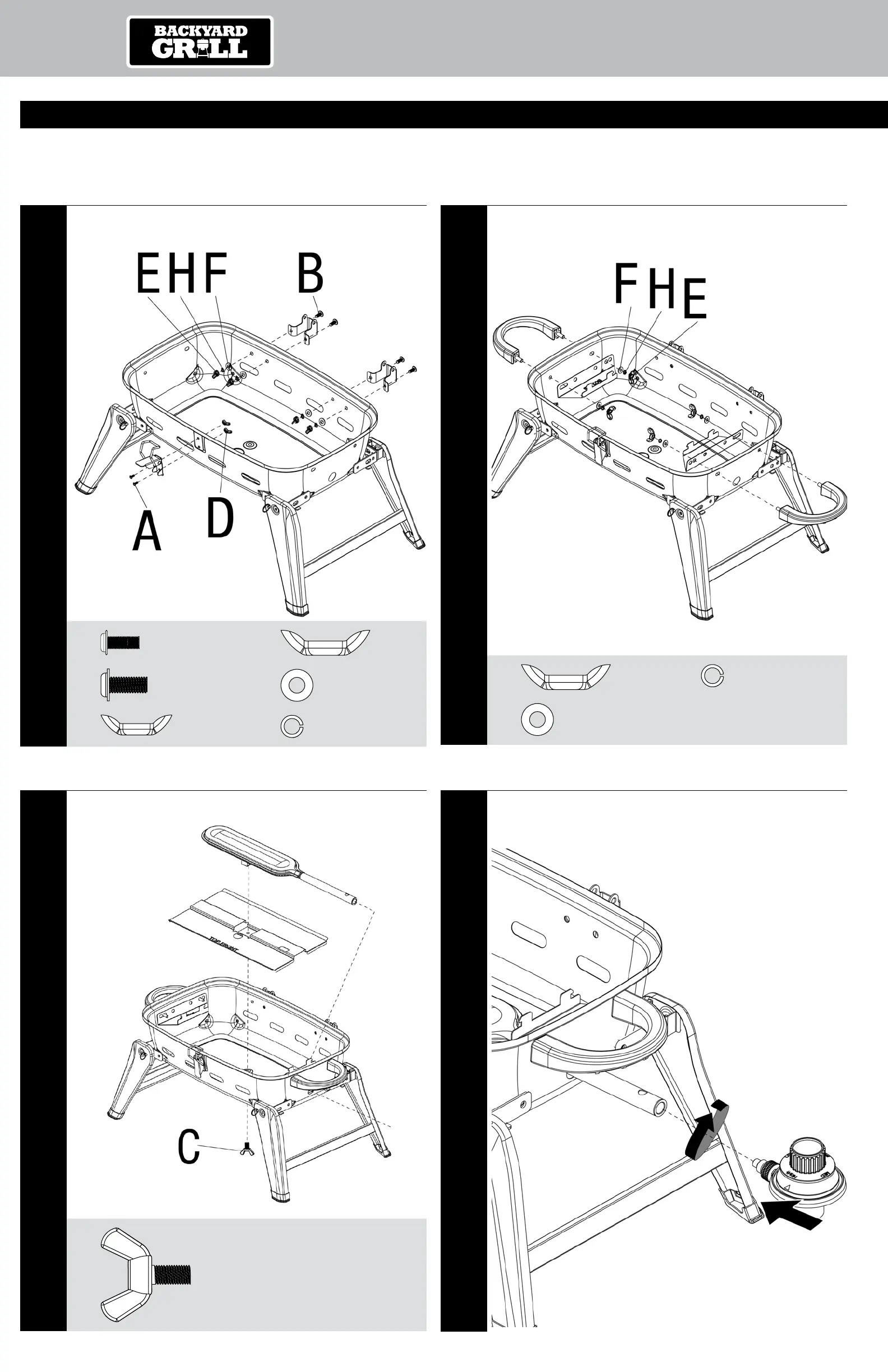

Attach Bottom Hinges and Lock
A
x 2
B
x 4
D
x 2
E
x 4
F
x 4
H
x 4
6
Attach Side Handles and Heat Plate Supports
E
x 4
F
x 4
H
x 4
7
Attach Heat Shield and Burner
C
x 1
8
Attach Regulator/Control Knob
Note: Once attached, the regulator/control knob will freely rotate to accomodate for
the LP gas tank.
