Backyard PRO - Step 11: Back Panel Assembly; Step 12: Lid Hinges and Handle Assembly

11
Assembly Instrucons

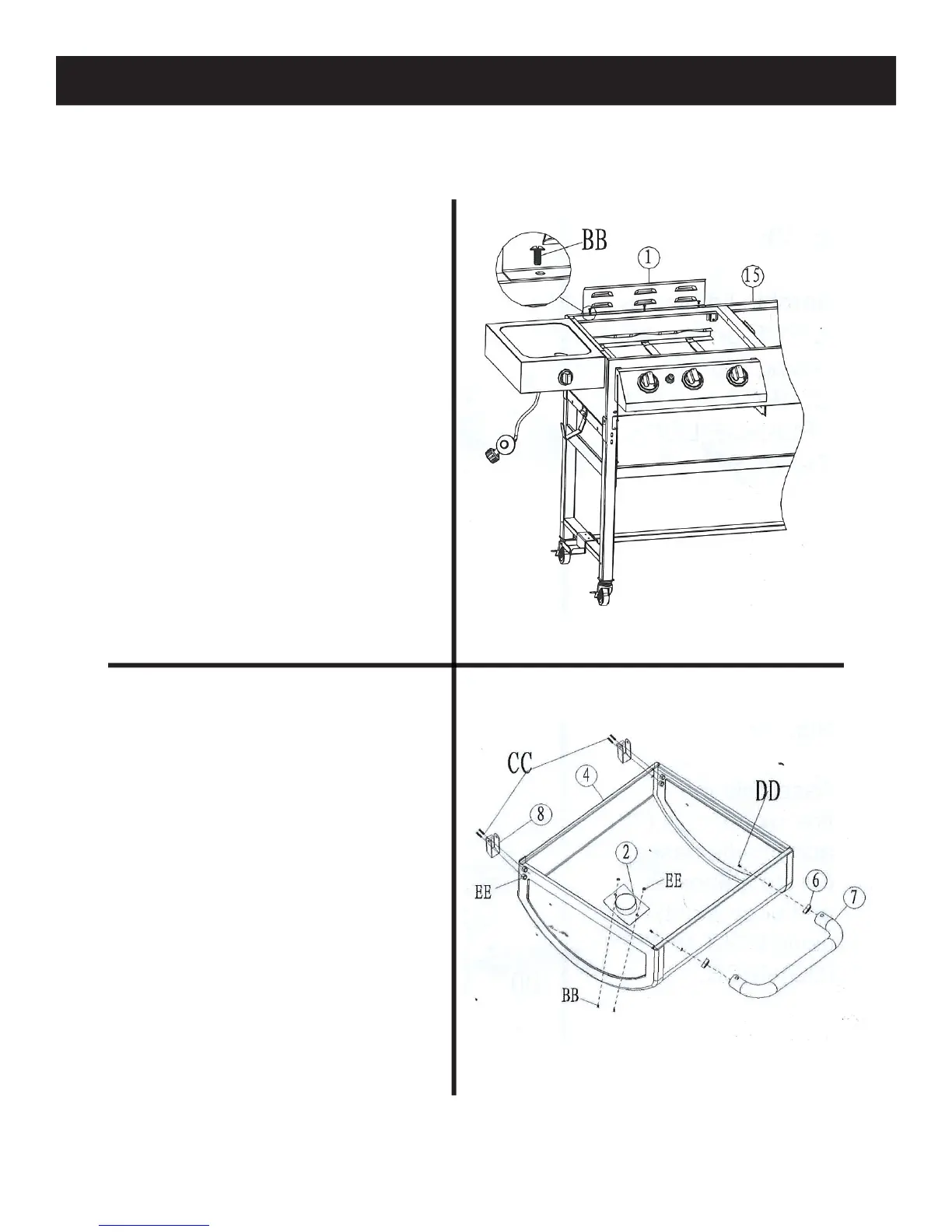

Step 11
Assemble back panel (1) to back
side of gas side using BOLT M6*12
(BB) - 3 PCS.
Step 12
Assemble lid hinges (8) - 2 PCS on
charcoal lid (4) using M6*40 (CC) - 4
PCS. and NUT M6 FLANGE LOCK (EE)
- 4 PCS.
Aach the charcoal stack (2) - 1 PC on
charcoal lid using BOLT M6*12 (BB) -
2 PCS and NUT M6 FLANGE LOCK (EE)
- 2 PCS.
Assemble the lid handle (7) to
charcoal lid using the preinstalled
screw that comes with the handle.
Remove screw from lid handle then
place lid handle base (6) as shown.
