PAGE 22
-TAIL WHEEL ASSEMBLY-

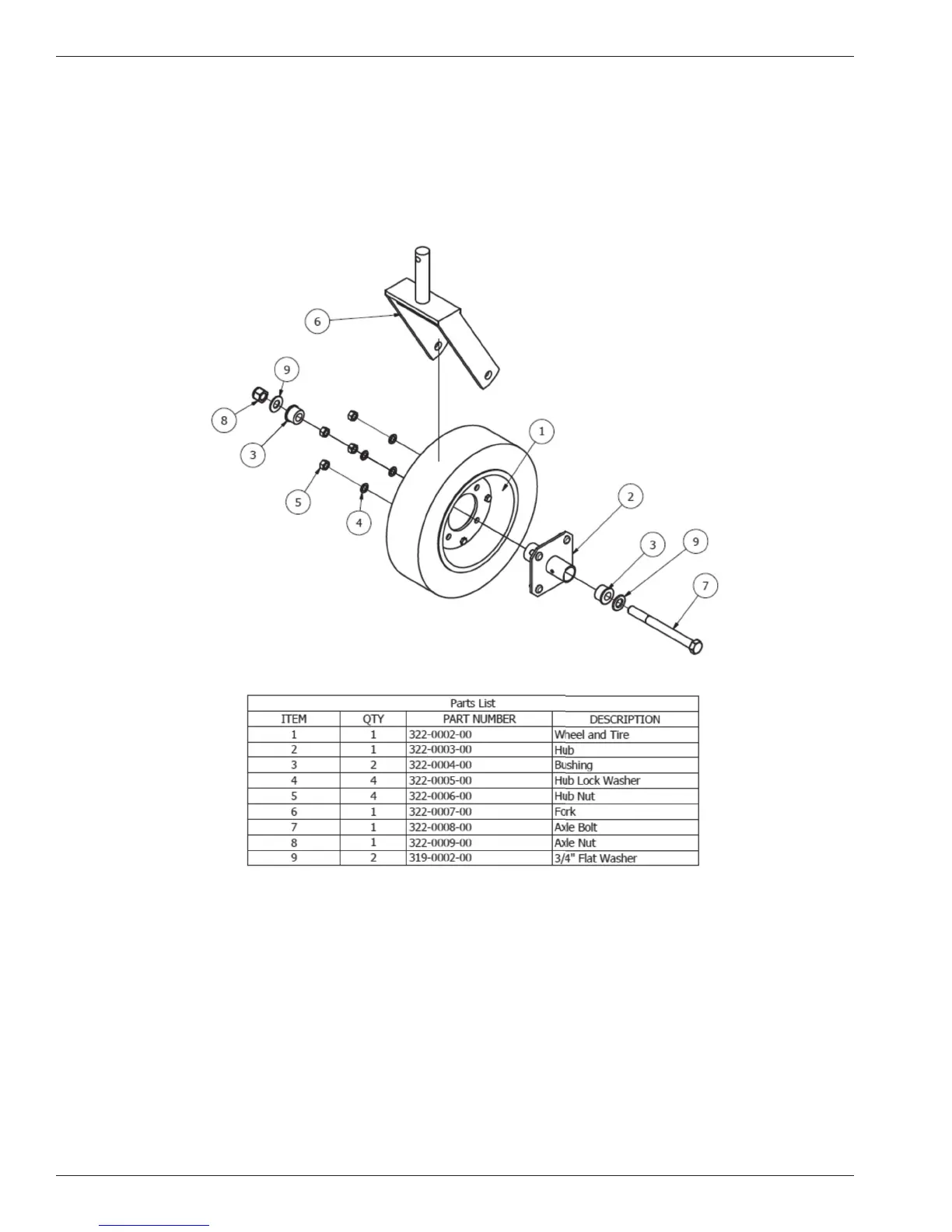

Notes: a) Reference item numbers below for tail wheel assembly.
b) Bushings (3) are pre-installed in Hub (2).
■ Secure Hub (2) to Wheel and Tire (1) using four Hub Lock Washers (4) and four Hub Nuts (5).
Tighten to 50 ft-lbs.
■ Insert 3/4˝ Axle Bolt (7) through the following parts in the order given: either hole of Fork (6); 3/4˝
Flat Washer (9); Hub (2); 3/4˝ Flat Washer (9); remaining hole of Fork (6). Secure with 3/4˝ Axle Nut
(8). Tighten until wheel no longer spins freely, then back off just enough to allow it to do so.
