Bad Boy MZ MAGNUM User Manual

PAGE 50

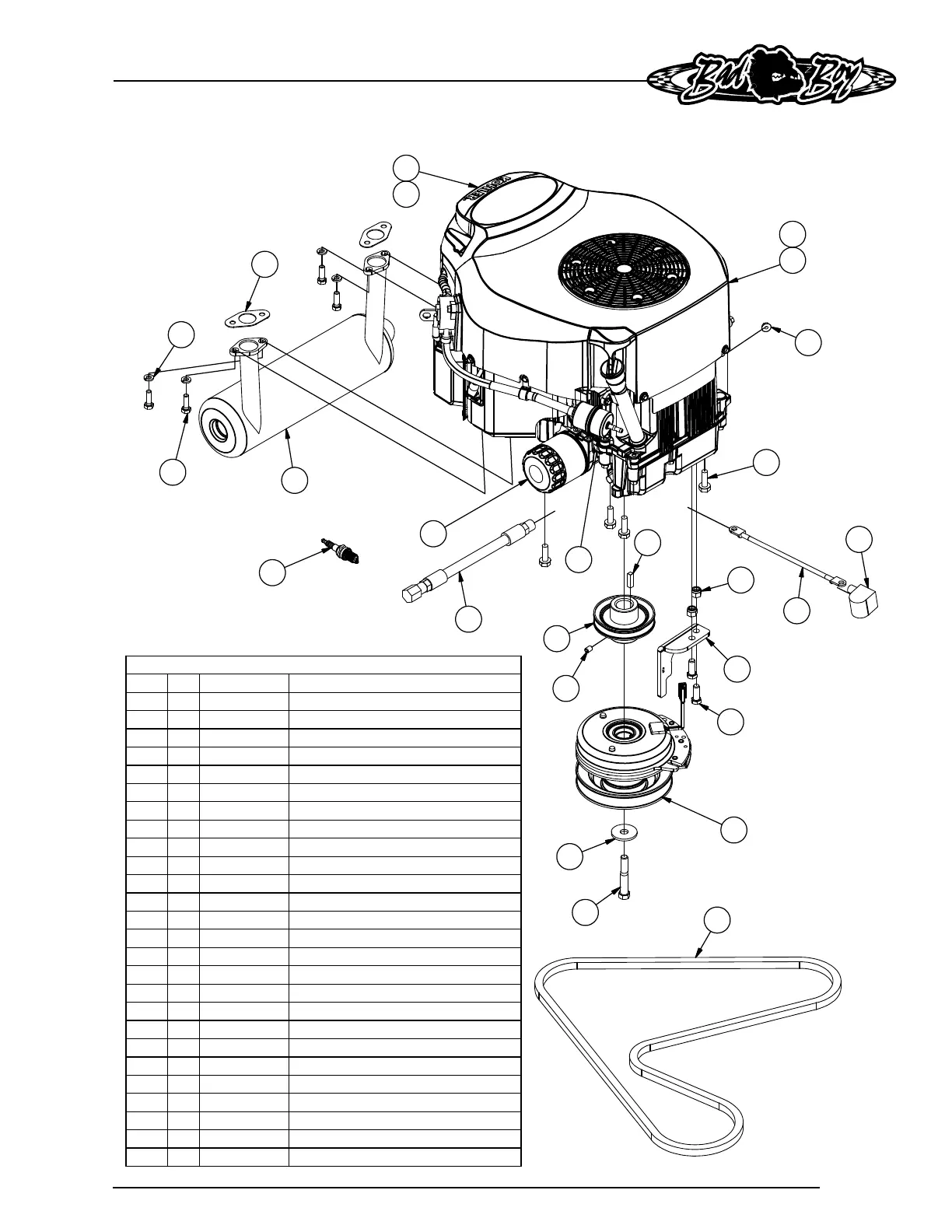

Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
Kohler KT-740
015-2014-00
11
Kohler KT-725
015-2015-00
1
2
Pump Belt
041-6400-00
1
3
3-3/4" Motor Pulley
033-2010-00
14
1/4" x 1" Key
042-6030-001
5
3/8 x 1 1/8 bolt
018-1075-00
4
6
2014 MZ Muffler-725cc Kohler
015-0060-00
17
Ground Cable
064-8061_00
1
8
Black Boot For Ground Cable
103-5400-00
1
9
Warner Clutch A-R Bracket
039-1220-00
1
10
3/8" x 1" Hex Bolt
018-6049-002
11
Oil drain Hose
051-5401-00
1
12
Clutch 2015 Magnum/MZ
070-0050-00113
1/4-20 Hex Flange Nuts Zinc w/Serrations
013-9001-00114
3/8" Set Screw
030-6029-00
115
1/2 Belleville Washer
019-6020-00
1
16
7/16" x 4" Fine Thread Bolt
018-0029-00
117
Exhaust Gasket
015-2751-00218
5/16" Lock Washer
019-8051-00
4
19
Universal Fuel Filter
063-6000-00
1
20
KT-725 & KT-740 Precleaner
063-5002-00
1
21
KT-725 & KT-740 Air Elemet
063-5003-00122
KT-725 & KT-740 Oil Filter
063-5400-00
1
23
3/8 Nylock Nut
013-5041-00224
5/16" x 1" Bolt
018-2007-00
4
25
Spark Plug
015-8000-00226
14
2
1
21
22
18
19
7
12
6
8
9
24
10
11
4
5
15
13
16
17
3
23
20
Kohler KT-725
& KT-740
25
26

Bad Boy MZ MAGNUM Specifications

General

Horsepower	25 HP
Deck Material	7-gauge steel
Spindle Material	Aluminum
Blade Tip Speed	18, 500 fpm
Cutting Width	60 inches
Cutting Height	1.5 - 4.5 inches
Warranty	2-Year Bumper-to-Bumper / 3-Year Engine
