PAGE 26

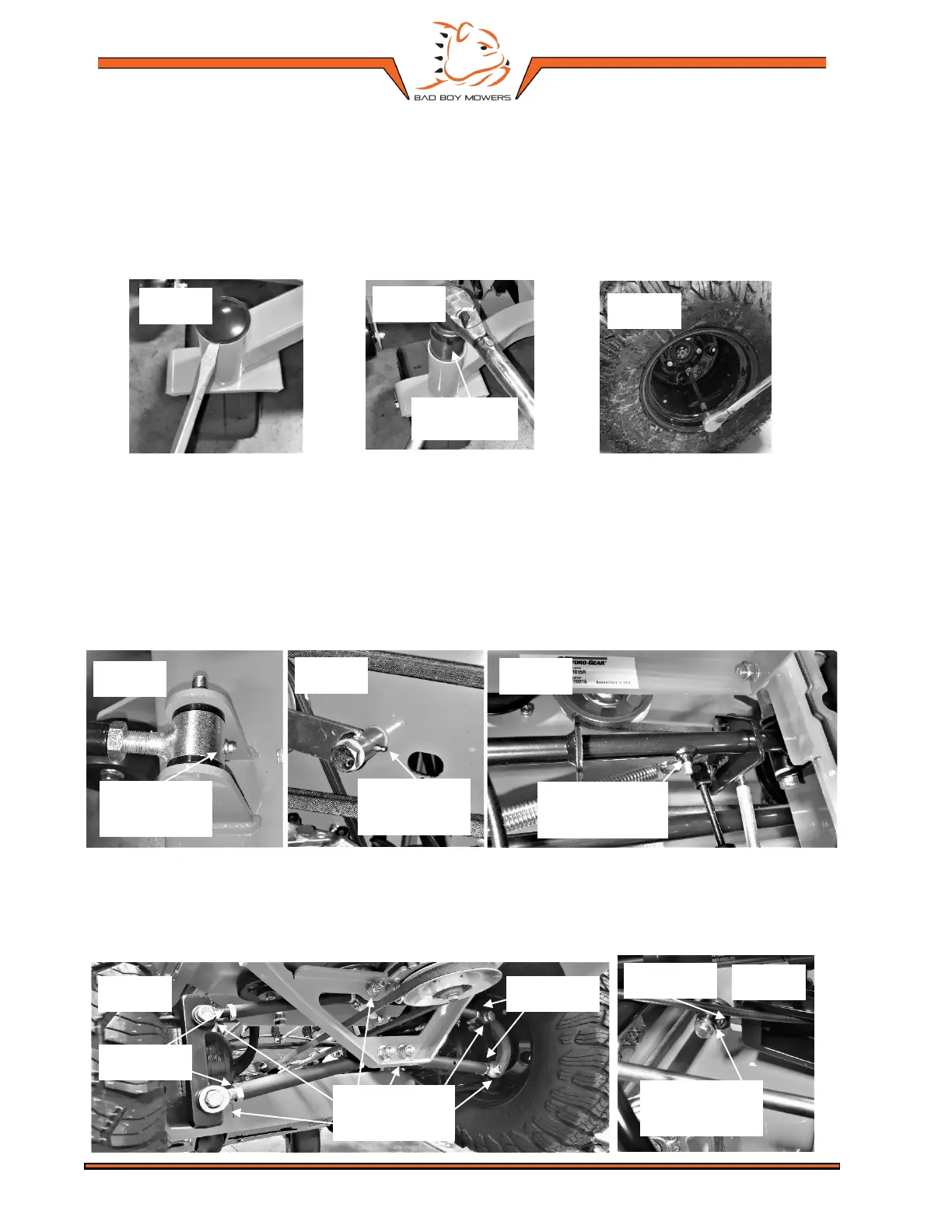

SECTION 15: CASTER AND WHEEL

To access the recessed front fork nuts, remove the dust cap by prying gently using a flat-head screwdriver.

Once cap is removed, a 1 7/16” socket will be needed for top nut. You will need to secure the bolt with a 1 1/2"

wrench. The front fork nuts require a torque of 100ft-lbs. Reapply the dust cap by gently tapping around its

edges. Do NOT hit center of cap.

Torque rear wheel lugs to 65-75ft. lbs. Re-torque at every oil change and before each use.

SECTION 16: GREASE LOCATIONS

There are two grease fittings located on each of the two turnbuckles (4 total).

Grease at every oil change. Fig. 30.

The pump belt tensioner is located under the engine and has a grease fitting at its pivot. Grease at every

engine oil change. Fig. 31.

The control arm actuators have grease fittings located on each tube.

Grease at every engine oil change. Fig. 32.

SECTION 17: REAR SWING ARMS

There are 10 spherical rod ends located in the rear suspension system that do not require adjustment, but do

require periodic inspection. Verify jam nuts are secured.

100 ft.-lbs.

Pump Belt

Grease Zerk

Drive Actuator

Grease Zerk

Turnbuckle

Grease Zerk

Fig. 27

Fig. 28

Fig. 29

Fig. 30

Fig. 31

Fig. 32

Suspension

Rod Ends

Suspension

Rod End

Fig. 30

Fig. 33

Jam Nuts

Bad Boy ROGUE Series User Manual
