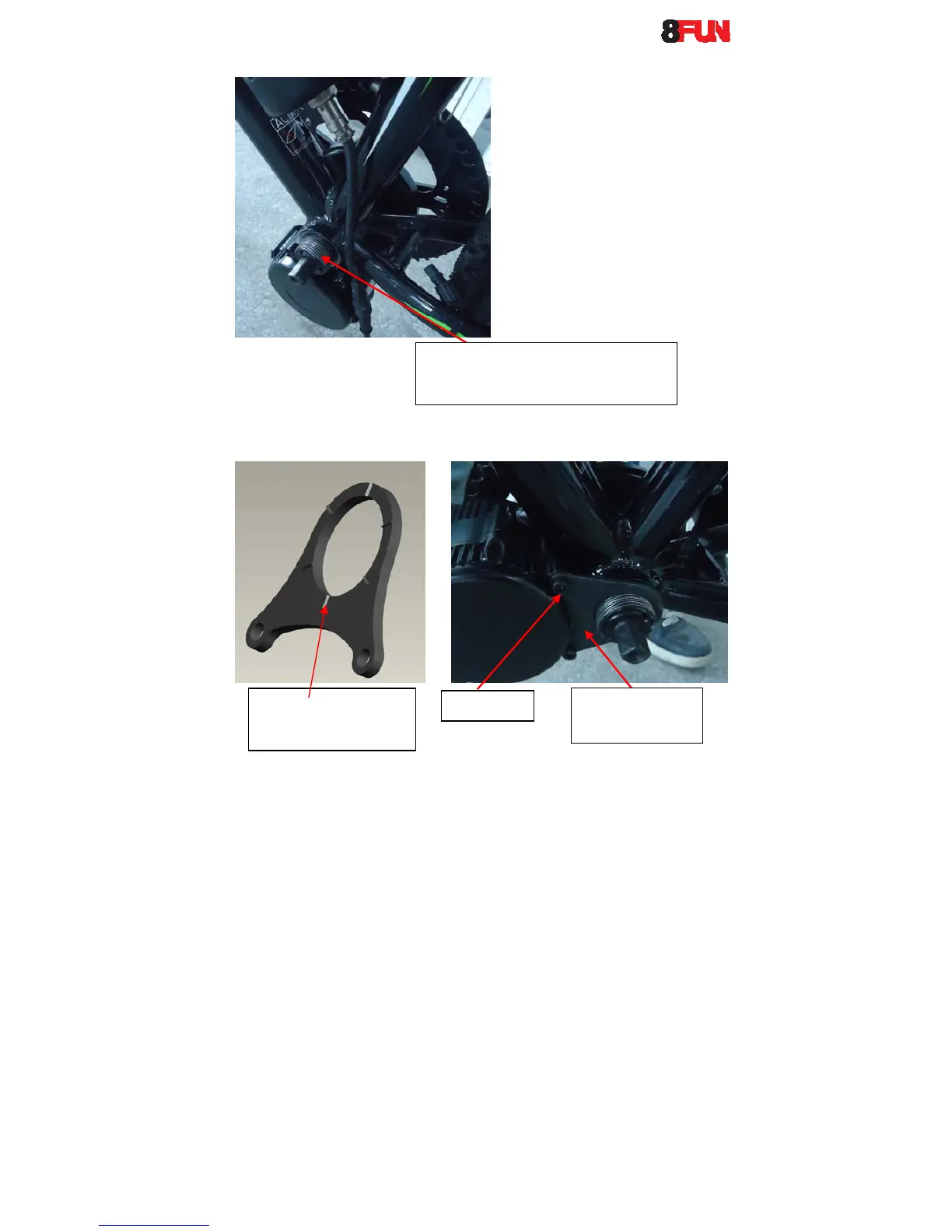

4. The surface with teeth of fixing plate towards inside, then fix the
plate on drive unit with 2pcs M6*10.(see picture 4,picture 5)
Picture 4 Picture 5
the surface with teeth
of fixing plate
ensure thread of axle tube extend
bottom bracket more than 10mm
2xM6 nut
Outside surface
without teeth
