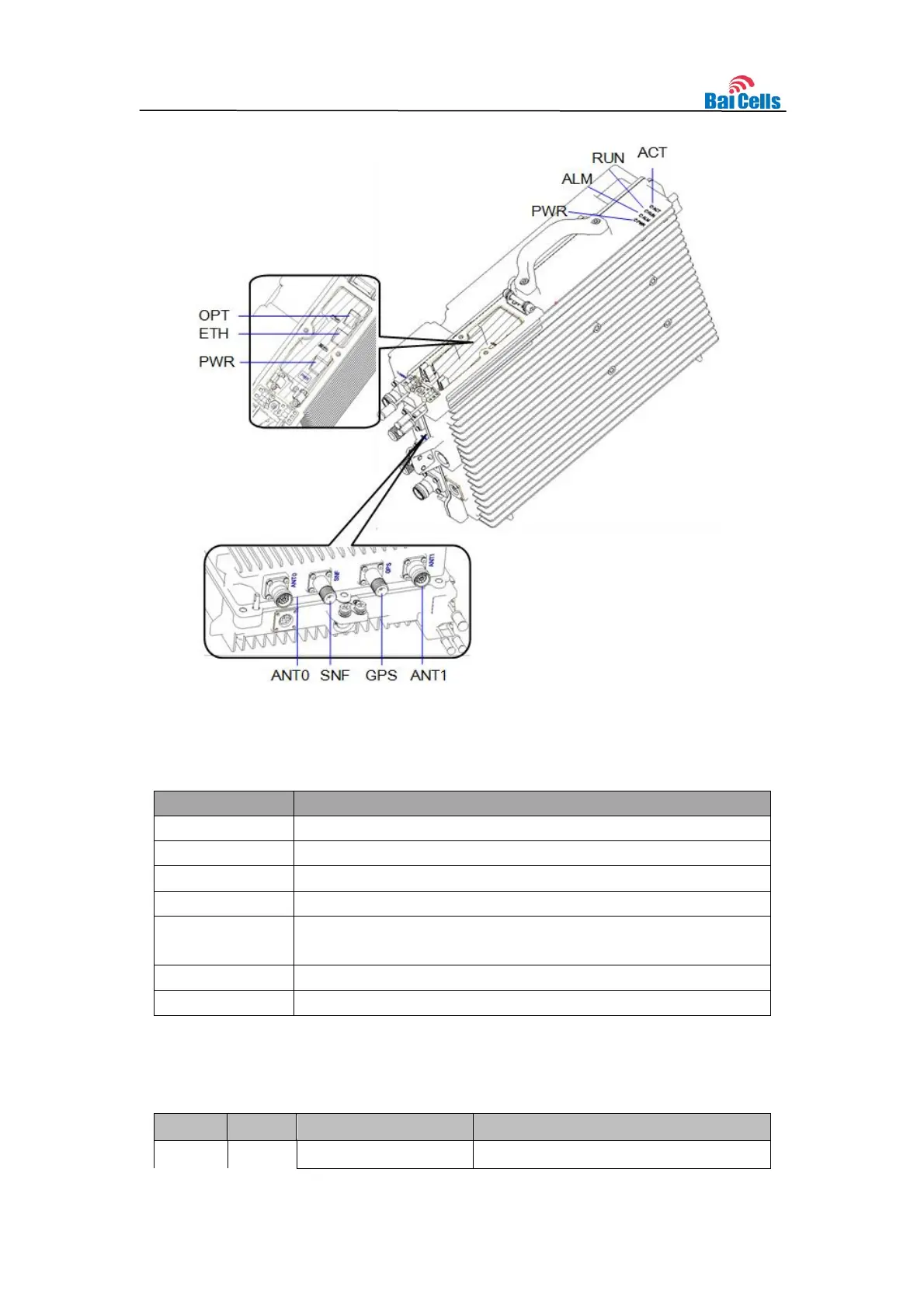

Figure 1-2 Nova-246 FDD Interfaces and Indicators
The Nova-246 FDD interfaces are described in Table 1-1.
Table 1-1 Nova-246 FDD Interface Description
Interface Name
Description
PWR
Power interface: -48V (-57V to -42V) DC
GPS
External GPS antenna, N-female connector.
ANT0
External antenna 0, MIN-DIN female connector.
ANT1
External antenna 1, MIN-DIN female connector.
OPT
Optical interface, connect to external transmission network,
used for data backhaul.
ETH
RJ-45 interface, used for debug or data backhaul.
SNF
Sniffer for network listening, N-female connector.
The Nova-246 FDD interface indicators are described in Table 1-2.
Table 1-2 Nova-246 FDD Interface Indicators
Identity
Color
Status
Description
PWR
Green
Steady On
Power On
