Bai cells Nova-246 - TDD Models; Figure 1-3 Nova-246 TDD Appearance

Nova-246 Outdoor LTE Base Station Installation Guide
4
OFF
No Power Supply
RUN
Green
Steady On
Reserved
Fast flash: 0.125s
on,0.125s off
The board is loading.
Slow flash: 1s on,1s
off
The board is running.
OFF
No power input or board fault
ACT
Green
Steady On
The transmitting channel works
normally
OFF
The transmitting channel works
abnormally
ALM
Red
Steady On
Hardware alarm, e.g. VSWR alarm
OFF
No alarm
1.3.2 TDD Models
The appearance of Nova-246 TDD base station is shown in Figure 1-3.

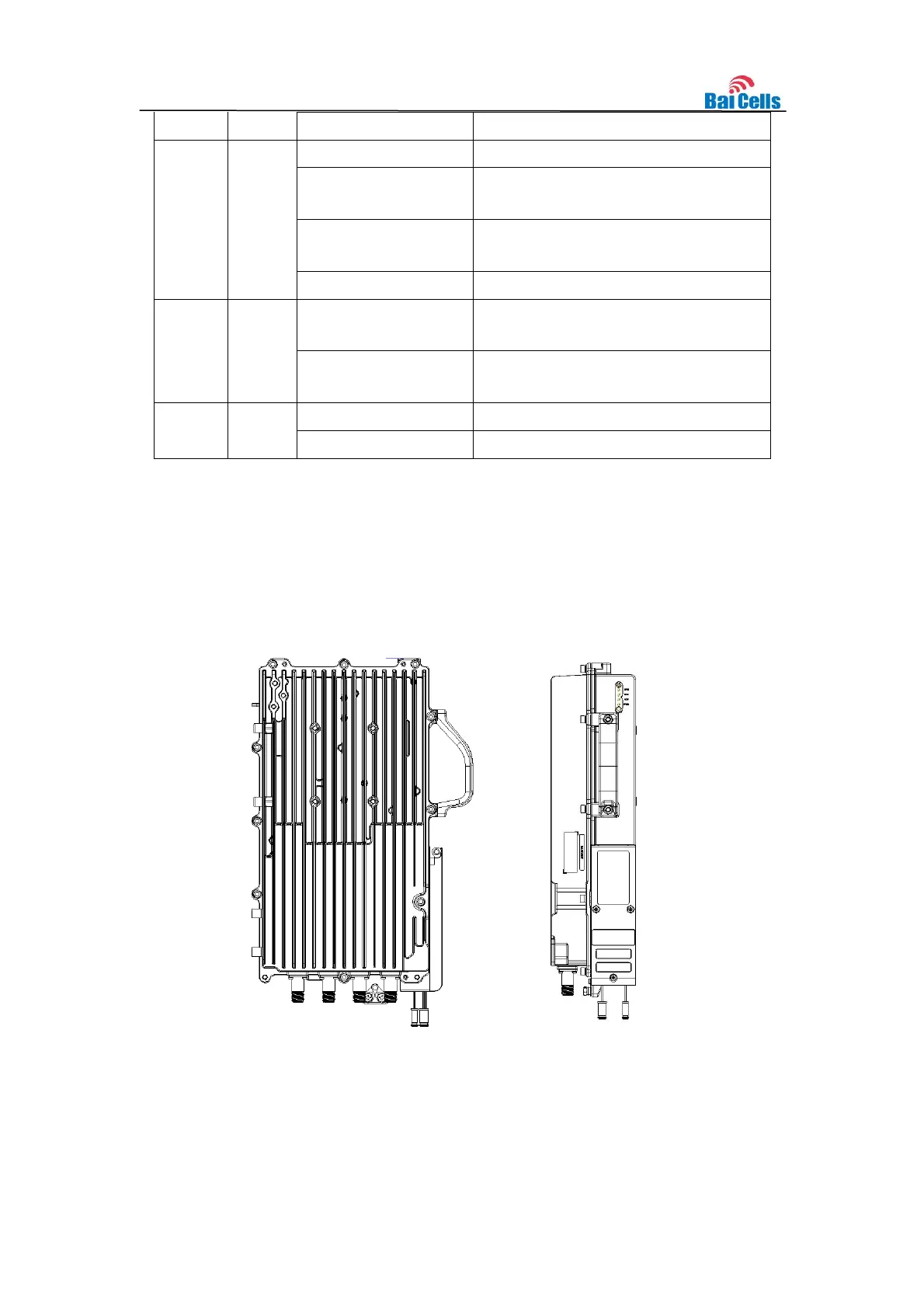

Figure 1-3 Nova-246 TDD Appearance
The interfaces and indicators of Nova-246 TDD base station are shown in Figure 1-4 and
Figure 1-5.
