No major blocking from buildings in the vicinity. Make sure the space atop is at least
45 degrees unblocked by any buildings.
Avoid installing the GPS antenna in the vicinity of any other transmitting and
receiving devices, to avoid interference.
The GPS antenna should be installed within 45 degrees to the lightning rod.
The GPS antenna system includes an antenna and a connector. The two parts should be
assembled according to Figure 2-1.

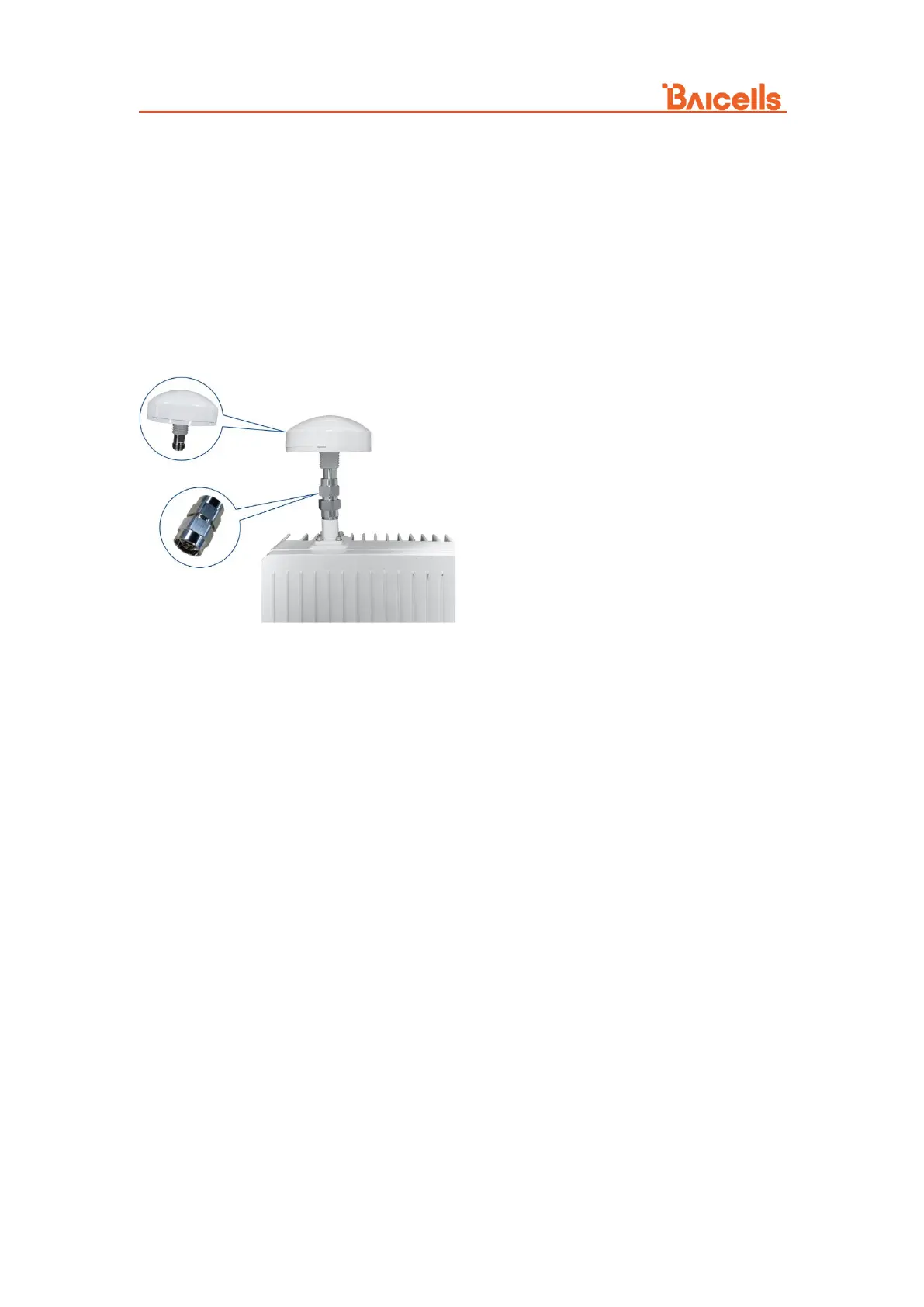

Figure 2-1 Assemble GPS Antenna
After assembling the GPS antenna, the connector must be waterproofed by all-weather
electrical tape and mastic tape.
Install on Pole 2.5
Check to ensure the diameter of the pole is in the range of 1.6 inches to 2.8 inches
(40mm to 70 mm). The position of the eNB on the pole should be at least 47 inches (120
cm) in height.
The brackets have been pre-assembled in manufacturing before packing. It includes two
parts, one is pre-assembled on the back of device. The other is for pole mounting or wall
mounting, as shown in Figure 2-2.
