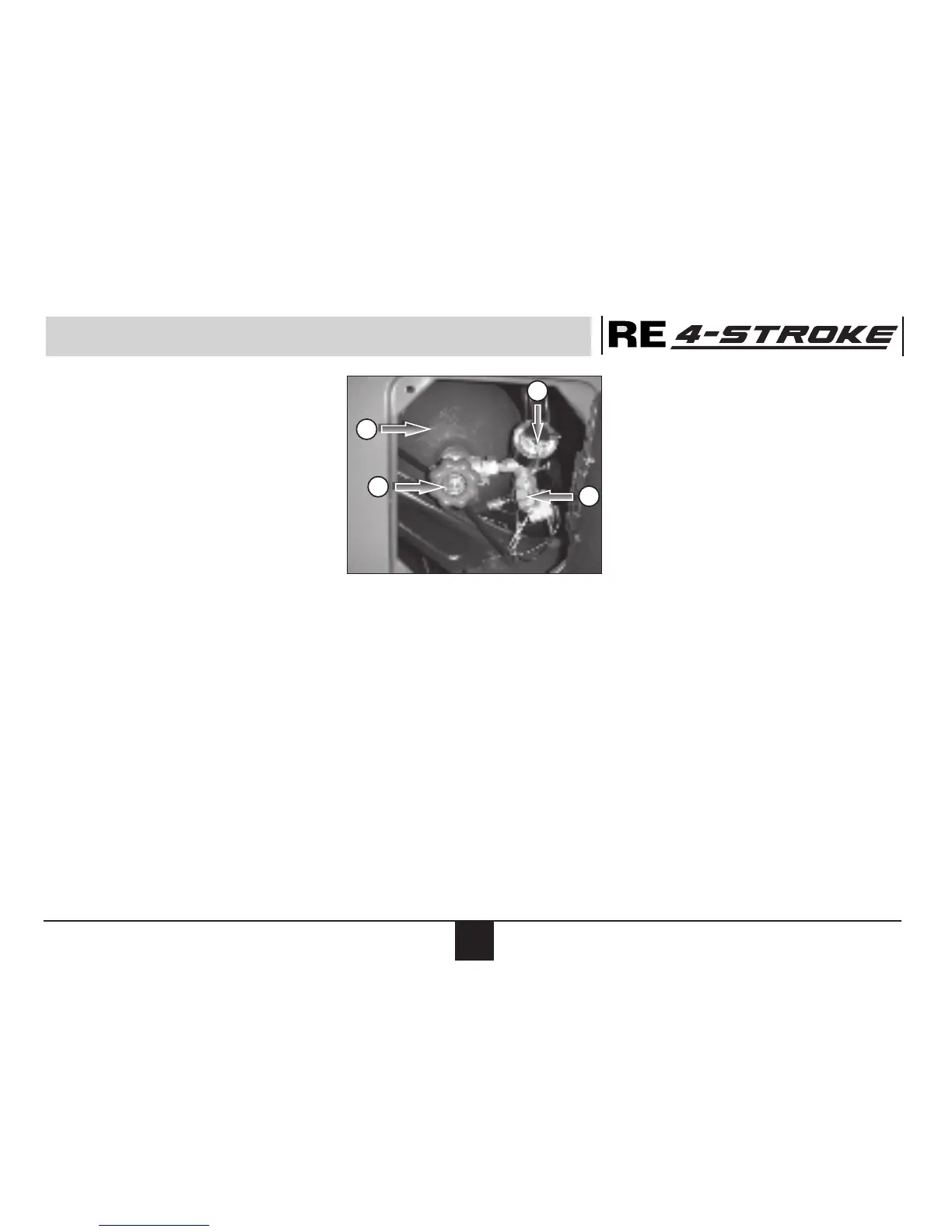

A. CNG Cylinder : It is mounted below passenger seat.
B. Pressure Gauge : It is mounted on remote filling valve which indicates pressure inside the cylinder.
C. Dust Plug : It is mounted on remote filling valve and is used for refilling the gas. Please ensure that
dust plug is properly fitted. Ensure that after removing dust plug all electrical supply is in “OFF”
condition.
D. Shut Off Valve : It controls (ON-OFF) supply of CNG gas as indicated. It should be closed, while
carrying out servicing, maintenance and when vehicle is parked overnight. Also in case of any leakage,
Shut off valve should be closed immediately.
