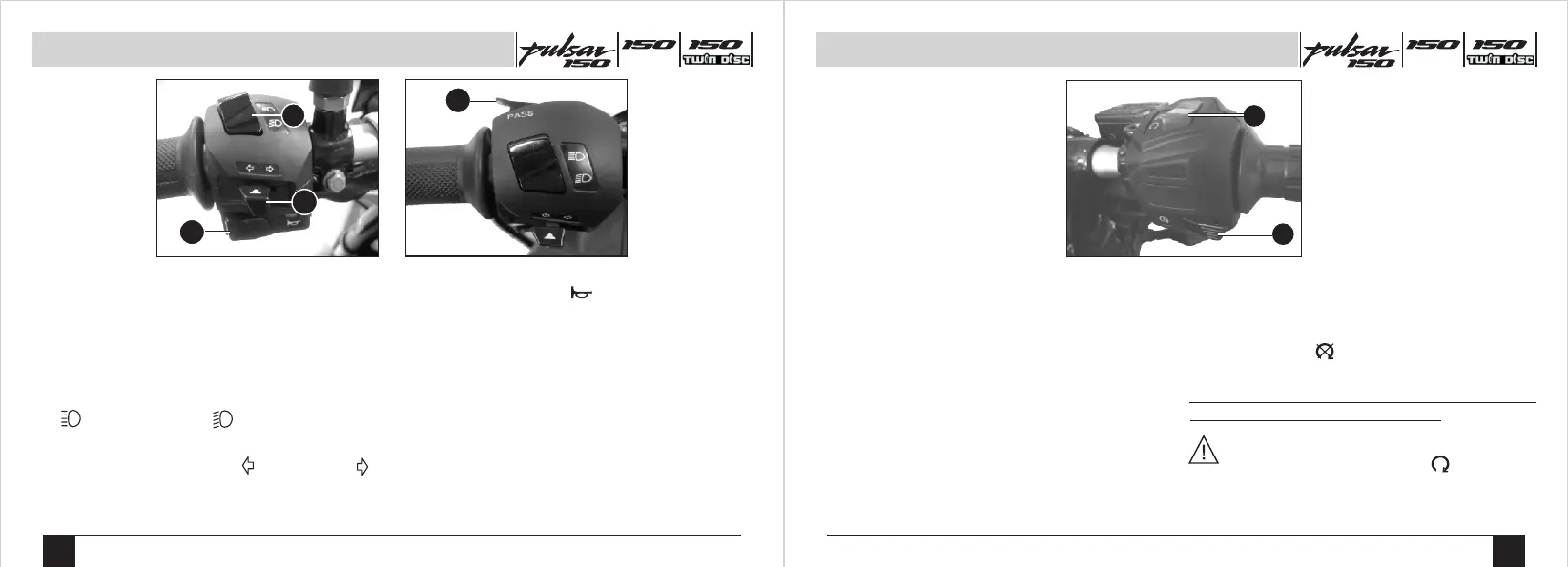

Location of Parts
Right Handle Bar Switches
E. Starter Button :
Starter button operates the electric starter
when clutch lever is depressed with
transmission in any gear. It is recommended
to start the engine with the transmission in
neutral.
F. Engine Kill Switch :
The engine kill switch is for emergency use.
In an emergency, move the engine kill switch
to the ‘OFF’ ( ) position.
Speedometer display will work when both Ignition
switch & kill switch are in ‘ON’ position.
CAUTION : While starting ensure that
engine kill switch is in ON ( ) position.
Engine will not start if the kill switch is
in OFF position
E
F
Classic
C. Horn Button : ( ) Press button for
sounding horn.
D. Pass Switch : Press the switch to flash the
head light. It is used to give signal to
vehicles coming from opposite side while
overtaking.
Left Handle Bar Switches
A. Dipper Switch : When headlight is ON, High
or Low beam can be selected with the
dipper switch. Hi beam indicator light
located on Speedo console will light up
when high beam is selected.
: High Beam : Low beam
B. Turn Signal Switch : When the turn signal
knob is turned to Left ( ) or Right ( )
respective indicator will start blinking, to stop
blinking push the knob in & release.
D
A
B
C
Location of Parts
To Next Page
