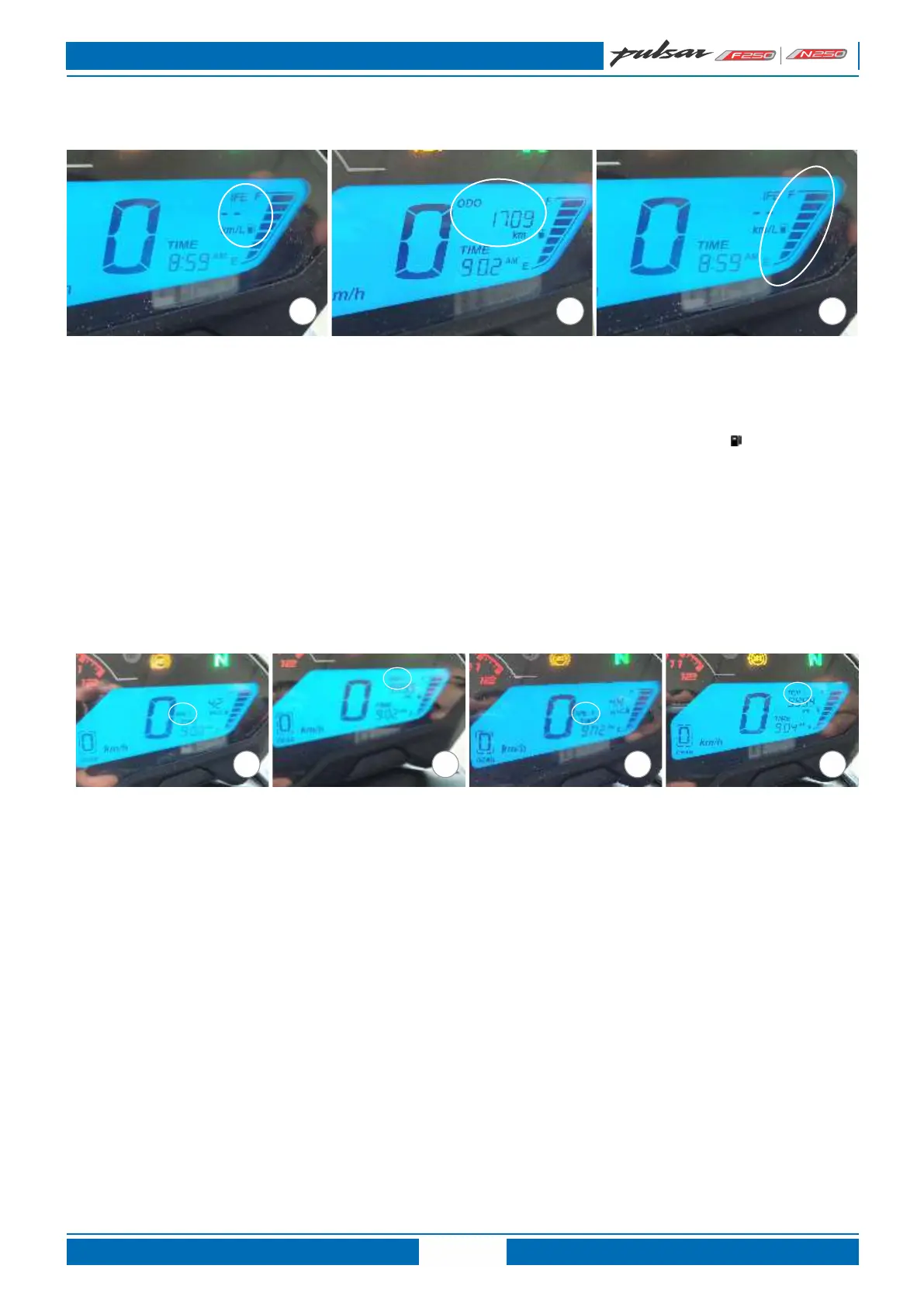

Ignition switch is ON & Set push button not pressed. Following display will be shown by digital speedometer.
1. IFE (Instantaneous Fuel economy): This will indicate
fuel economy in km/L. at any given time. Value will be
displayed only when vehicle speed & Engine RPM is
more than zero.
If vehicle speed is zero then IFE will be displayed
“--km/L”
2. ODO: The Odometer shows the total distance that
the vehicle has travelled.
3. Fuel Level Indicator: Fuel level is shown by digital
LCD bars with (E) empty, (F) full & ( ) fuel tank LCD
symbol.
Low fuel level icon blinks if number of bars on the fuel
gauge are less than 2 bars.
Note:
IFE (Instantaneous fuel economy)/AFE (Average fuel
economy)/DTE (Distance to empty) readings are indicative
& may vary due to driving and road conditions.
1
2
3
Procedure to set AFE1 & TRIP1:
Ignition switch is ON & Set push button pressed for
less than 1 sec. - TRIP1 mode gets selected &
following display will be shown by digital speedometer
Procedure to set AFE2 & TRIP2:
Ignition switch is ON & Set push button pressed for
less than 1 sec. - TRIP2 mode gets selected &
following display will be shown by digital speedometer
1. AFE1 (Average Fuel economy1): This will indicate
the average fuel economy in km/L in TRIP1 mode.
2. TRIP1: The Trip meter shows the total distance
that the vehicle has travelled in TRIP1 mode. If
TRIP1 is reset, average fuel economy (AFE1) will
reset.
3. AFE2 (Average Fuel economy2): This will indicate
the average fuel economy in km/L. in TRIP2 mode.
4. TRIP2: The Trip meter shows the total distance that
the vehicle has travelled in TRIP2 mode. If TRIP2 is
reset, average fuel economy (AFE2) will reset.
Note: AFE will be updated every 60 sec. AFE will be reset if corresponding TRIP1 or TRIP 2 is reset or battery disconnected.
1
2
43
Details - AFE 1, TRIP 1 / AFE 2, TRIP 2
SPEEDOMETER INFORMATION
