Service Support - M/C
Service Station Manual

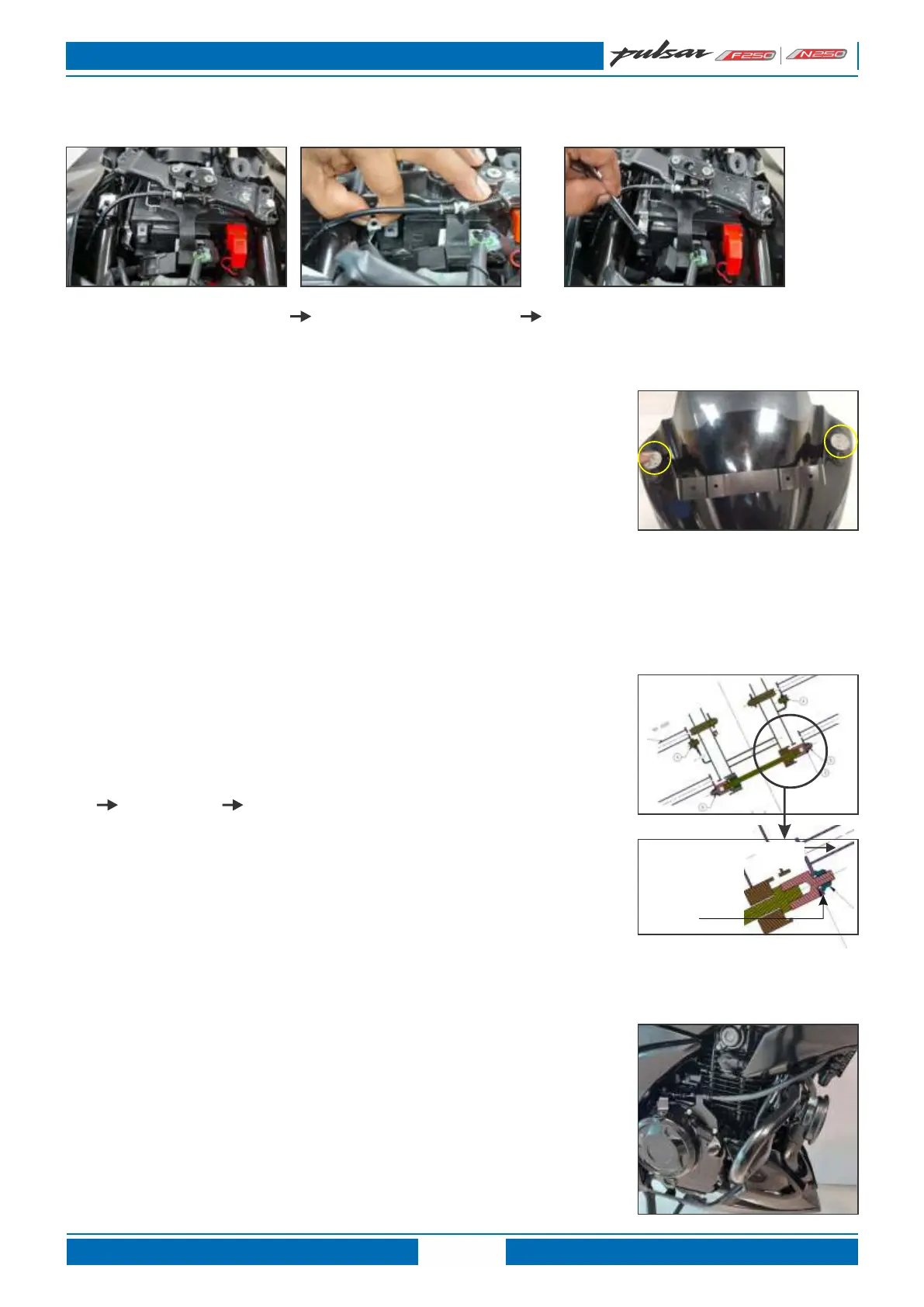

Battery –ve terminal fitment. (For more details, Refer Battery replacement SOP)
Bracket latch seat removal
Nut fitment direction
Battery terminal fitment
Mirror fitment for Pulsar F250 during PDI :
• Apply limaplex(HTX 3) grease(Refer spare parts catalogue for part number) as
shown in photograph before mirror fitment on vehicle.
For Mirror fitment SOP, refer “Headlamp / Speedometer / Harness speedometer /
Flap speedometer / Structure speedometer / Windshield / Fairing structure
Replacement” SOP given in electrical section of Pulsar F250 Service station manual available on E-SSM
Leg Guard fitment during PDI
Washer to be fitted on LH Leg guard bottom mounting only.
Sequence seen from outer side:
Nut Leg guard Washer
Importance of washer :
To avoid leg guard fitment on vehicle in stressed condition, this washer is to
be fitted.
Torque value
Leg guard mounting Top bolt : 2 – 2.2 Kgf-m
Leg guard mounting bottom nut : 2 – 2.2 Kgf-m
Washer-KDAB0816
to be fitted
on LH Bottom
mounting
Nut
Leg
guard
Clutch cable routing while Leg guard Fitment
Route the clutch cable as shown in photograph. Clutch is to be routed
above leg guard.
